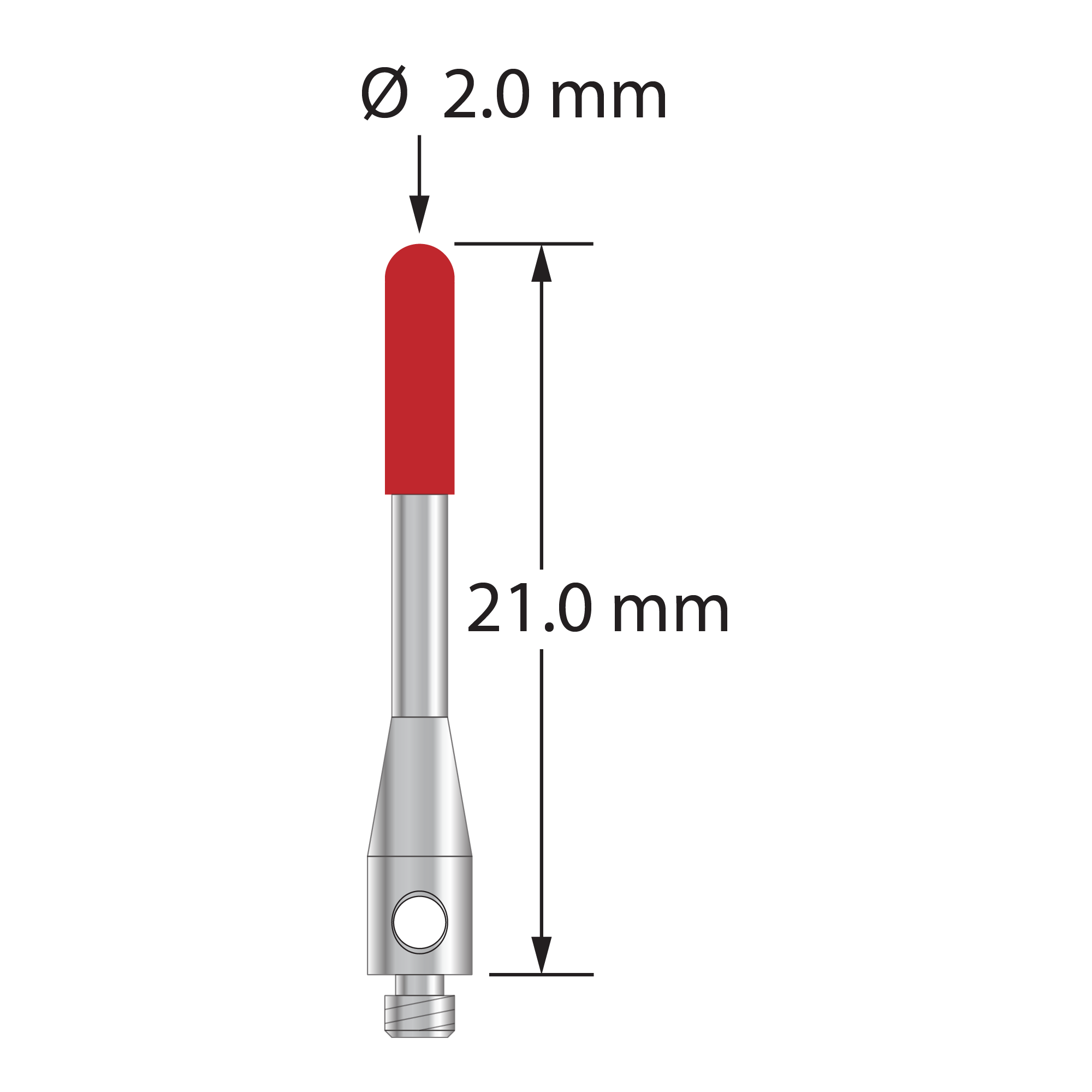

M2 stylus with 2.0 mm diameter ruby cylinder and stainless steel base and stem. Overall length is 21.0 mm. Stylus weight is 0.49 gram. Compare to Renishaw A-5000-7812, Mitutoyo K651032, and Zeiss 602030-8100-000. Cylinder styli are used for edge probing on stampings or sheet metal parts. They are not suitable for high accuracy work because the form of a cylinder is not as precise as a sphere. Please contact us with any questions about calibrating or using cylinder styli.

TM2-2021-B

Name: TM2-2021-B
Brand: Q-Mark Manufacturing Inc.
Price: 108.0 USD
Availability: InStock

$108.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

M2 stylus with 2.0 mm diameter ruby cylinder and stainless steel base. Overall length is 21.0 mm. Stylus weight is 0.49 gram. Compare to Renishaw A-5000-7812, Zeiss 602030-8100-000, Hexagon 03969292, and Mitutoyo K651032.

Cylinder styli are used for edge probing on stampings or sheet metal parts. They are not suitable for high accuracy work because the form of a cylinder is not as precise as a sphere. Please contact us with any questions about calibrating or using cylinder styli.

Dimensions

ball diameter: 2.0

base diameter: 3.0

length 1: 21.0

length 2: 7.2

stem diameter: 1.6

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Stainless Steel
