TM2-1520.75-S-SN

Name: TM2-1520.75-S-SN
Brand: Q-Mark Manufacturing Inc.
Price: 52.0 USD
Availability: InStock

$52.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

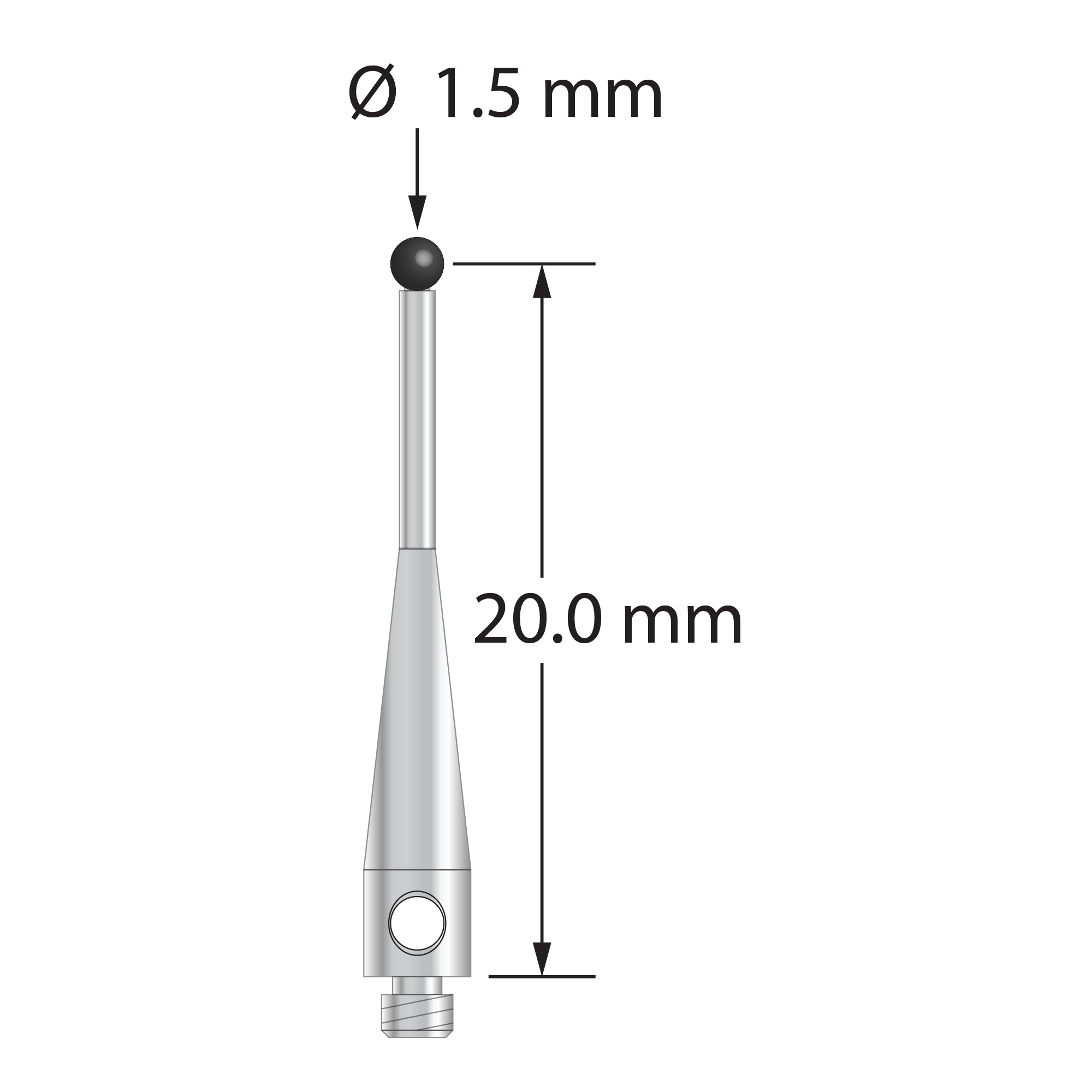

M2 stylus with 1.5 mm diameter silicon nitride ball and stainless steel base and stem. Base diameter is 3.0 mm. Stem diameter is 0.89 mm. Stylus length to ball center is 20.0 mm. Stylus weight is 0.44 gram.

Dimensions

ball diameter: 1.5

base diameter: 3.0

length 1: 20.75

length 2: 8.75

stem diameter: 1.0

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Stainless Steel
