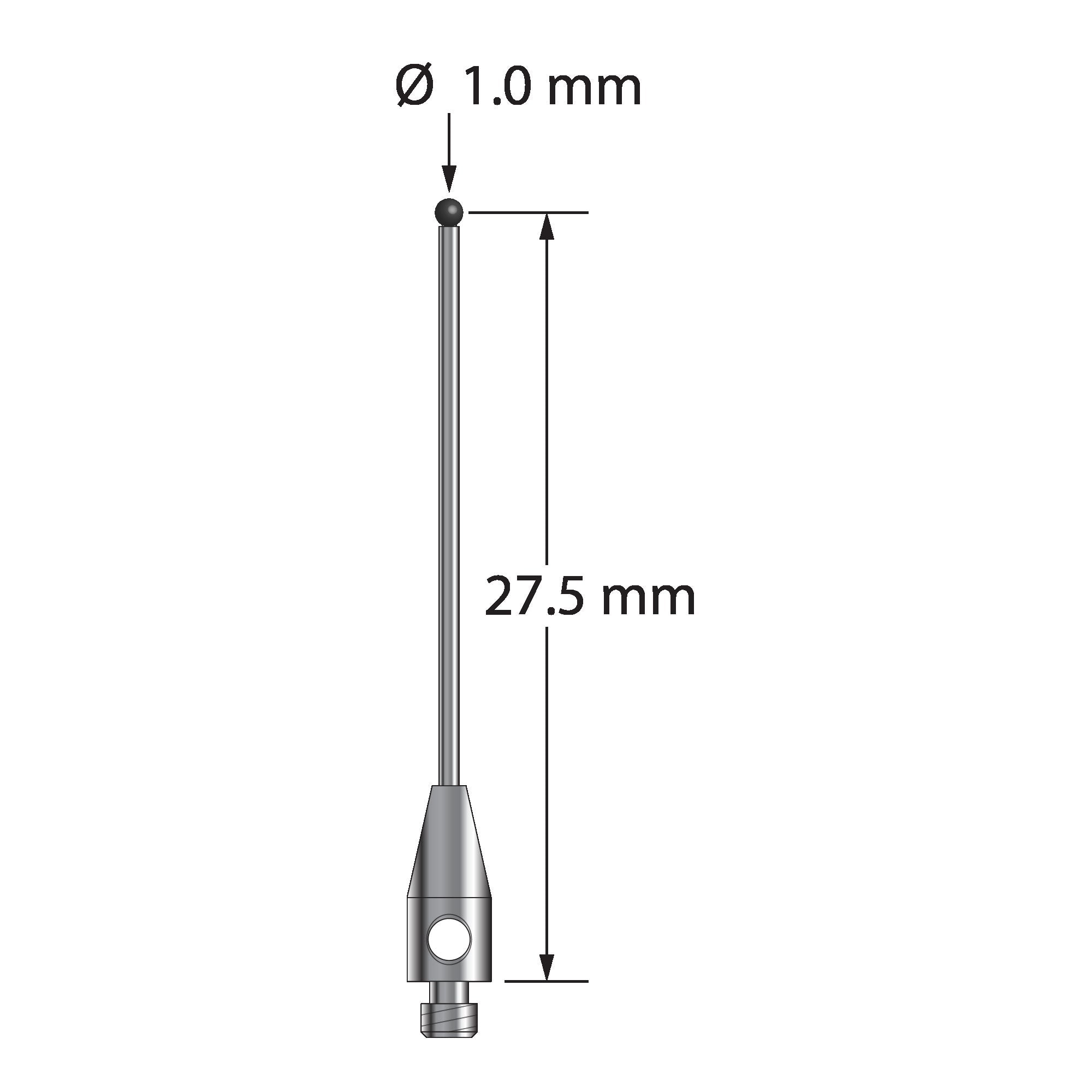

M2 stylus with 1.0 mm diameter silicon nitride ball, 0.7 mm diameter carbide stem, and 3.0 mm diameter x 7.0 mm long stainless steel base. Stylus length is 27.5 mm to ball center. Stylus weight is 0.41 gram.

TM2-1028-DS.7-SN

Name: TM2-1028-DS.7-SN
Brand: Q-Mark Manufacturing Inc.
Price: 85.0 USD
Availability: InStock

$85.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

M2 stylus with 1.0 mm diameter silicon nitride ball, 0.7 mm diameter carbide stem, and 3.0 mm diameter x 7.0 mm long stainless steel base. Stylus length is 27.5 mm to ball center. Stylus weight is 0.41 gram. Compare to Renishaw A-5004-2022.

Dimensions

ball diameter: 1.0

base diameter: 3.0

length 1: 28.0

length 2: 21.0

stem diameter: 0.7

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Carbide
