TM2-1025-Z

$85.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

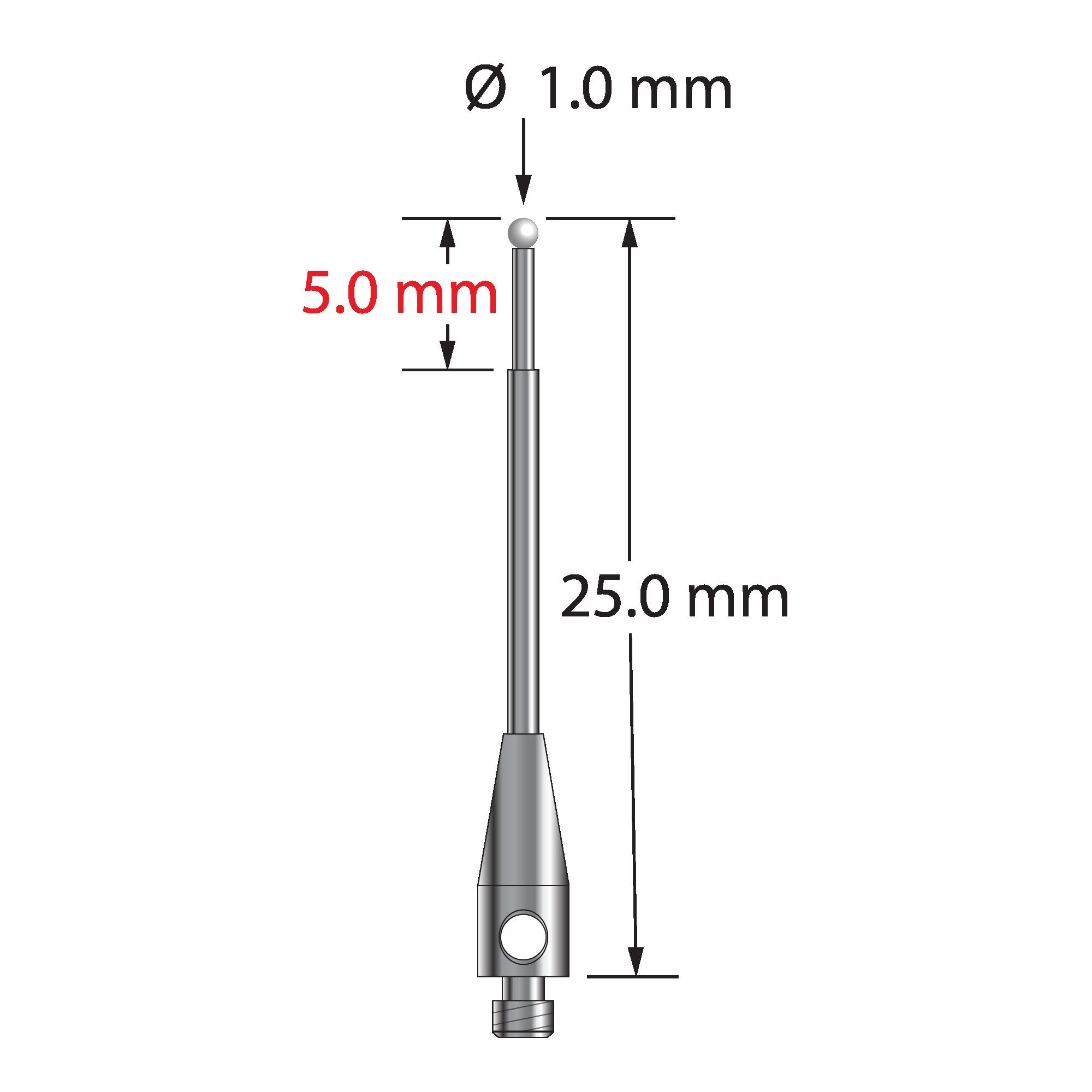

M2 stylus with 1.0 mm diameter zirconia ball, stepped carbide stem, and 3.0 mm diameter x 8.0 mm long stainless steel base. Minor stem diameter is 0.7 mm, major diameter is 1.0 mm. Overall stylus length is 25.0 mm. Stylus weight is 0.47 gram.

Dimensions

ball diameter: 1.0
base diameter: 3.0
length 1: 25.0
length 2: 17.0
length 3: 5.0
stem diameter: 1.0
stem step diameter: 0.7

Materials

ball material: Zirconia
base material: Stainless Steel
stem material: Carbide
