TM2-1020-Z

$85.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

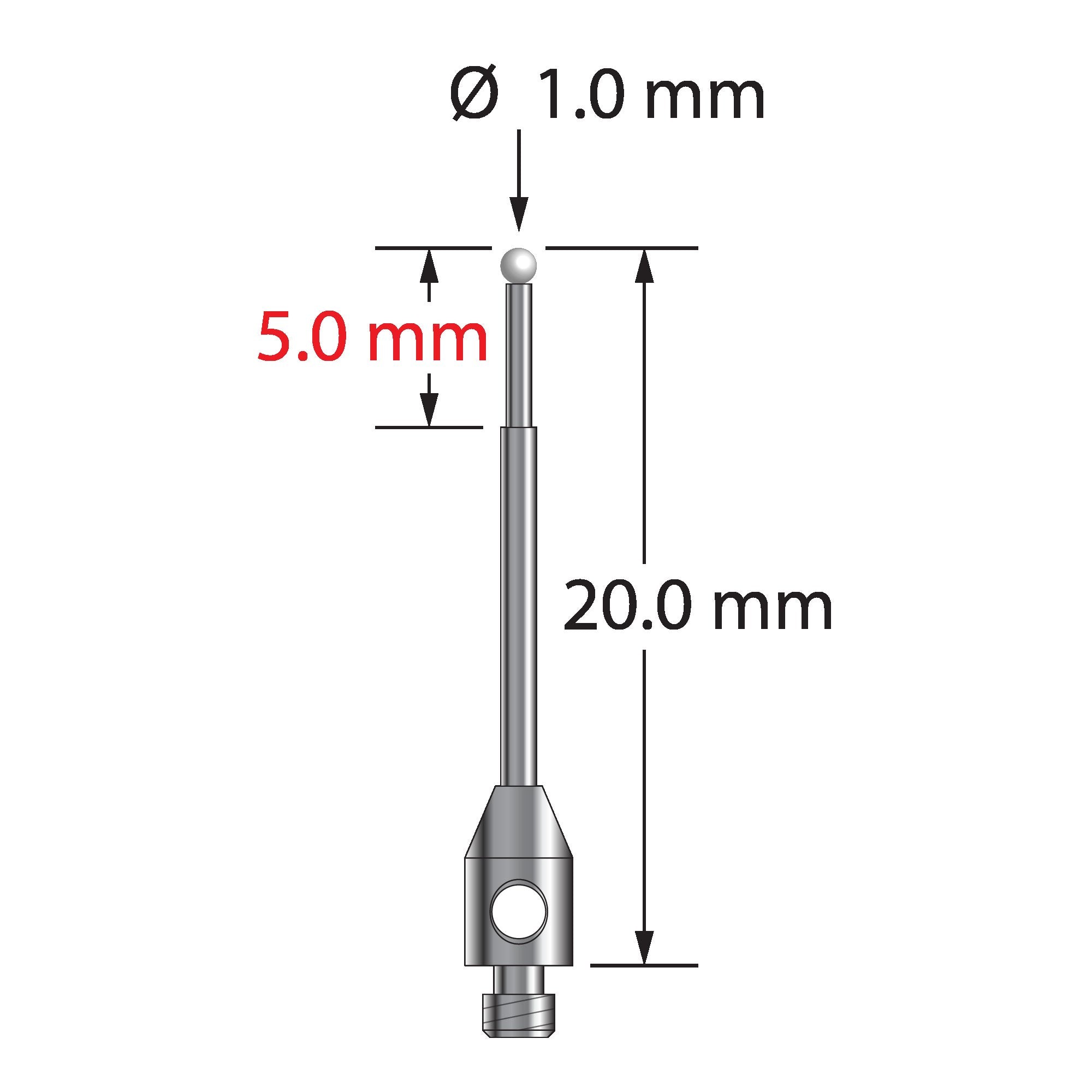

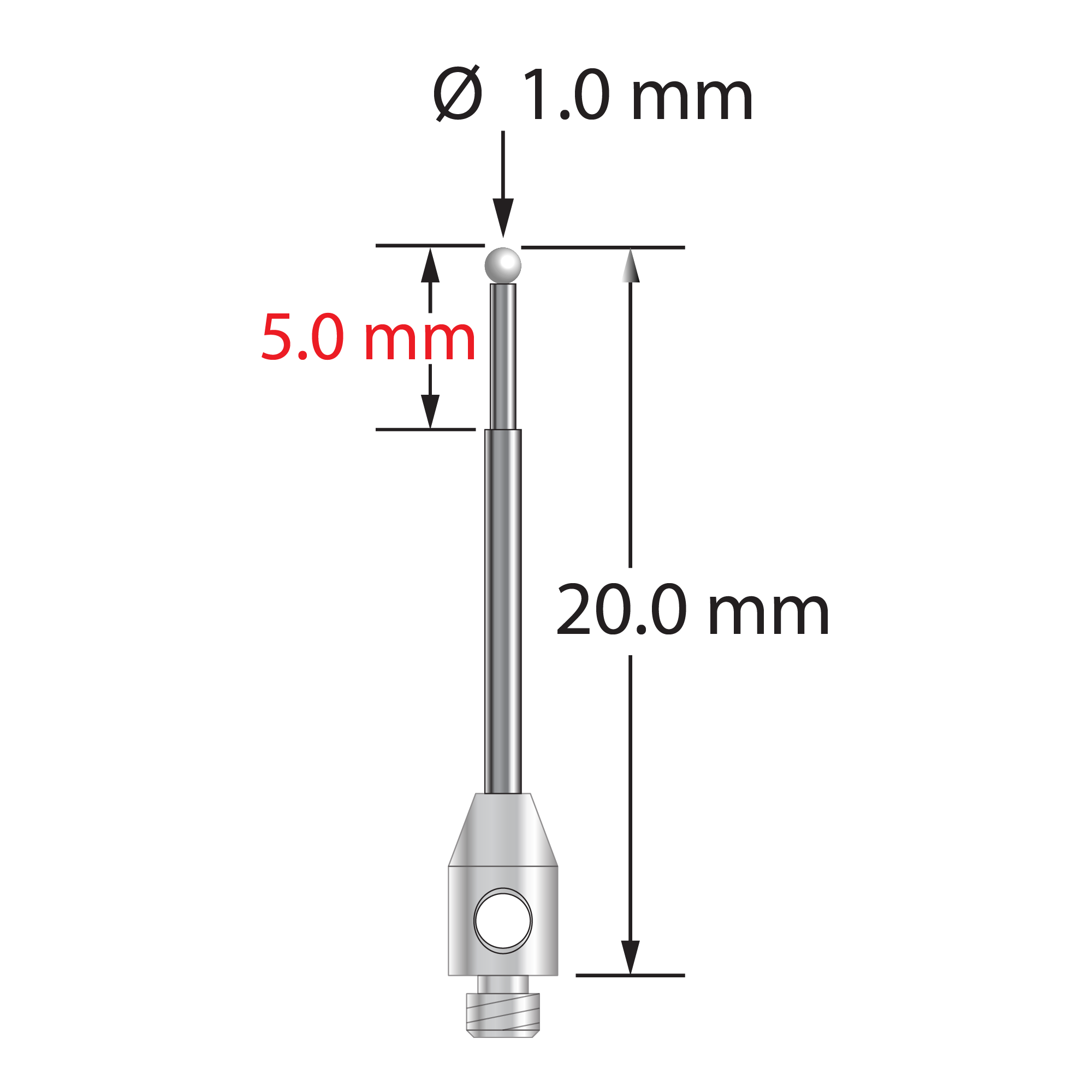

M2 stylus with 1.0 mm diameter zirconia ball, stepped carbide stem, and 3.0 mm diameter x 5.0 mm long stainless steel base.   Major stem diameter is 1.0 mm, minor stem diameter is 0.7 mm.  Overall stylus length is 20.0 mm.  Stylus weight is 0.41 gram.

Dimensions

ball diameter: 1.0
base diameter: 3.0
length 1: 20.0
length 2: 15.0
length 3: 5.0
stem diameter: 1.0
stem step diameter: 0.7

Materials

ball material: Zirconia
base material: Stainless Steel
stem material: Carbide
