TM2-1020-06-SN

$57.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

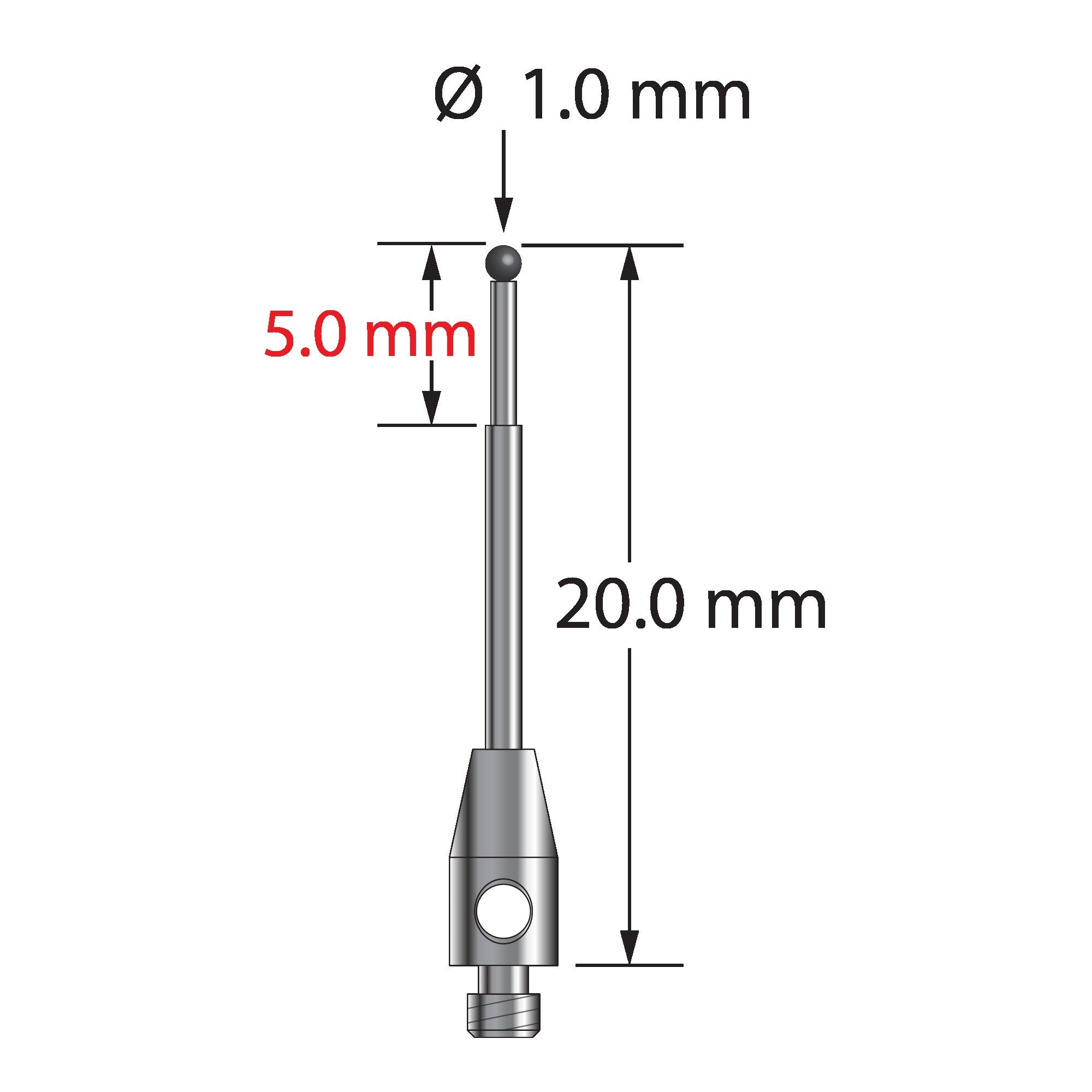

M2 stylus with 1.0 mm diameter silicon nitride ball, stepped carbide stem, and 3.0 mm diameter x 6.0 mm long stainless steel base. Major stem diameter is 1.0 mm, minor stem diameter is 0.8 mm. Overall stylus length is 20.0 mm. Stylus weight is 0.41 gram. Compare to Zeiss 626102-0045-020.

Dimensions

ball diameter: 1.0
base diameter: 3.0
length 1: 20.0
length 2: 14.0
length 3: 5.0
stem diameter: 1.0
stem step diameter: 0.8

Materials

ball material: Silicon Nitride
base material: Stainless Steel
stem material: Carbide
