TM2-1015-BC

Name: TM2-1015-BC
Brand: Q-Mark Manufacturing Inc.
Price: 125.0 USD
Availability: InStock

$125.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

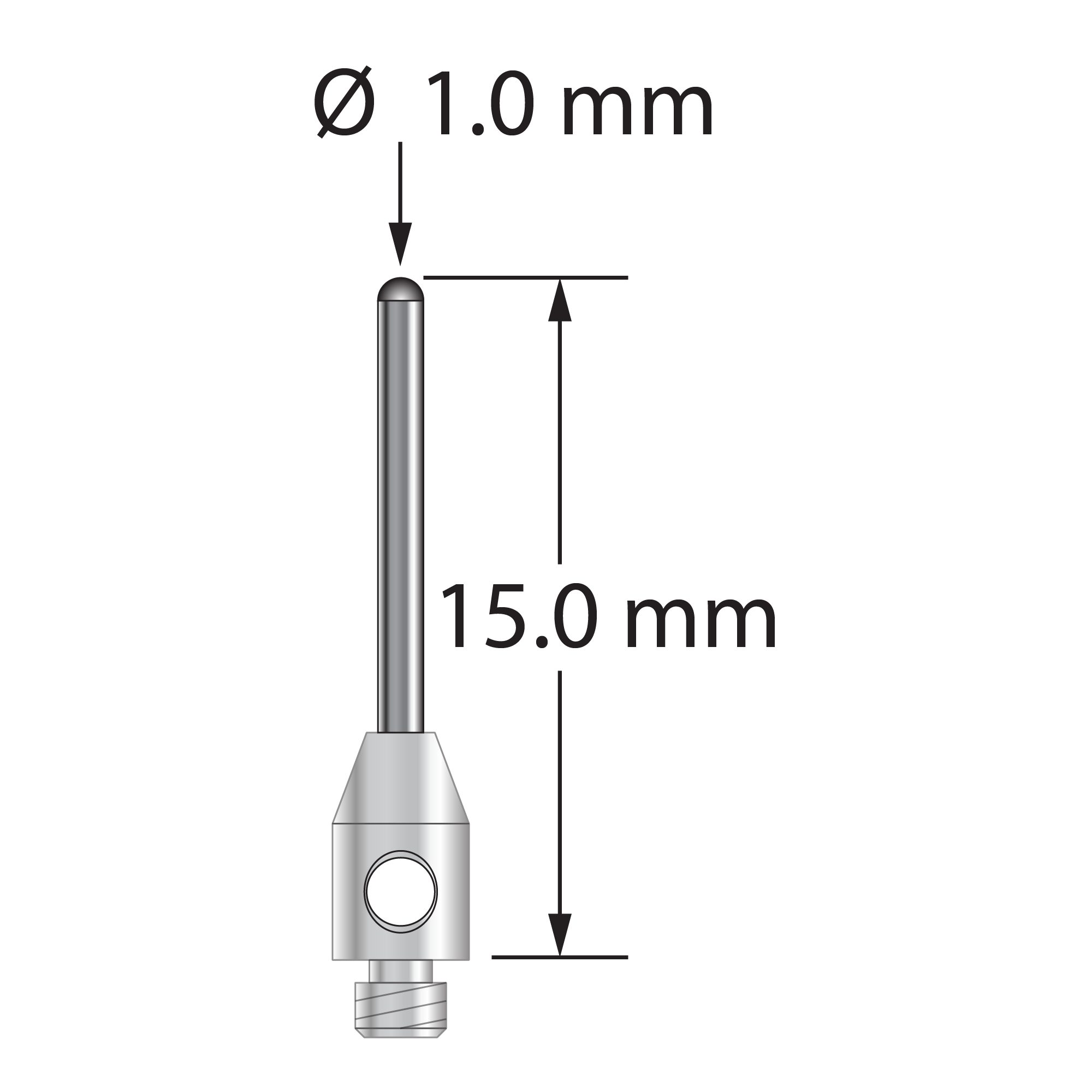

M2 stylus with 1.0 mm diameter carbide cylinder. Stainless steel base, 3.0 mm diameter x 5.0 mm long. Overall stylus length is 15.0 mm. Stylus weight is 0.34 gram.

Cylinder styli are used for edge probing on stampings or sheet metal parts. They are not suitable for high accuracy work because the form of a cylinder is not as precise as a sphere. Please contact us with any questions about calibrating or using cylinder styli.

Dimensions

ball diameter: 1.0

base diameter: 3.0

length 1: 15.0

length 2: 10.0

stem diameter: 1.0

Materials

ball material: Carbide

base material: Stainless Steel

stem material: Carbide
