TM2-1015.5

Name: TM2-1015.5
Brand: Q-Mark Manufacturing Inc.
Price: 55.0 USD
Availability: InStock

$55.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

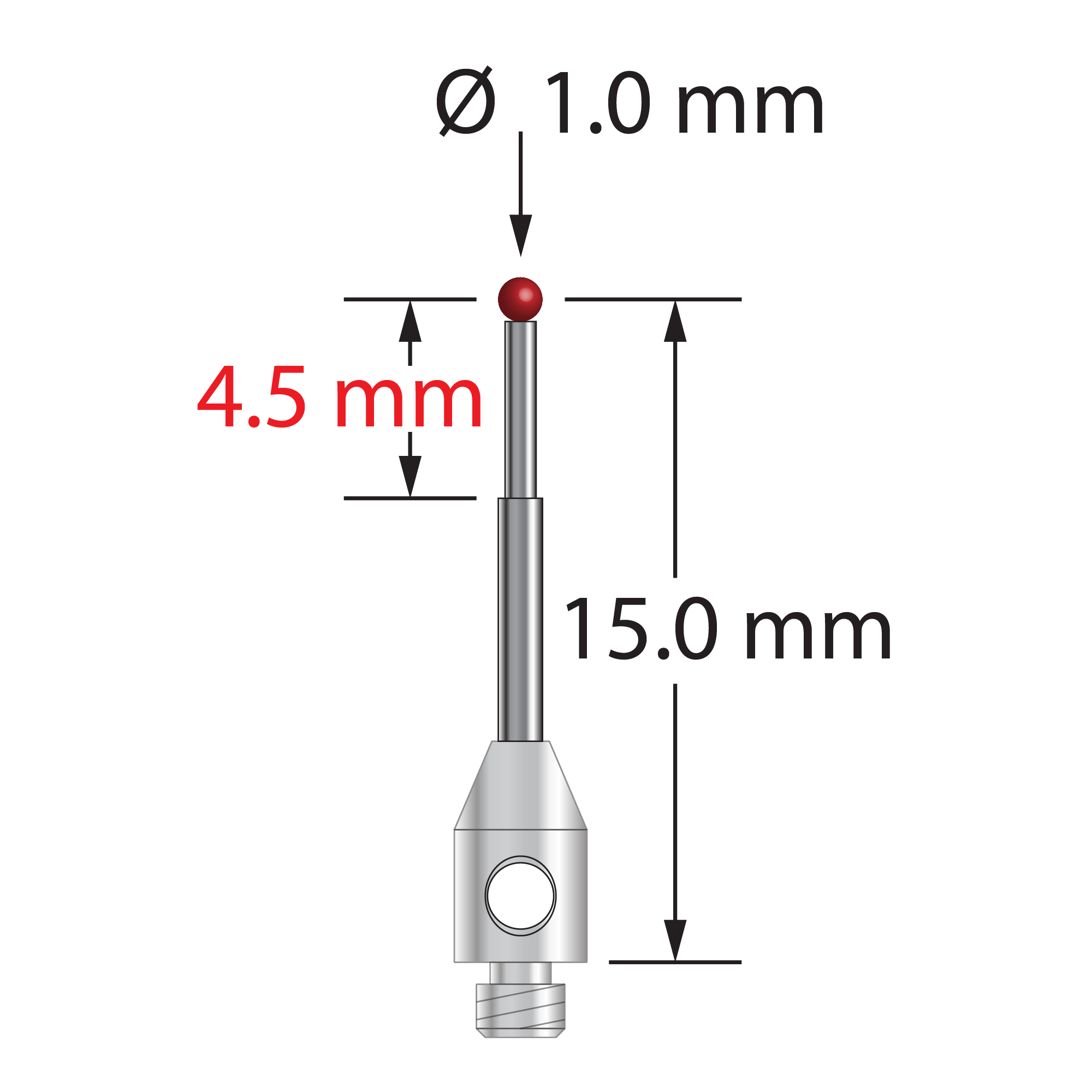

M2 stylus with 1.0 mm ruby ball, stepped carbide stem, and 3.0 mm diameter x 5.0 mm long stainless steel base. Minor stem diameter is 0.7 mm, major stem diameter is 1.0 mm. Stylus length to ball center is 15.0 mm. Stylus weight is 0.32 gram. Compare to Mitutoyo K651246.

Dimensions

ball diameter: 1.0

base diameter: 3.0

length 1: 15.5

length 2: 10.5

length 3: 4.5

stem diameter: 1.0

stem step diameter: 0.7

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
