TM2-0710.35

Name: TM2-0710.35
Brand: Q-Mark Manufacturing Inc.
Price: 69.0 USD
Availability: InStock

$69.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

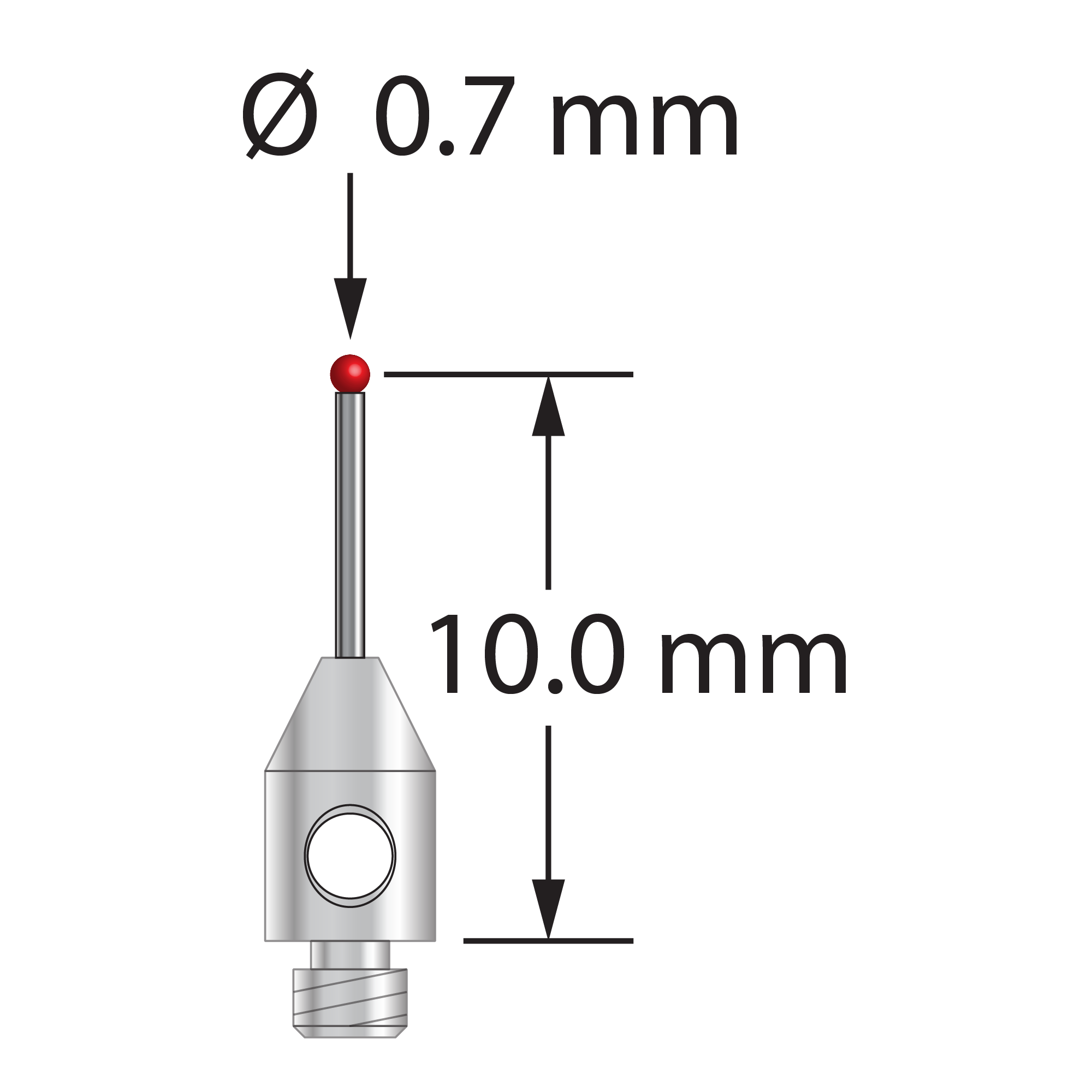

M2 stylus with 0.7 mm diameter ruby ball, 0.5 mm diameter carbide stem, and 3.0 mm diameter x 5.0 mm long stainless steel base. Stylus length to ball center is 10.0 mm. Stylus weight is 0.23 gram. Compare to Carbide Probes 265-.7R and Mitutoyo K651236.

Dimensions

ball diameter: 0.7

base diameter: 3.0

length: 10.35

length 2: 5.35

stem diameter: 0.5

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
