TM2-0620-Z

Name: TM2-0620-Z
Brand: Q-Mark Manufacturing Inc.
Price: 100.0 USD
Availability: InStock

$100.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

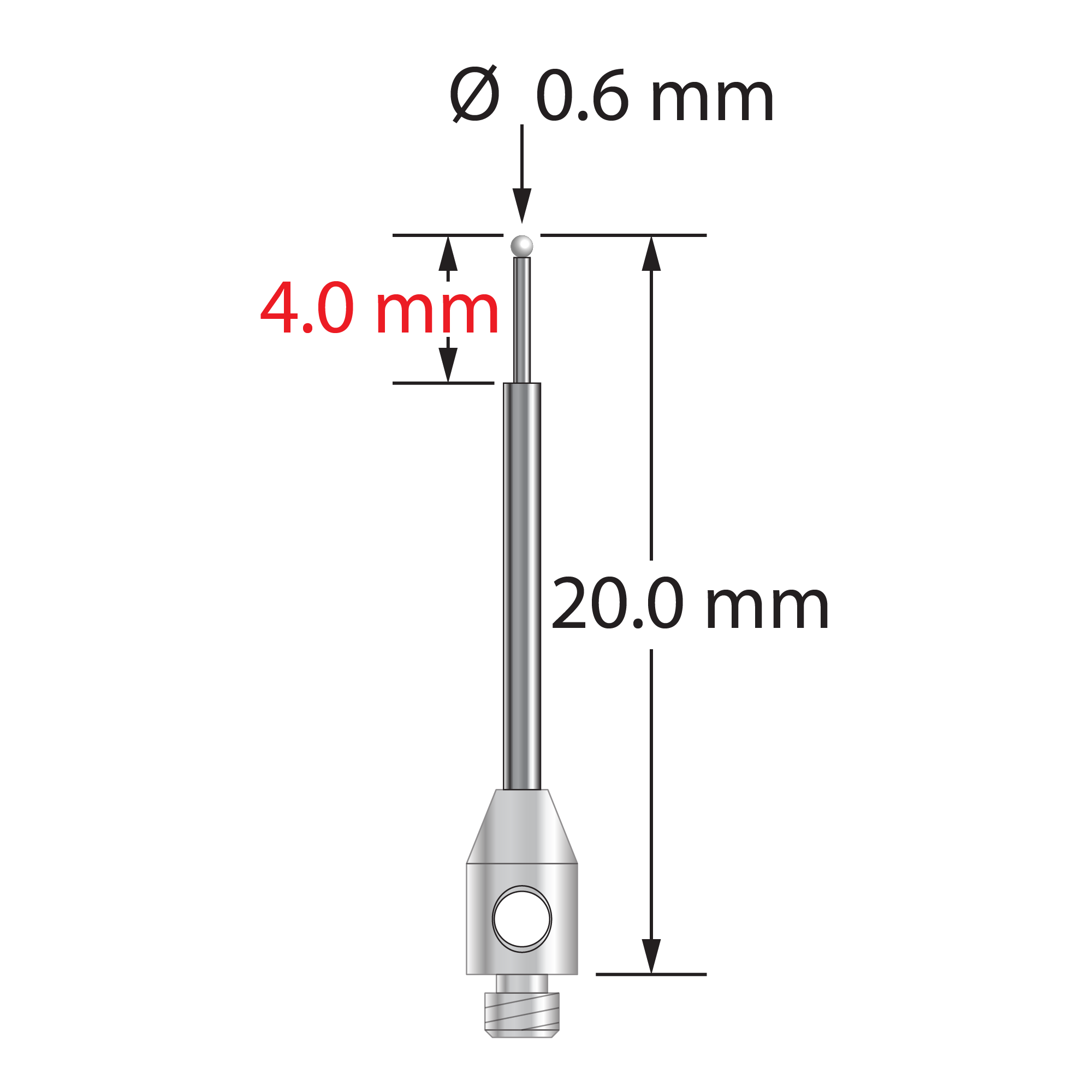

M2 stylus with 0.6 mm diameter zirconia ball, stepped carbide shaft, and 3.0 mm diameter x 5.0 mm long stainless steel base. Minor stem diameter is 0.4 mm, major diameter is 1.0 mm. Overall stylus length is 20.0 mm. Stylus weight is 0.37 gram.

Dimensions

ball diameter: 0.6

base diameter: 3.0

length 1: 10.0

length 2: 5.0

length 3: 4.0

stem diameter: 1.0

stem step diameter: 0.4

Materials

ball material: Zirconia

base material: Stainless Steel

stem material: Carbide
