TM2-0620-C

$130.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

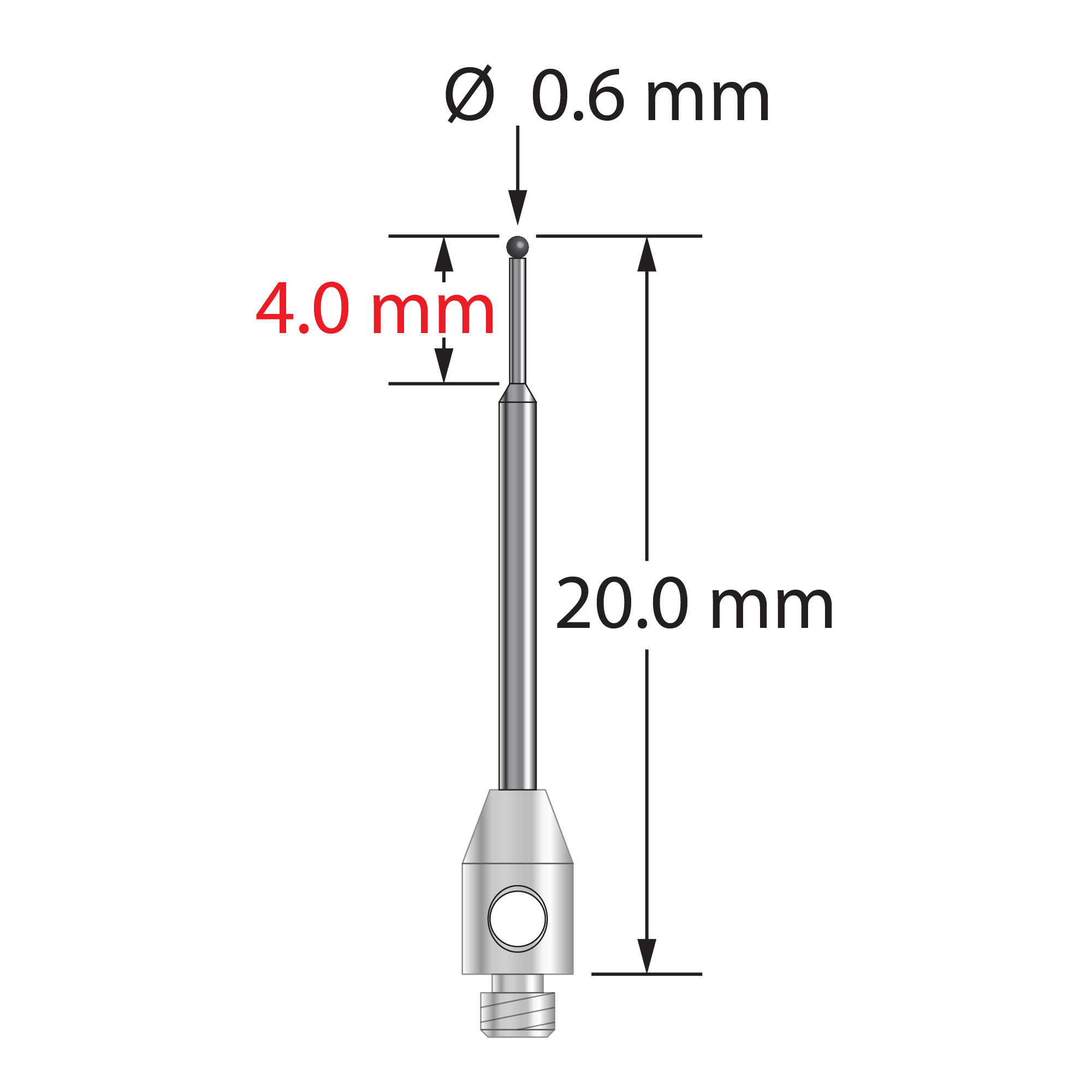

M2 stylus with 0.6 mm diameter carbide ball, stepped carbide shaft, and 3.0 mm diameter x 5.0 mm long stainless steel base.  Minor stem diameter is 0.4 mm, major diameter is 1.0 mm.  Overall stylus length is 20.0 mm.  Stylus weight is 0.36 gram.

Dimensions

ball diameter: 0.6
base diameter: 3.0
length 1: 20.0
length 2: 15.0
length 3: 4.0
stem diameter: 1.0
stem step diameter: 0.4

Materials

ball material: Carbide
base material: Stainless Steel
stem material: Carbide
