TM2-0520-R

Name: TM2-0520-R
Brand: Q-Mark Manufacturing Inc.
Price: 115.0 USD
Availability: InStock

$115.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

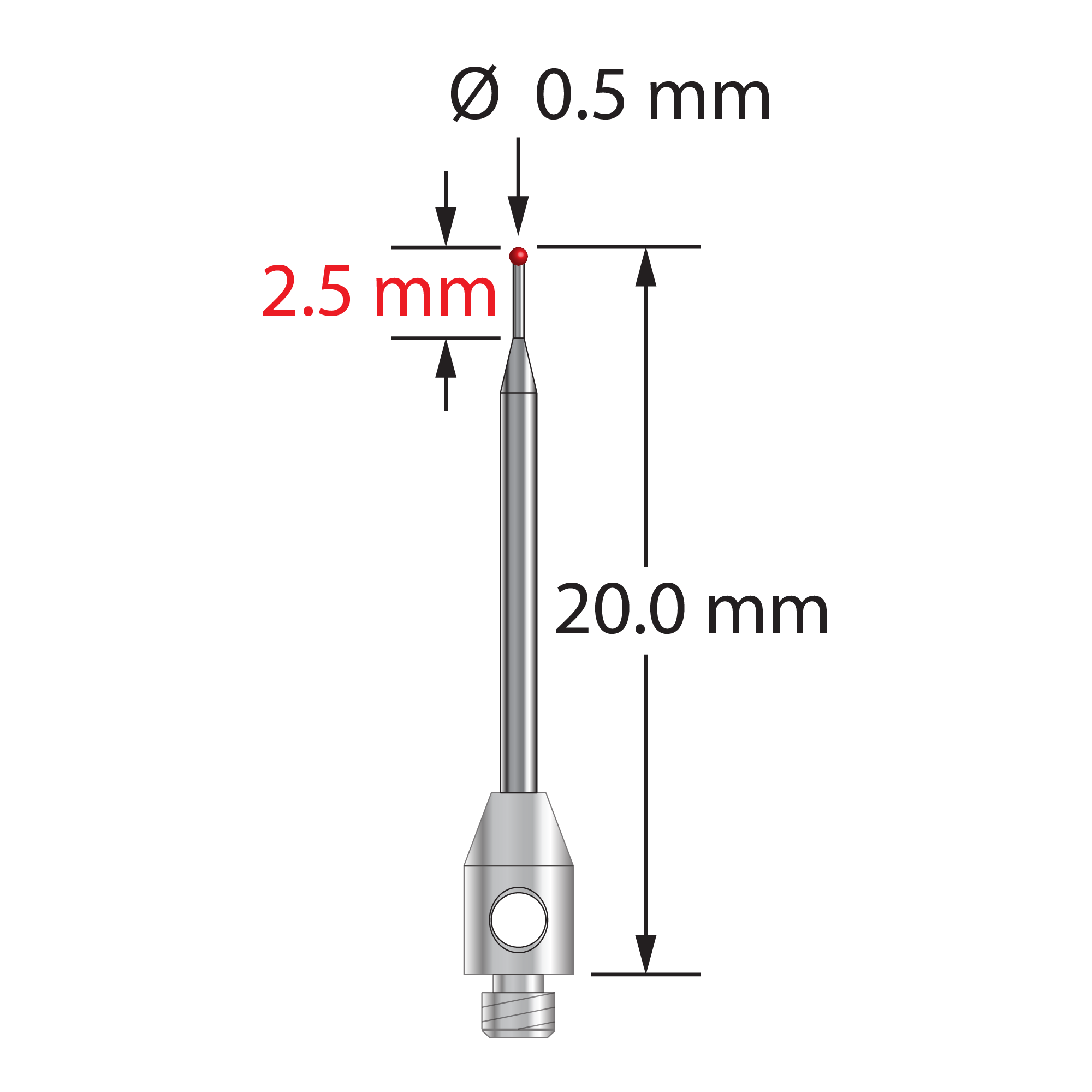

M2 stylus with 0.5 mm diameter ruby ball, tapered carbide stem, and 3.0 mm diameter stainless steel base. Minor stem diameter is 0.3 mm, major diameter is 1.0 mm. Overall stylus length is 20.0 mm. Stylus weight is 0.33 gram. Compare to Mitutoyo K651235 and ITP THM2 005 03 018.

Dimensions

ball diameter: 0.5

base diameter: 3.0

length 1: 20.0

length 2: 15.0

length 3: 2.5

stem diameter: 1.0

stem step diameter: 0.3

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
