TM2-0520-07

$97.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

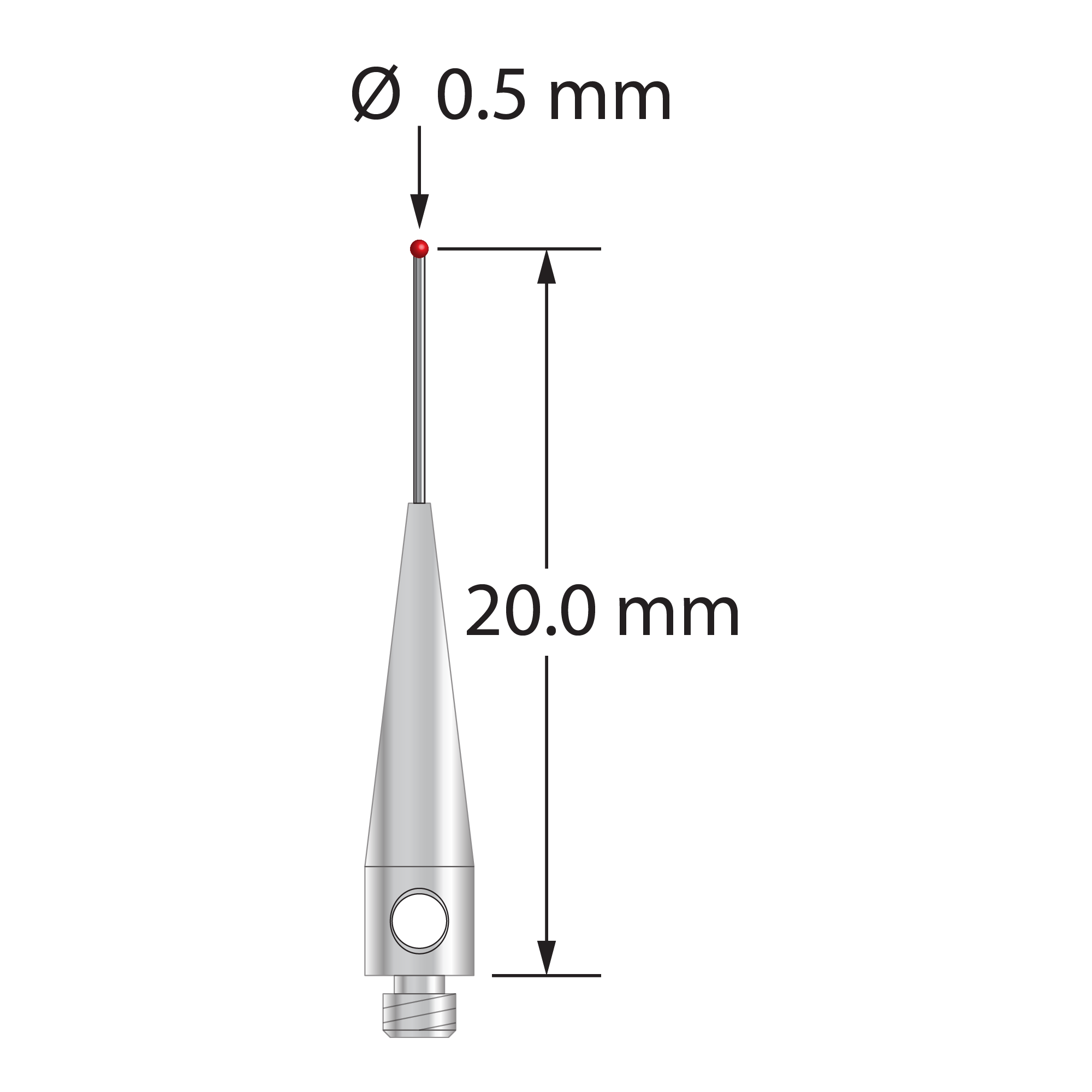

M2 stylus with 0.5 mm diameter ruby ball, 0.3 mm diameter carbide stem, and 3.0 mm diameter x 13.0 mm long stainless steel base.  Stylus length to ball center is 20.0 mm.  Stylus weight is 0.30 gram.  Compare to Renishaw A-5003-1345.

Dimensions

ball diameter: 0.5
base diameter: 3.0
length 1: 20.25
length 2: 7.25
stem diameter: 0.3

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
