TM2-0519-R

$115.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

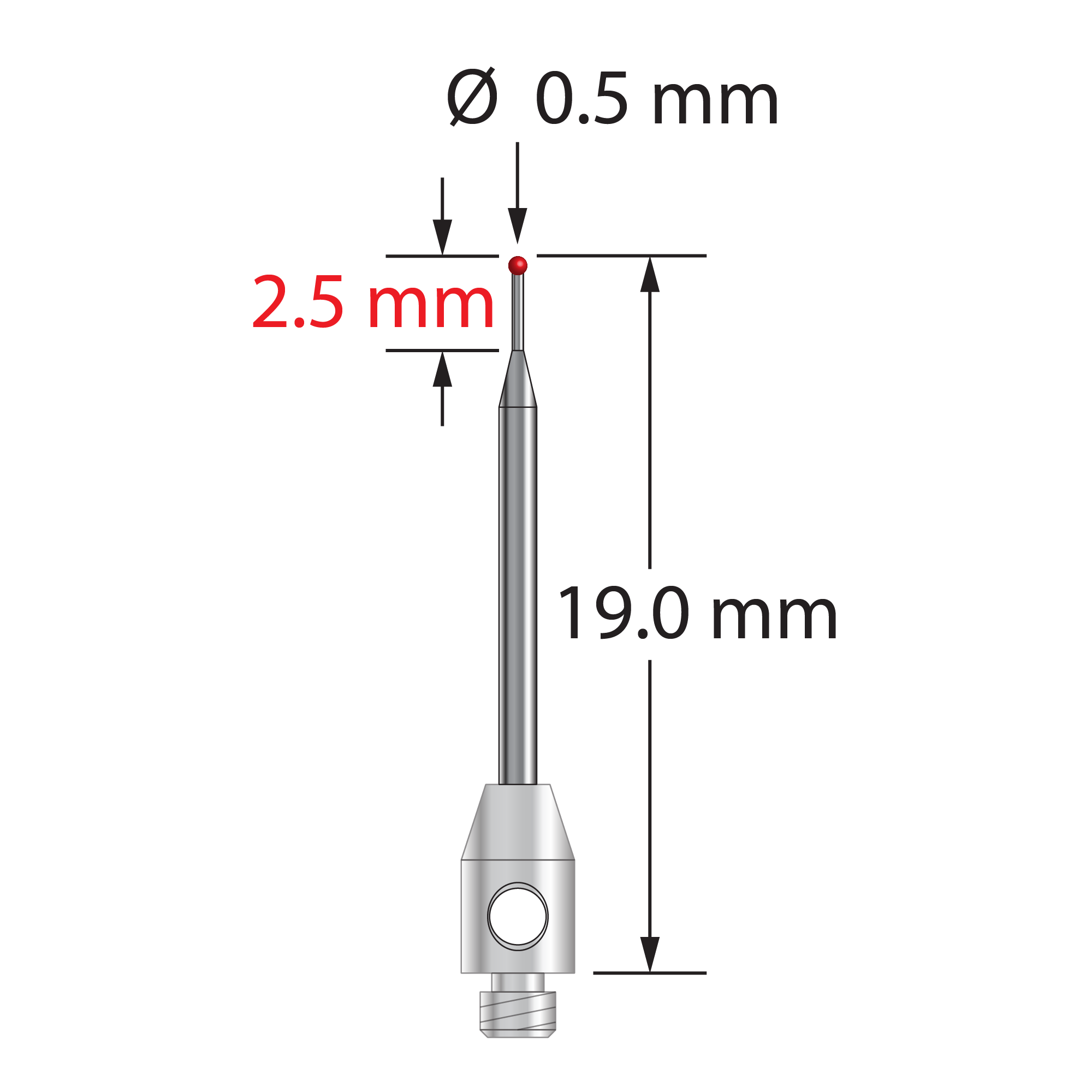

M2 stylus with 0.5 mm diameter ruby ball, tapered carbide stem, and 3.0 mm diameter x 6.0 mm long stainless steel base. Minor stem diameter is 0.3 mm, major diameter is 1.0 mm. Overall stylus length is 19.0 mm. Stylus weight is 0.32 gram.

Dimensions

ball diameter: 0.5
base diameter: 3.0
length 1: 19.0
length 2: 13.0
length 3: 2.5
stem diameter: 1.0
stem step diameter: 0.3

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
