TM2-0510.25-SN

Name: TM2-0510.25-SN
Brand: Q-Mark Manufacturing Inc.
Price: 119.0 USD
Availability: InStock

$119.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

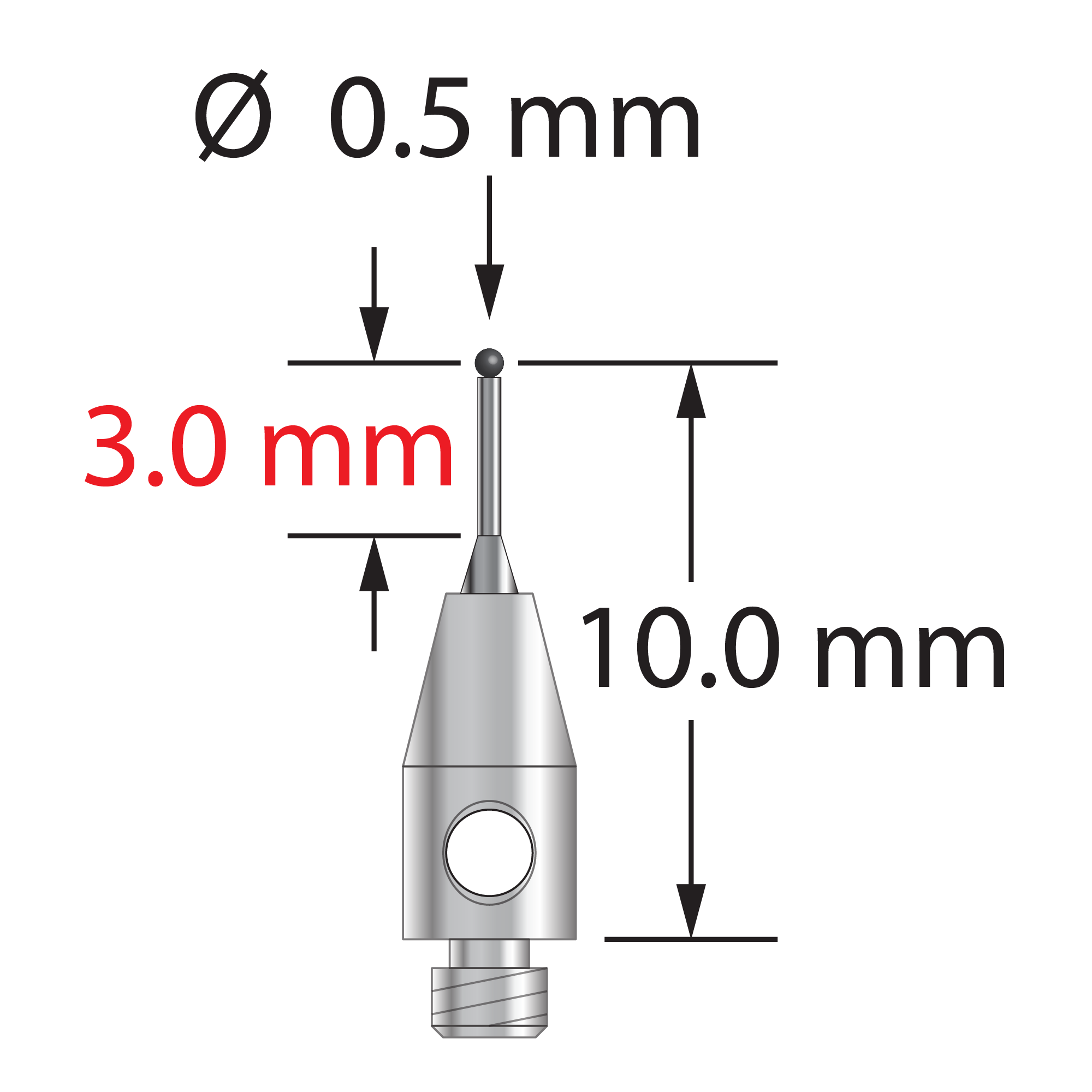

M2 stylus with 0.5 mm diameter silicon nitride ball, tapered carbide stem, and 3.0 mm diameter x 6.0 mm long stainless steel base. Minor stem diameter is 0.4 mm, major diameter is 1.0 mm. Overall stylus length is 10.25 mm. Length to ball center is 10.0 mm. Stylus weight is 0.31 gram.

Dimensions

ball diameter: 0.5

base diameter: 3.0

length 1: 10.25

length 2: 4.25

length 3: 3.5

stem diameter: 1.0

stem step diameter: 0.4

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Carbide
