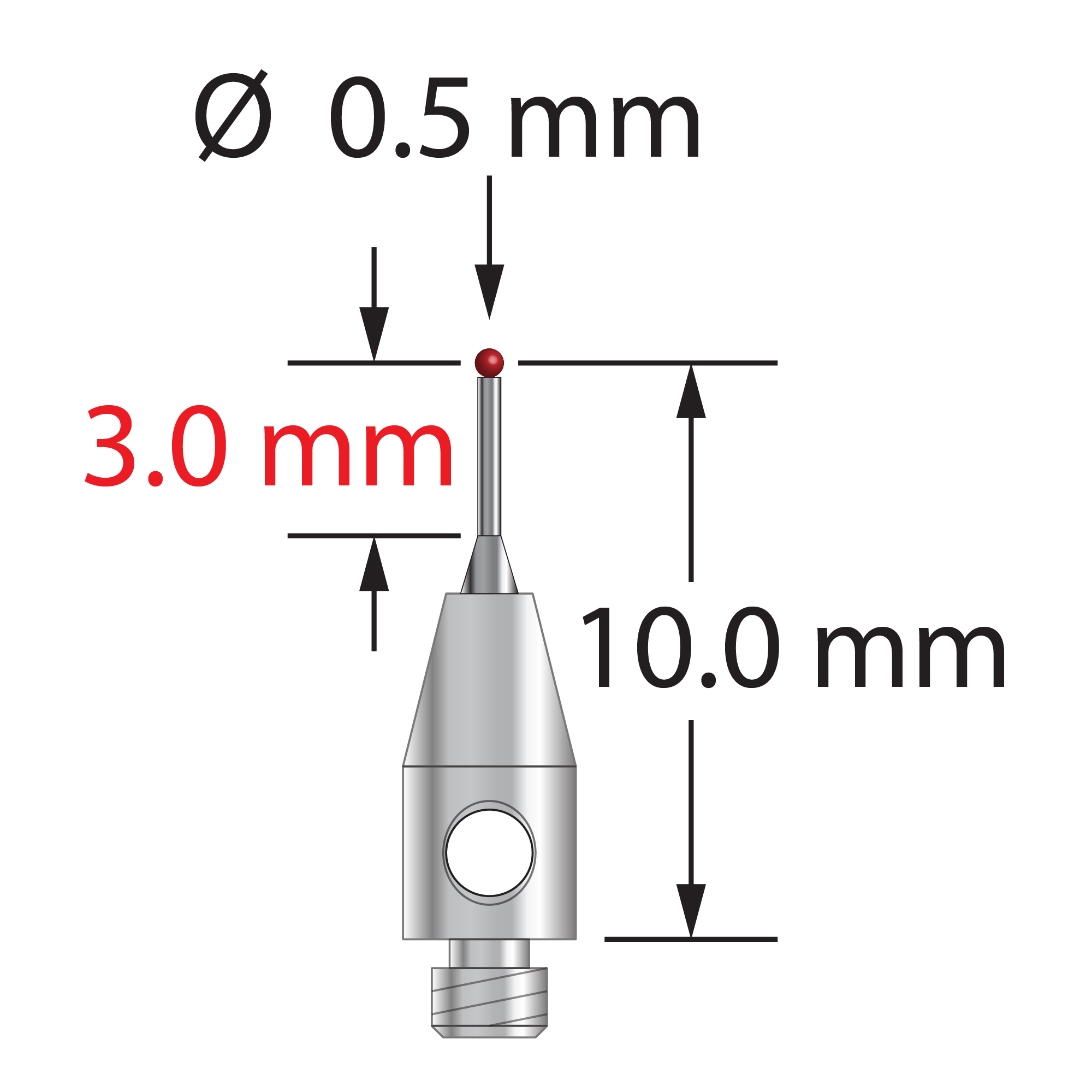

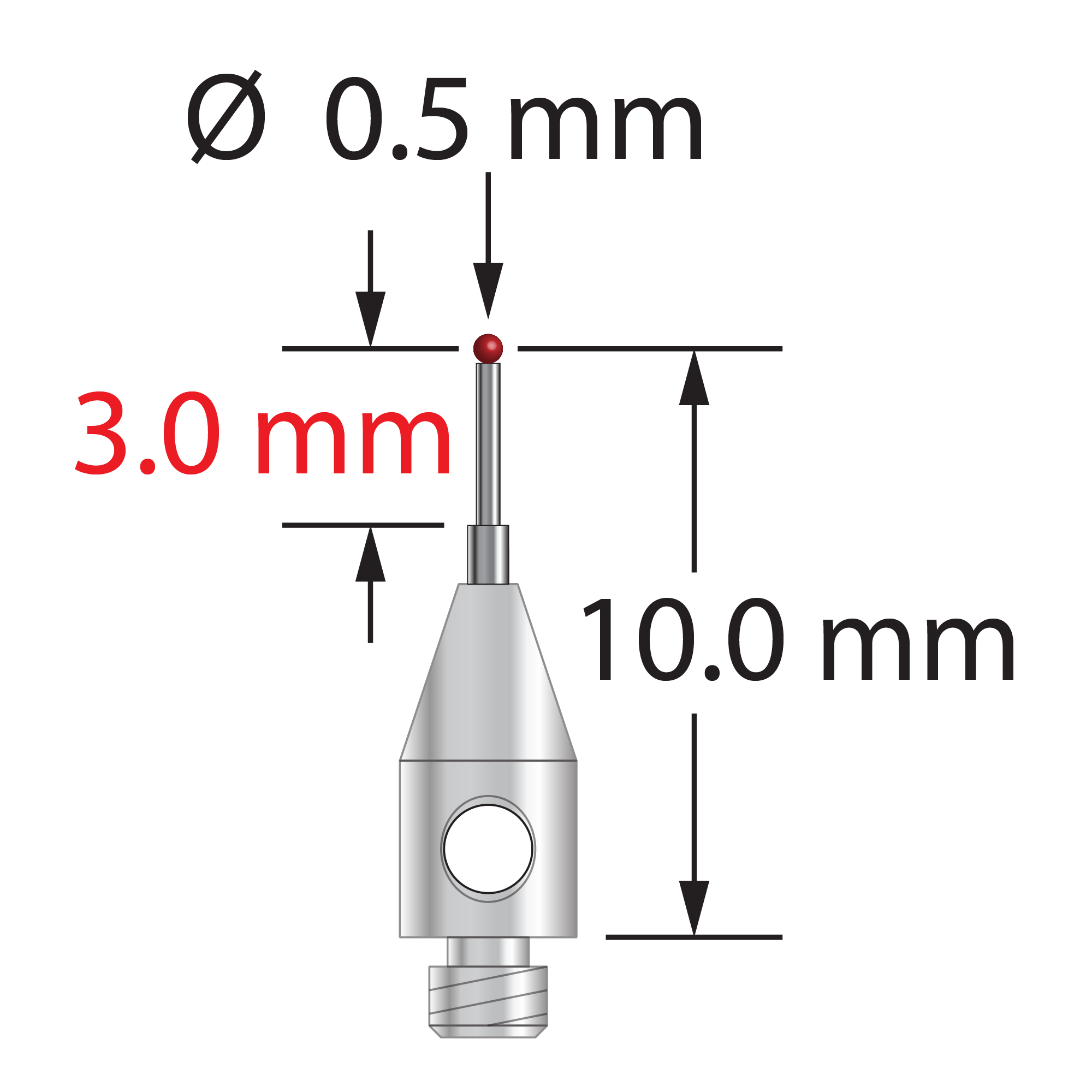

M2 stylus with 0.5 mm diameter ruby ball, tapered carbide stem, and 3.0 mm diameter x 6.0 mm long stainless steel base. Minor stem diameter is 0.4 mm, major diameter is 1.0 mm. Stylus length is 10.0 mm to ball center. Stylus weight is 0.22 gram. Compare to Renishaw A-5000-7805 and Zeiss 623062-3132-000.

TM2-0510.25-R

Name: TM2-0510.25-R
Brand: Q-Mark Manufacturing Inc.
Price: 89.0 USD
Availability: InStock

$89.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

M2 stylus with 0.5 mm diameter ruby ball, tapered carbide stem, and 3.0 mm diameter x 6.0 mm long stainless steel base. Minor stem diameter is 0.4 mm, and major diameter is 1.0 mm. Stylus length to ball center is 10.0 mm. Stylus weight is 0.31 gram. Compare to Renishaw A-5000-7805, Zeiss 623062-3132-000, Carbide Probes 265-.5R, and Mitutoyo K651276.

Dimensions

ball diameter: 0.5

base diameter: 3.0

length 1: 10.25

length 2: 4.25

length 3: 3.5

stem diameter: 1.0

stem step diameter: 0.4

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
