TM2-0310-SN

Name: TM2-0310-SN
Brand: Q-Mark Manufacturing Inc
SKU: TM2-0310-SN
Price: 92.0 USD
Availability: InStock

$92.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

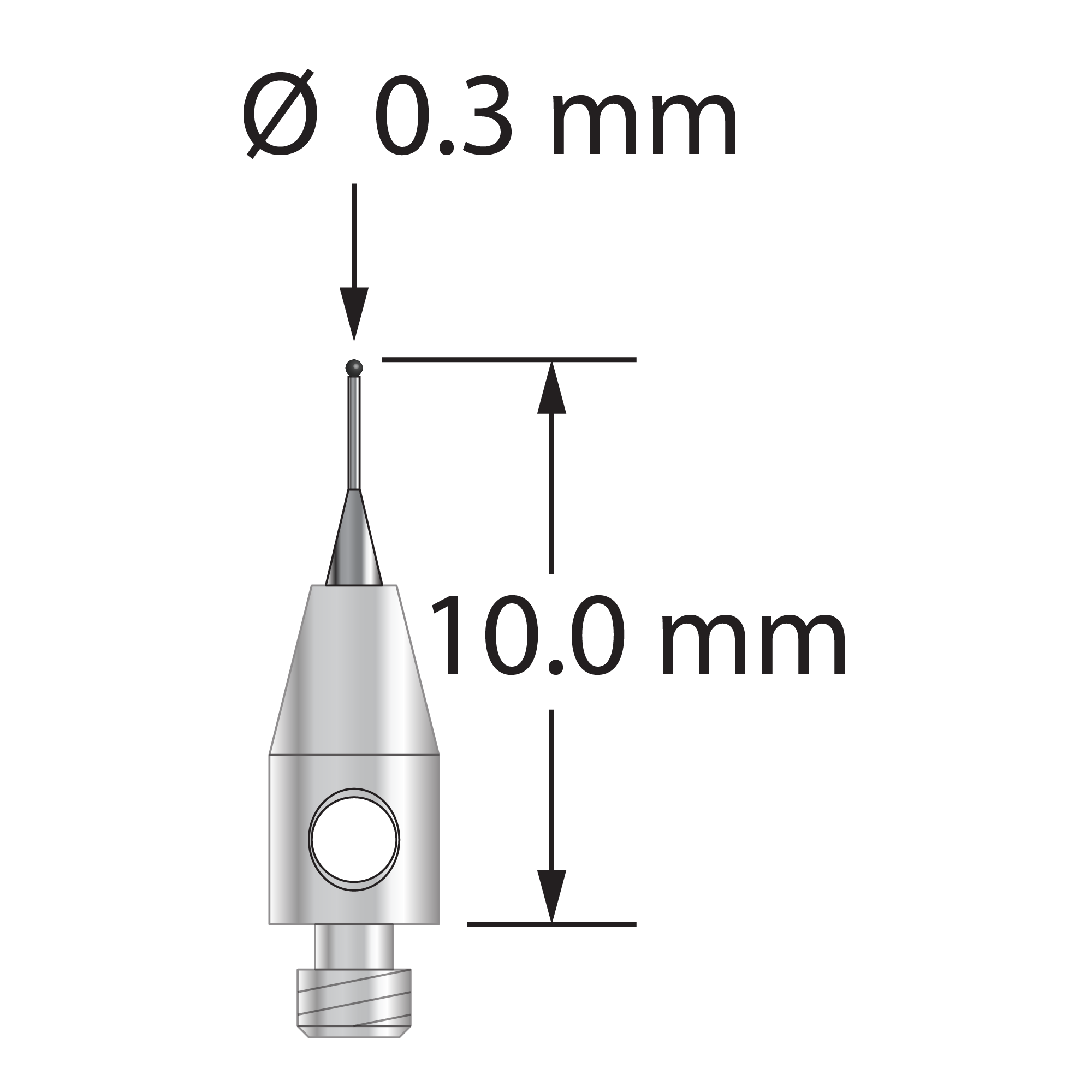

M2 stylus with 0.3 mm diameter silicon nitride ball, tapered carbide stem, and 3.0 mm diameter x 5.0 mm long stainless steel base. Minor stem diameter is 0.2 mm, major diameter is 1.0 mm. Overall stylus length is 10.0 mm. Stylus weight is 0.21 gram. Compare to Renishaw A-5004-2016 and Zeiss 626102-5245-010.

Dimensions

ball diameter: 0.3

base diameter: 3.0

length 1: 10.0

length 2: 5.0

length 3: 2.3

stem diameter: 1.0

stem step diameter: 0.2

Materials

ball material: Silicon Nitride

base material: Stainless Steel
