TM2-0310-C

$126.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

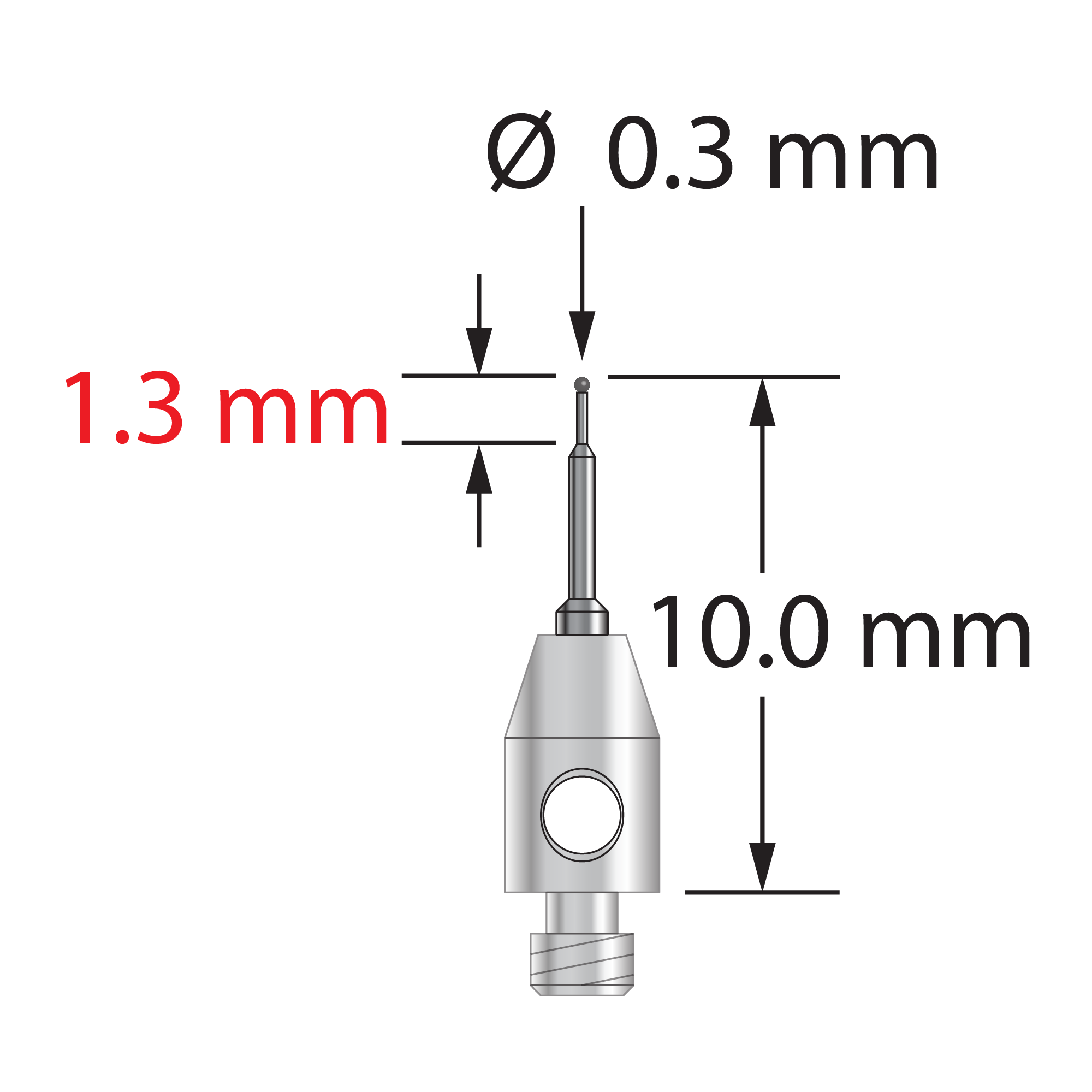

M2 stylus with 0.3 mm diameter carbide ball, 3.0 mm diameter x 5.0 mm long stainless steel base, and stepped carbide stem.  Minor stem diameter is 0.2 mm, intermediate diameter is 0.5 mm, and major diameter is 1.0 mm.  Overall stylus length is 10.0 mm.  Stylus weight is 0.24 gram.

Dimensions

ball diameter: 0.3
base diameter: 3.0
length 1: 10.0
length 2: 5.0
length 3: 1.3
stem diameter: 1.0
stem step diameter: 0.2

Materials

ball material: Carbide
base material: Stainless Steel
stem material: Carbide
