TM2-0210-C

$190.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

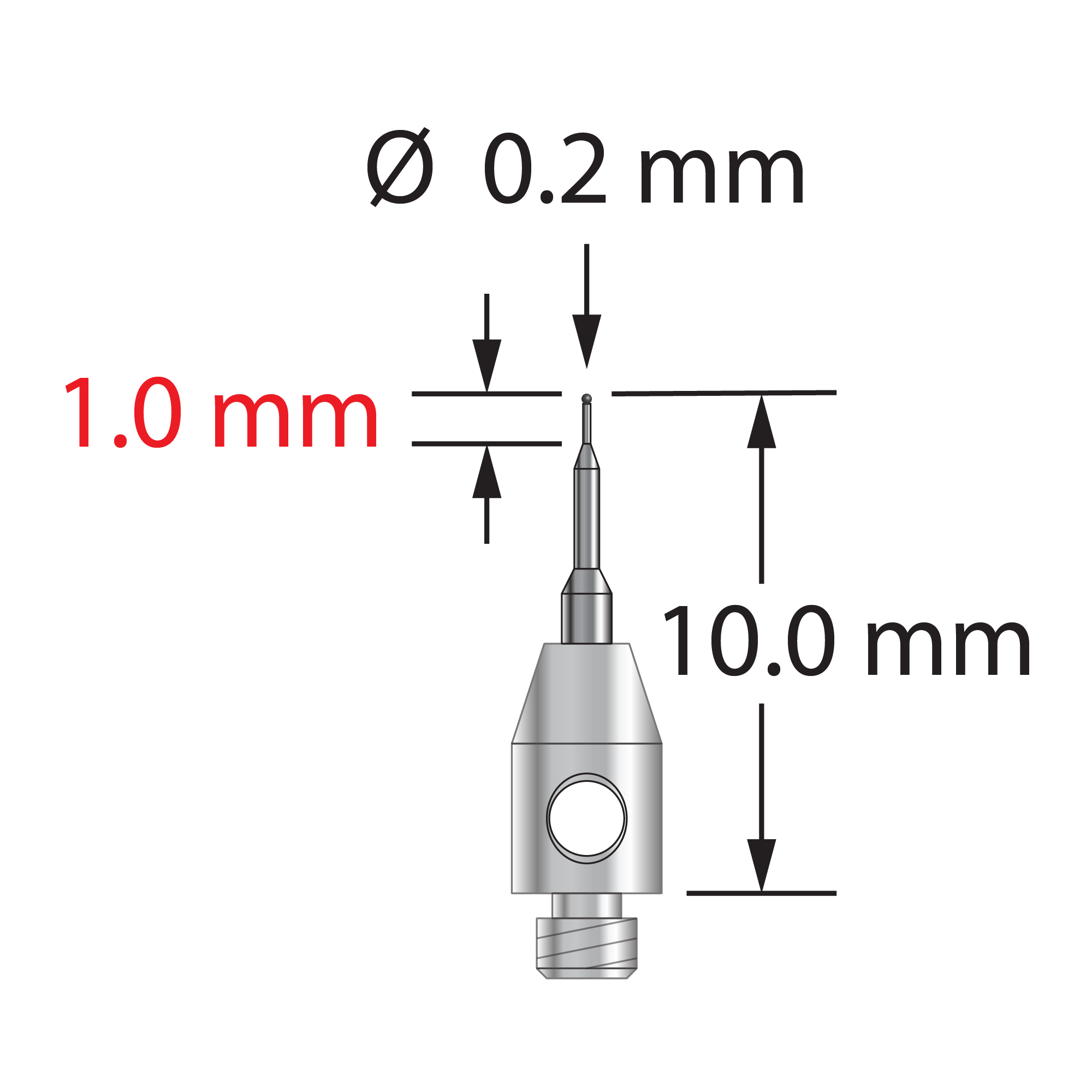

M2 stylus with 0.2 mm diameter carbide ball, stepped carbide stem, and 3.0 mm diameter x 5.0 mm long stainless steel base. Minor stem diameter is 0.17 mm, intermediate diameter is 0.5 mm, and major diameter is 1.0 mm. Stylus weight is 0.24 gram.

Dimensions

ball diameter: 0.2
base diameter: 3.0
length 1: 10.0
length 2: 5.0
length 3: 1.0
stem diameter: 1.0
stem first step diameter: 0.17
stem step diameter: 0.5

Materials

ball material: Carbide
base material: Stainless Steel
stem material: Carbide
