STR3-2030

Name: STR3-2030
Brand: Q-Mark Manufacturing Inc.
Price: 138.0 USD
Availability: InStock

$138.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

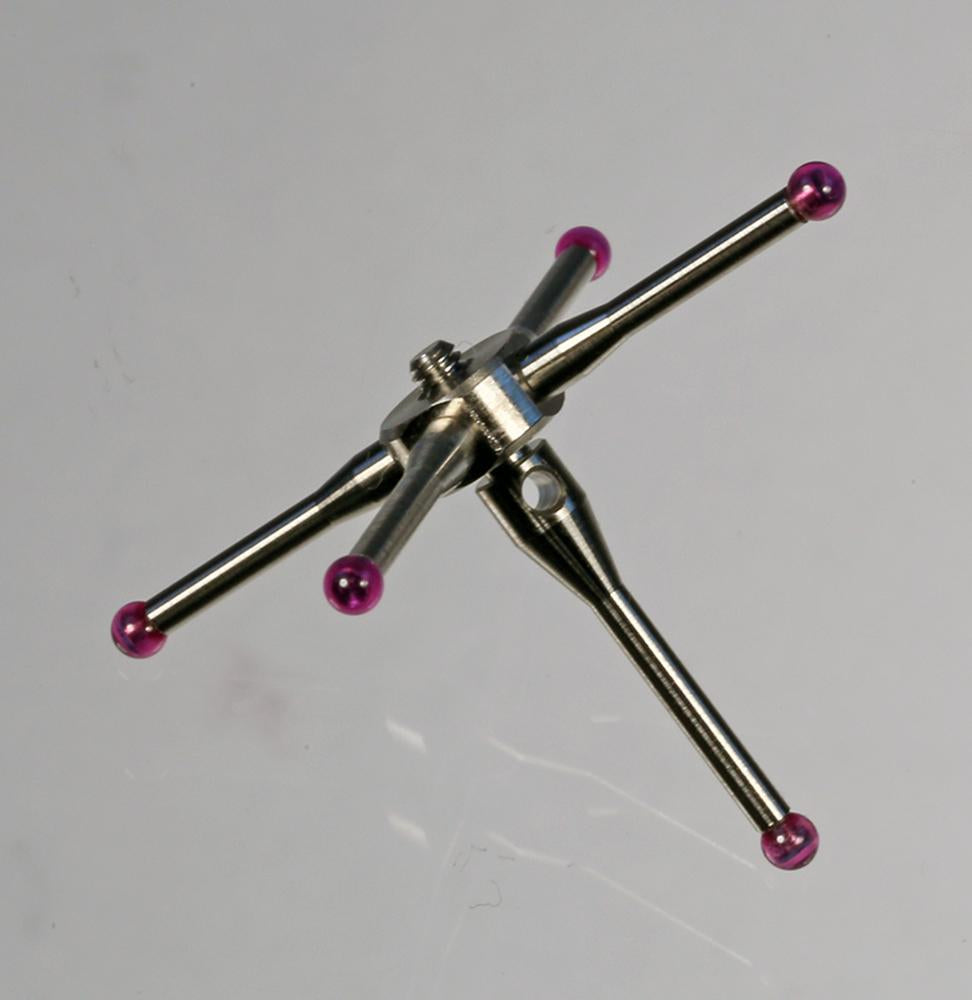

M3 5-way star probe with center stylus. Five 2.0 mm diameter ruby balls on 1.0 mm diameter stainless steel stems. Distance between opposite ball centers is 30.0 mm. Center stylus length is 18.0 mm to ball center. Weight is 2.26 grams. Compare to Renishaw A-5003-0076 and Mitutoyo K651163.

Dimensions

ball diameter: 2.0

length 1: 30.0

length 2: 18.0

stem diameter: 1.0

Materials

ball material: Ruby

body material: Stainless Steel

stem material: Stainless Steel
