STR2C-0519

Name: STR2C-0519
Brand: Q-Mark Manufacturing Inc.
Price: 149.0 USD
Availability: InStock

$149.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

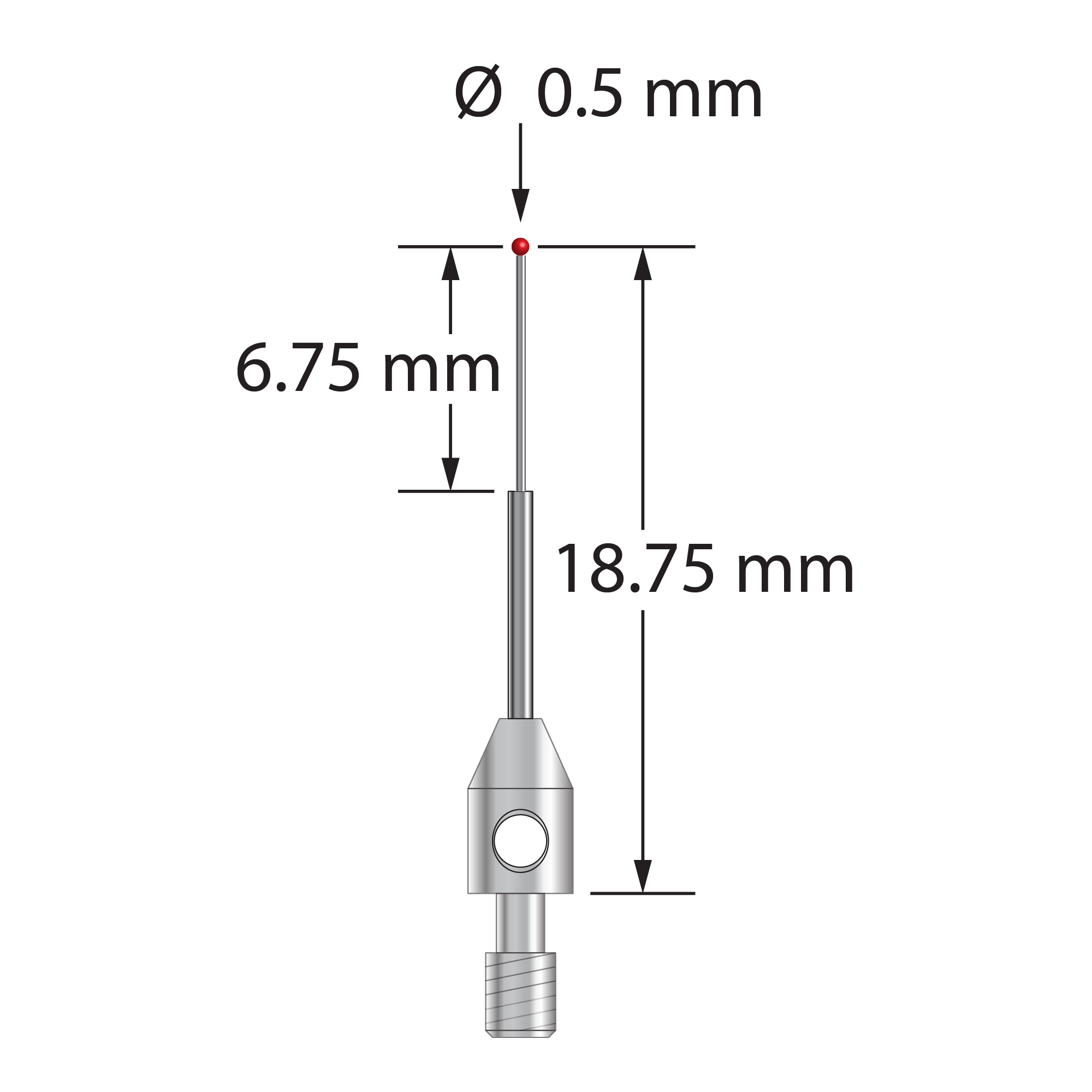

M2 star center stylus with 0.5 mm diameter ruby ball, stepped carbide stem, and 3.0 mm diameter x 5.0 mm long stainless steel base with captive screw style thread. Minor stem diameter is 0.4 mm, major diameter is 0.7 mm. Stylus length to ball center is 18.5 mm. Stylus weight is 0.41 gram. Compare to Renishaw A-5003-4790.

Dimensions

ball diameter: 0.5

base diameter: 3.0

length 1: 18.75

length 2: 7.75

stem diameter: 0.7

stem step diameter: 0.4

Materials

ball material: Ruby

base material: Stainless steel

stem material: Carbide
