STR2-2020
STR2-2020

STR2-2020

$138.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

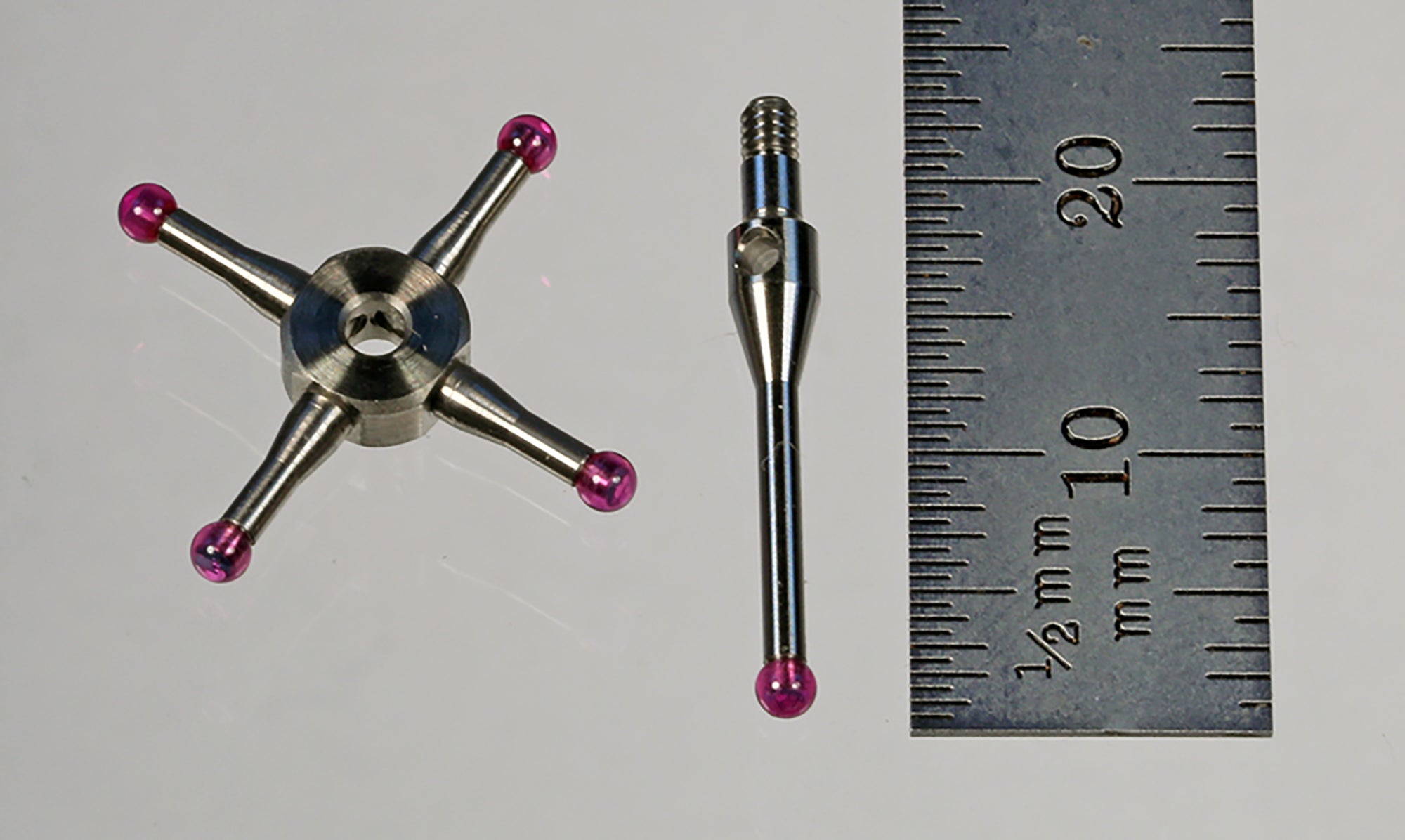

M2 star stylus with (5) 2.0 mm diameter ruby balls.  Fully adjustable.  20.0 mm between ball centers.  Center stylus measures 16.5 mm from base to ball center.  Stainless steel fittings with 1.0 mm diameter carbide stems.  Weight is 1.27 grams.  Compare to Renishaw A-5000-7629 and Mitutoyo K650451.

Dimensions

ball diameter: 2.0
stem diameter: 1.0

Materials

ball material: Ruby
body material: Stainless steel
stem material: Carbide
