STR2-0520
STR2-0520

STR2-0520

$260.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

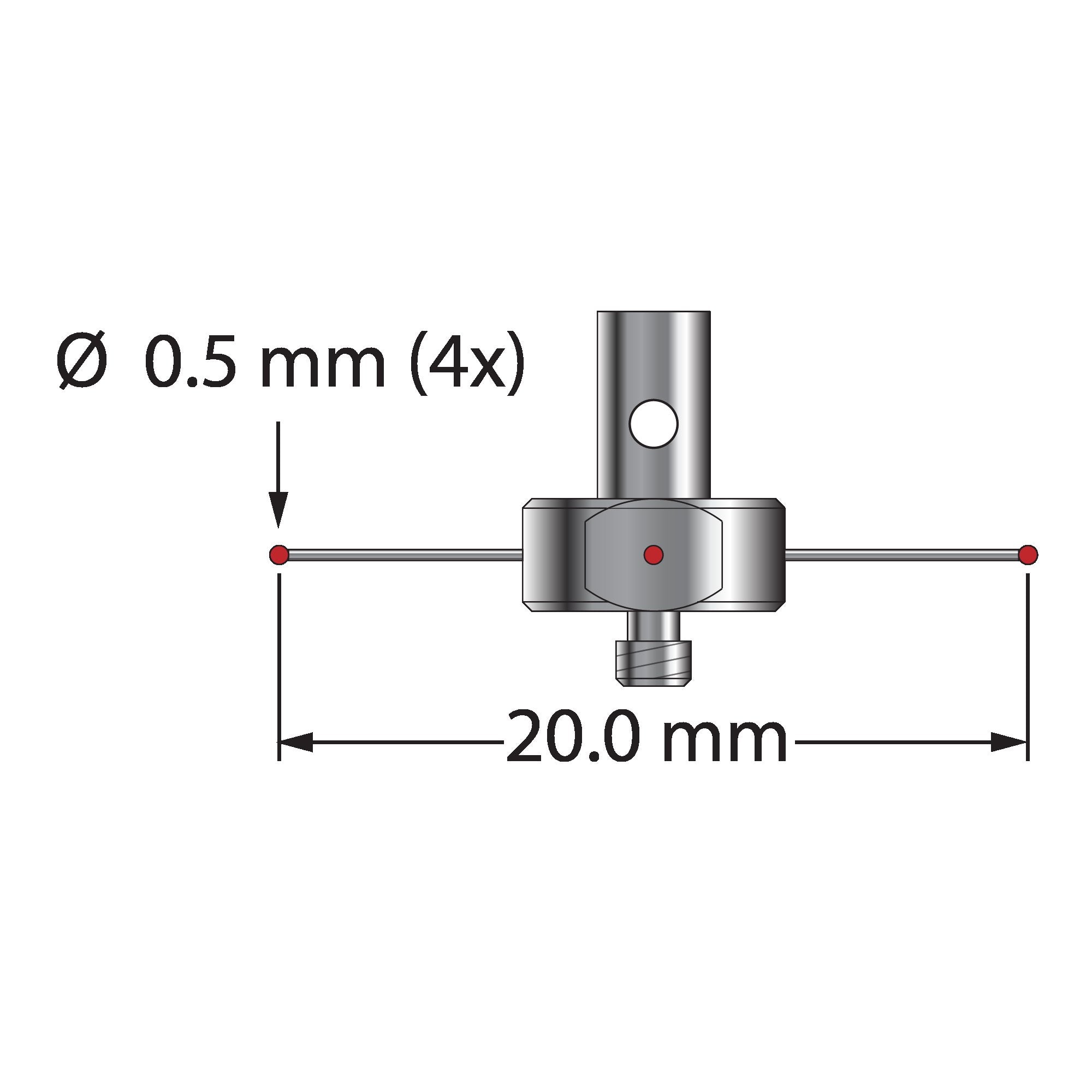

M2 star stylus with 0.5 mm ruby balls, 0.3 mm diameter carbide stems, and stainless steel fittings.  20.0 mm between ball centers.  Radially adjustable.  Weight is 0.75 gram.  Compare to Renishaw A-5003-4787 and Zeiss 000000-1776-940.

Dimensions

ball diameter: 0.5
stem diameter: 0.3

Materials

ball material: Ruby
body material: Stainless Steel
stem material: Carbide
