RD-MP
RD-MP

RD-MP

$110.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

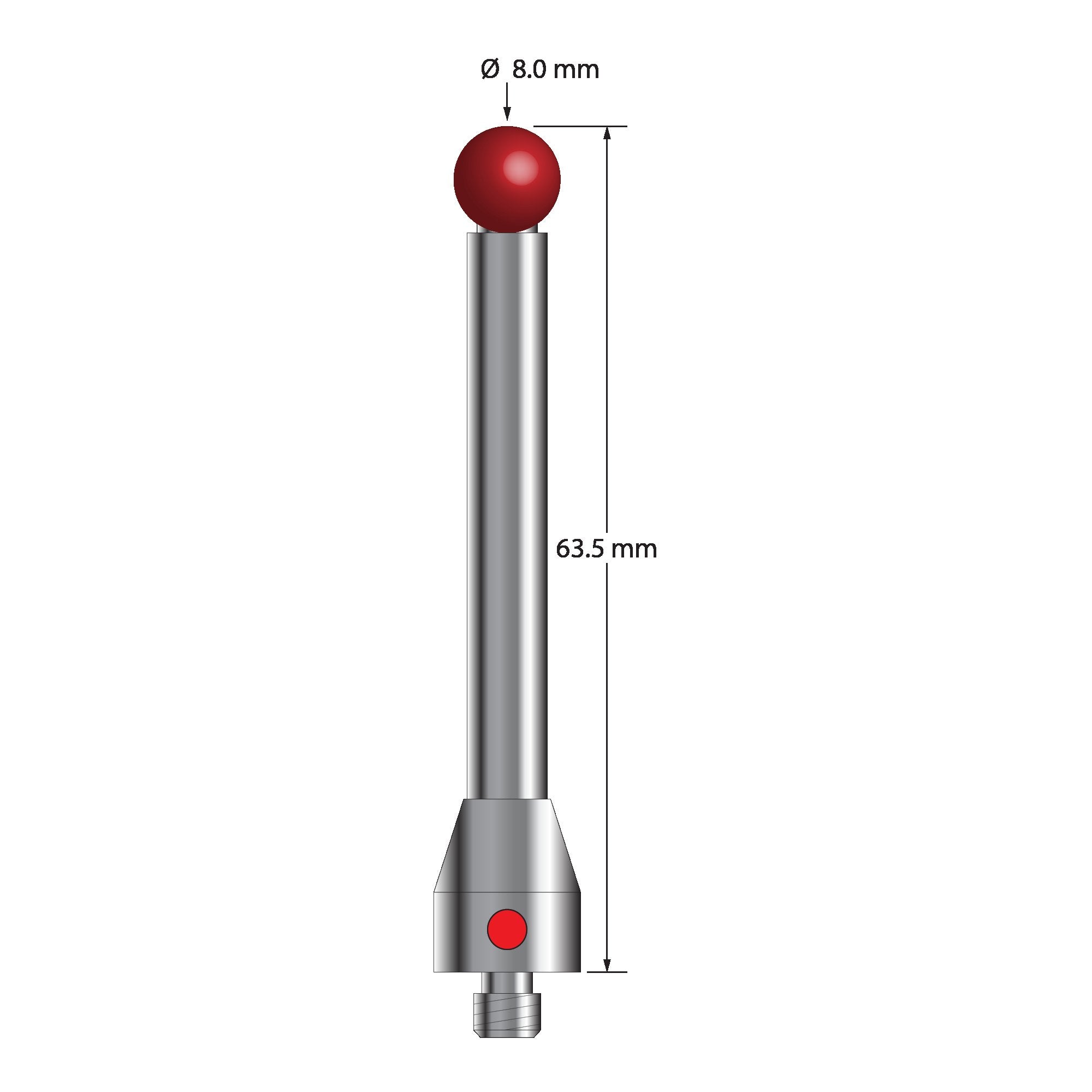

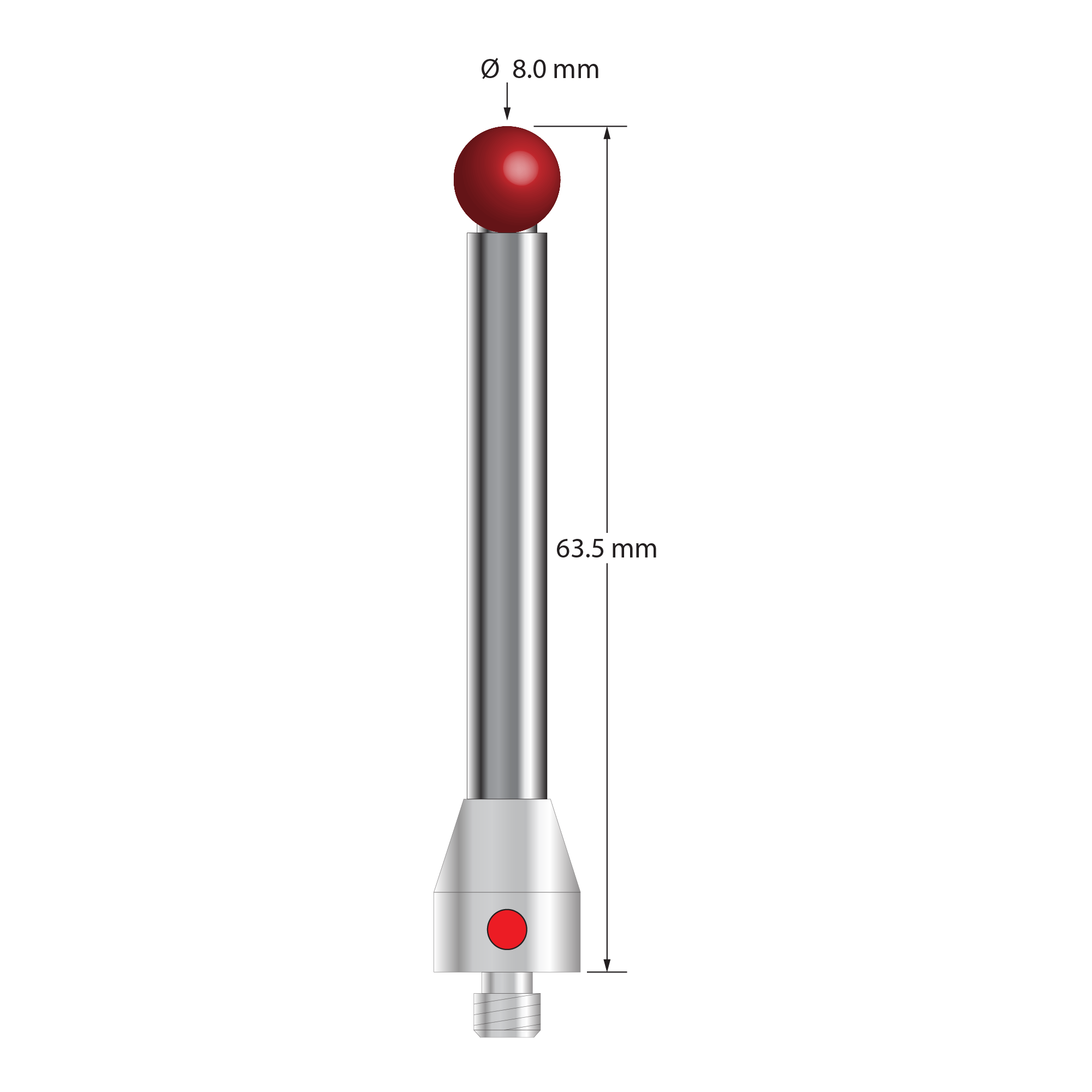

M5 "Red Dot" master probe with 8.0 mm diameter ruby ball, 6.0 mm diameter carbide stem, and 11.0 mm diameter x 13.0 mm long stainless steel base. Overall stylus length is 63.5 mm. Weight is 26.51 grams. Compare to Zeiss 600342-8023-010.

Dimensions

ball diameter: 8.0
base diameter: 11.0
length 1: 63.5
length 2: 50.5
stem diameter: 6.0

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
