QMFQ-20-Z

Name: QMFQ-20-Z
Brand: Q-Mark Manufacturing Inc
Price: 95.0 USD
Availability: InStock

$95.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

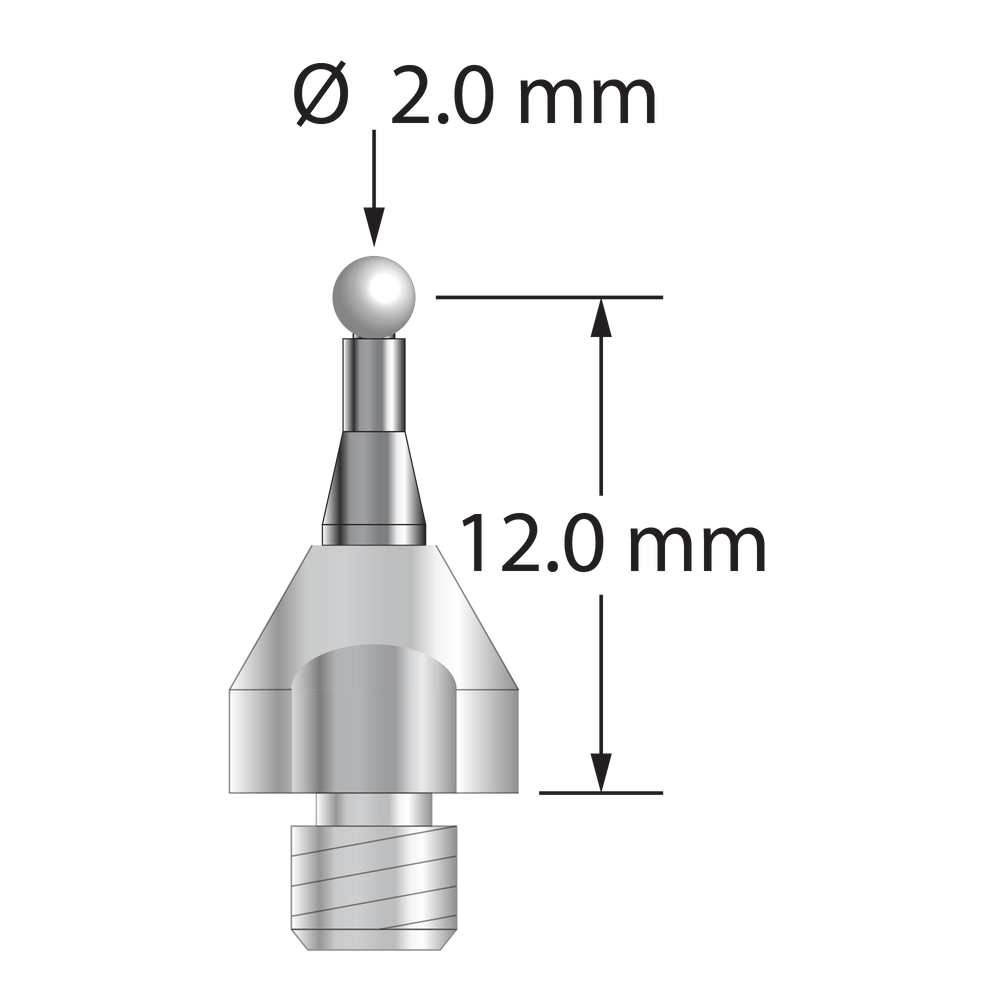

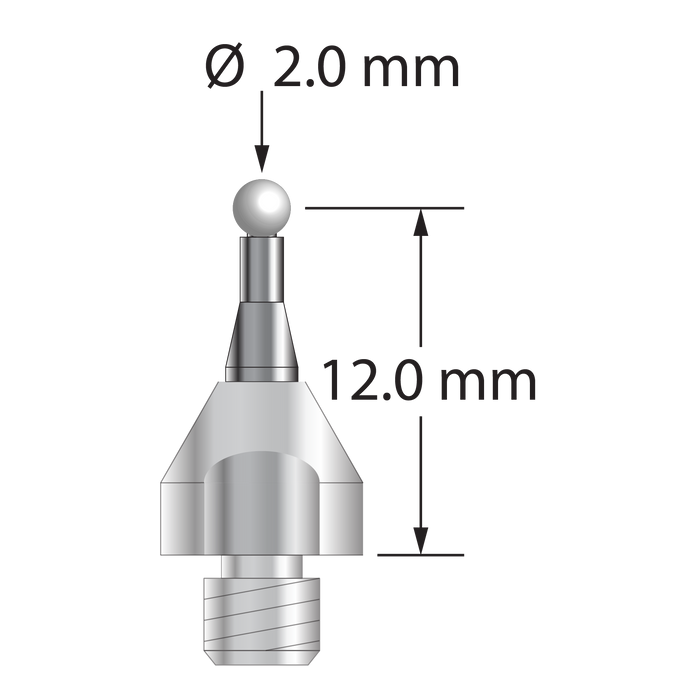

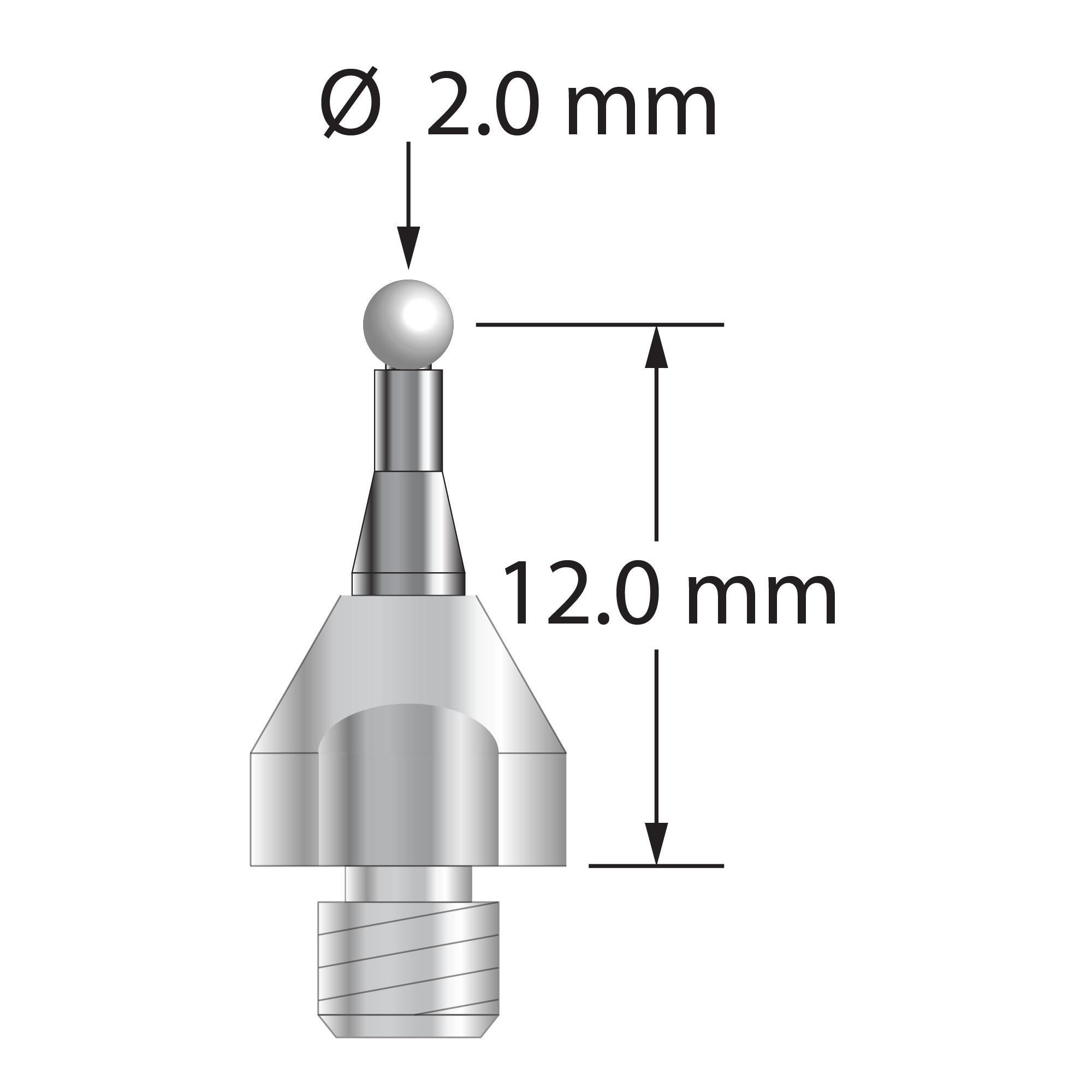

M4 stylus for Faro Quantum arm with 2.0 mm diameter zirconia ball, tapered carbide stem, and 7.0 mm diameter x 6.0 mm long stainless steel base with wrench flats. Major stem diameter is 2.5 mm, minor diameter is 1.5 mm. Stylus length to ball center is 12.0 mm. Compare to Faro QT-PRS-2MM-ZIR.

Dimensions

ball diameter: 2.0

base diameter: 7.0

length 1: 13.0

length 2: 7.0

stem diameter: 2.5

stem step diameter: 1.5

Materials

ball material: Zirconia

base material: Stainless Steel

stem material: Carbide
