QMFP-8

Name: QMFP-8
Brand: Q-Mark Manufacturing Inc.
Price: 180.0 USD
Availability: InStock

$180.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

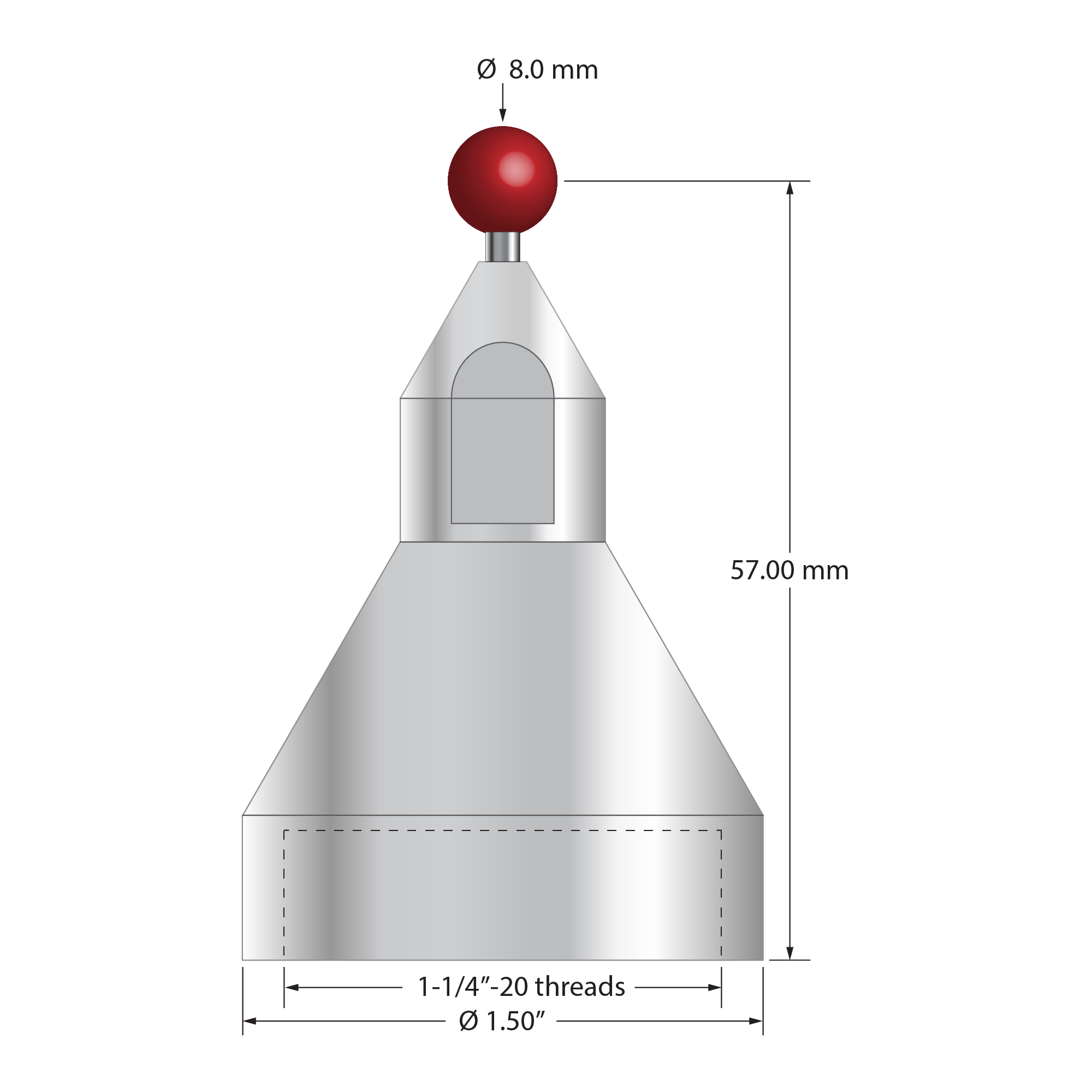

FARO stylus with 8.0 mm diameter ruby ball, 4.0 mm diameter carbide stem, and stainless steel base. Stylus length to ball center is 57.0 mm. Stylus weight is 107.0 grams.

Dimensions

ball diameter: 8.0

base diameter: 1.50 inch

length 1: 57.0

stem diameter: 4.0

Materials

ball material: Ruby

body material: Stainless Steel

stem material: Carbide
