QMFP-5-Z

$150.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

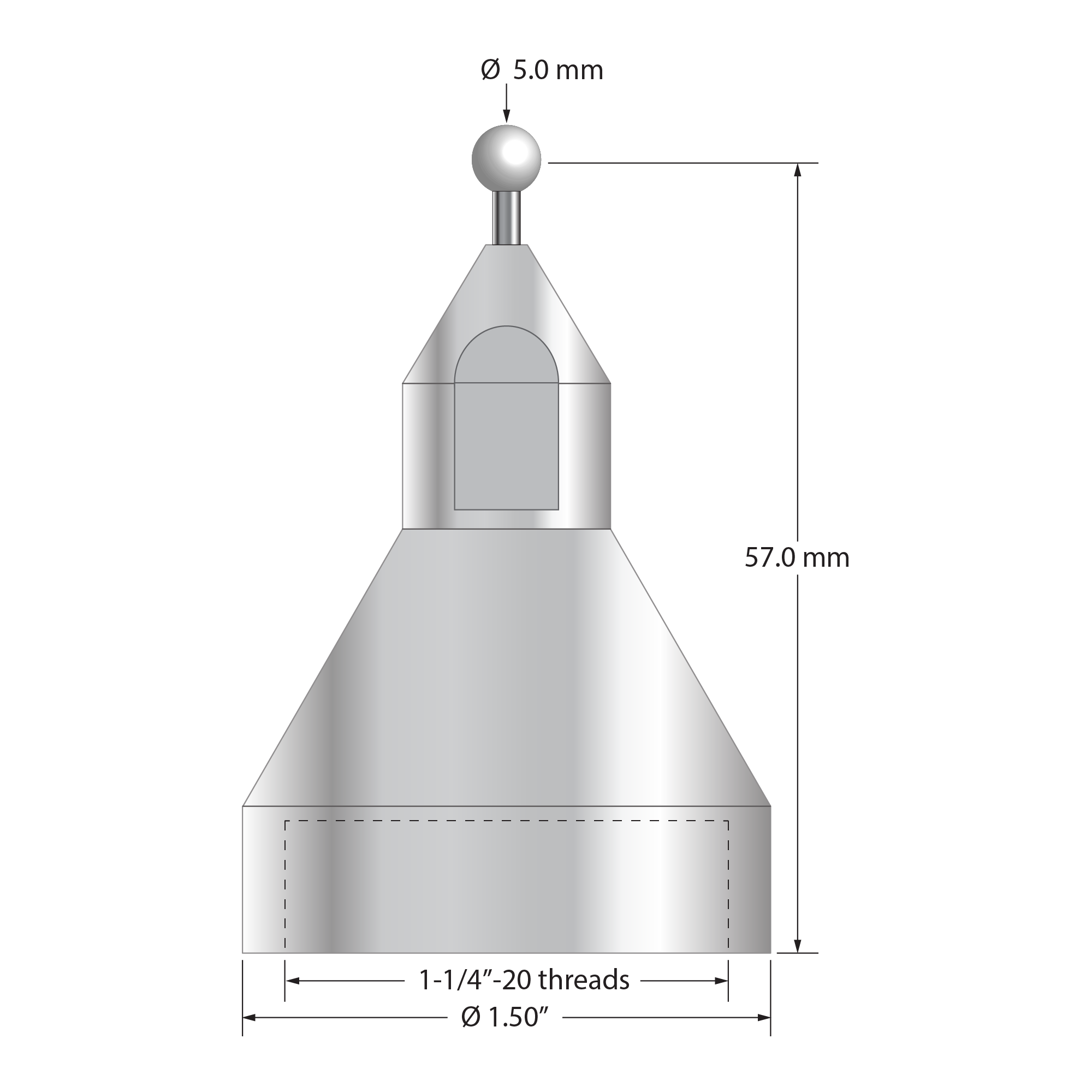

FARO stylus with 5.0 mm diameter zirconia ball, 2.0 mm diameter carbide stem, and stainless steel base. Stylus length to ball center is 57.0 mm. Stylus weight is 104.0 grams.

Dimensions

ball diameter: 5.0
base diameter: 1.50 inch
length 1: 57.0
stem diameter: 2.0

Materials

ball material: Zirconia
base material: Stainless Steel
stem material: Carbide
