QMFARO-30-SN

Name: QMFARO-30-SN
Brand: Q-Mark Manufacturing Inc.
Price: 110.0 USD
Availability: InStock

$110.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

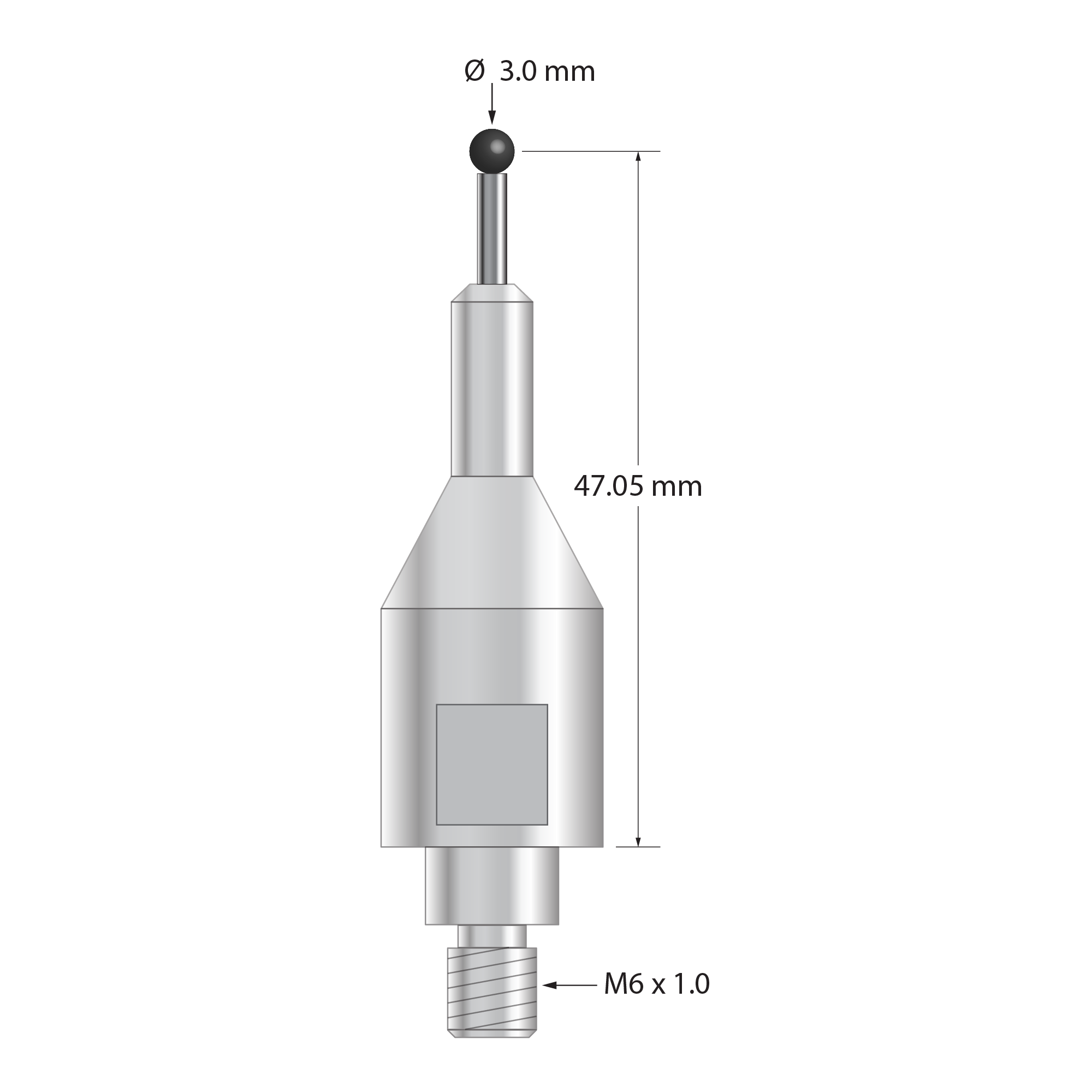

FARO compatible stylus with 3.0 mm diameter silicon nitride ball, 2.0 mm diameter carbide stem, and stainless steel base. Stylus length to ball center is 47.05 mm.

Dimensions

ball diameter: 3.0

base diameter: .620 inch

length 1: 48.55

stem diameter: 2.0

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Carbide
