QMFARO-1/16-Z
QMFARO-1/16-Z

QMFARO-1/16-Z

$165.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

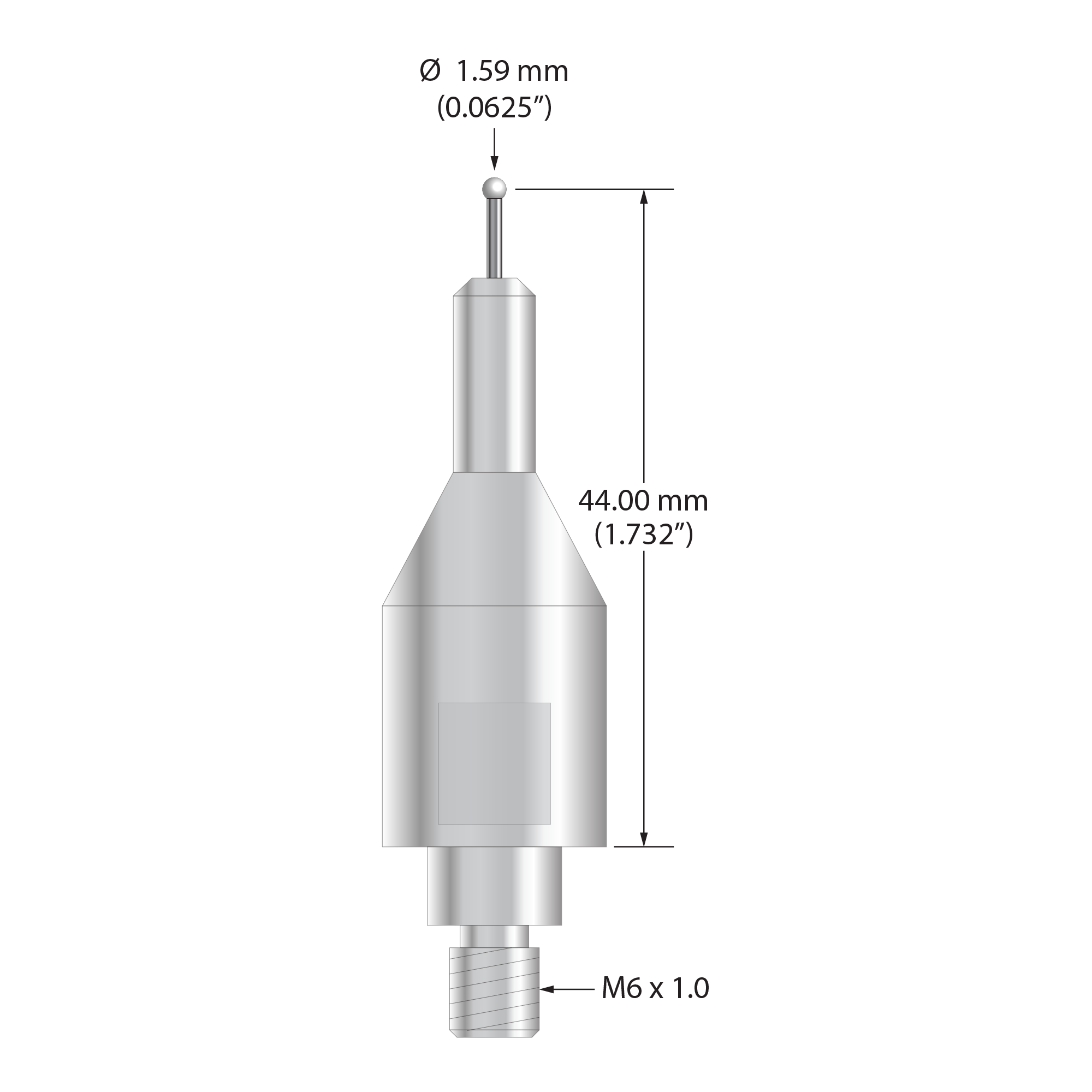

FARO stylus with 1/16" diameter zirconia ball, carbide shaft, and stainless steel body. Stylus length to ball center is 44.0 mm. Compare to FARO 10533.

Dimensions

ball diameter: 1.59
base diameter: .620 inch
length 1: 44.0
stem diameter: 1.0

Materials

ball material: Zirconia
base material: Stainless Steel
stem material: Carbide
