PH-150
PH-150

PH-150

$46.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

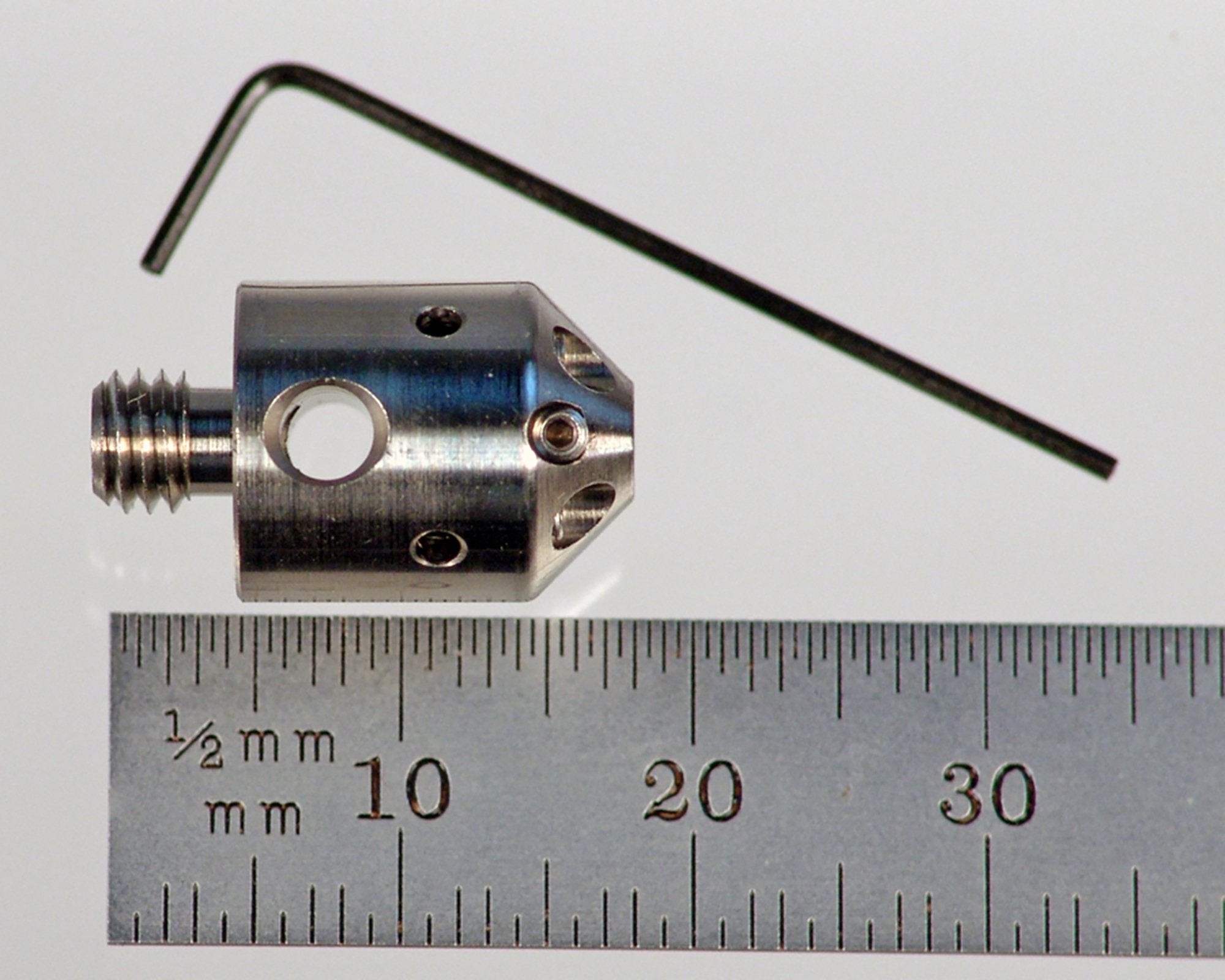

Unthreaded stylus holder with M5 threaded base.  Holds 1 to 5 unthreaded styli with 1.5 mm diameter stems.  Features a 1.5 mm diameter knock-out hole through threaded base.  Stainless steel with stainless steel set screws.  Weight is 7.38 grams.  Includes one 0.7 mm hex wrench (pictured).  Compare to Renishaw A-5555-0106 and Zeiss 600341-8368-000.

Dimensions

base diameter: 11.0
length 1: 13.5
stem diameter: 1.5

Materials

body material: Stainless Steel
