PH-10
PH-10

PH-10

$50.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

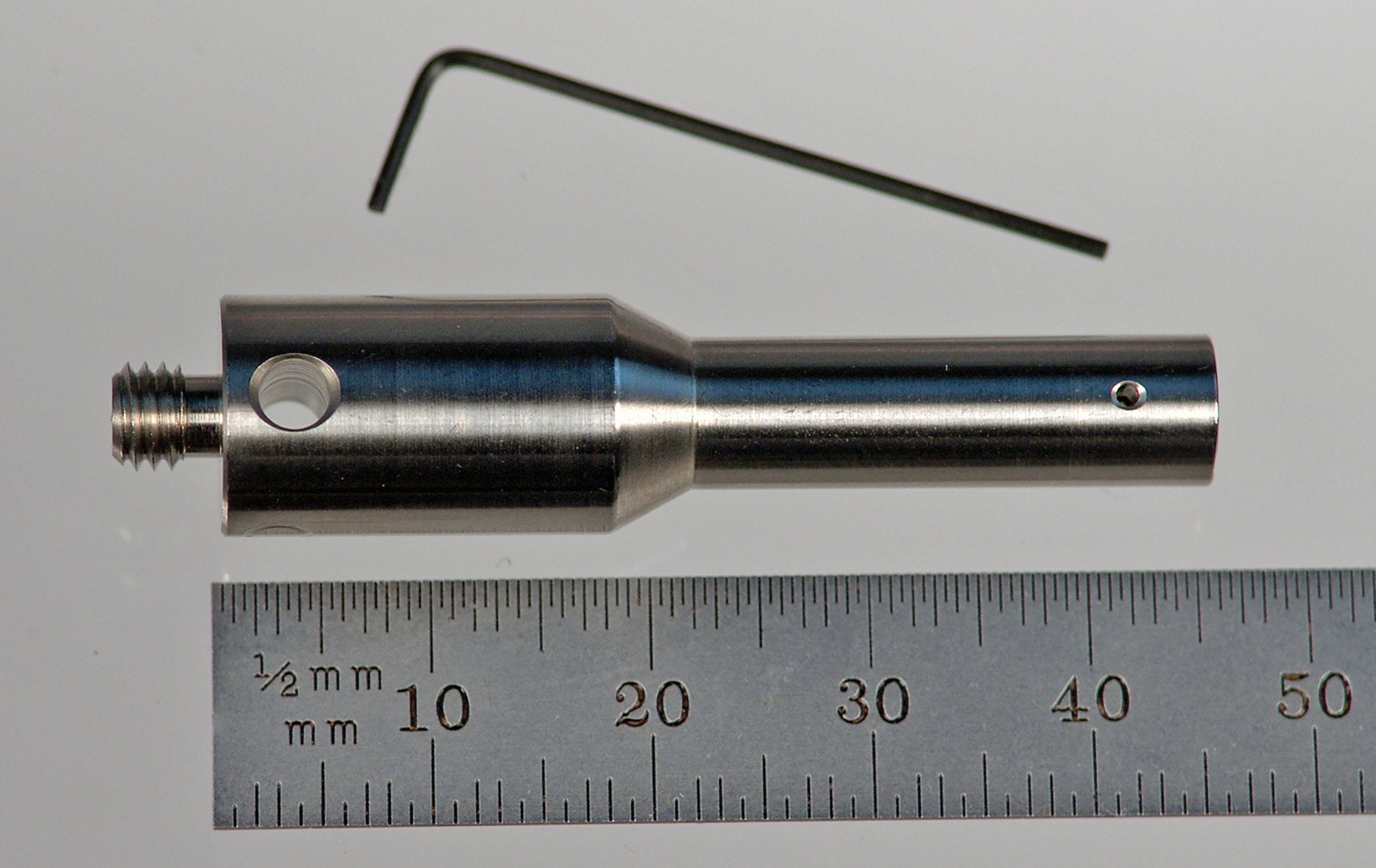

M5 right angle stylus holder with 1.0 mm through hole for one unthreaded stylus with 1.0 mm diameter stem.  Stainless steel.  Weight is 21.73 grams.  Includes one 0.7 mm hex wrench (shown).  Compare to Renishaw A-5555-0141 and Zeiss 600341-8160-000.

Dimensions

base diameter: 11.0
length 1: 45.0
length 2: 25.0
length 3: 4.0
stem diameter: 1.0

Materials

body material: Stainless Steel
