MTL-5043
MTL-5043

MTL-5043

$80.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

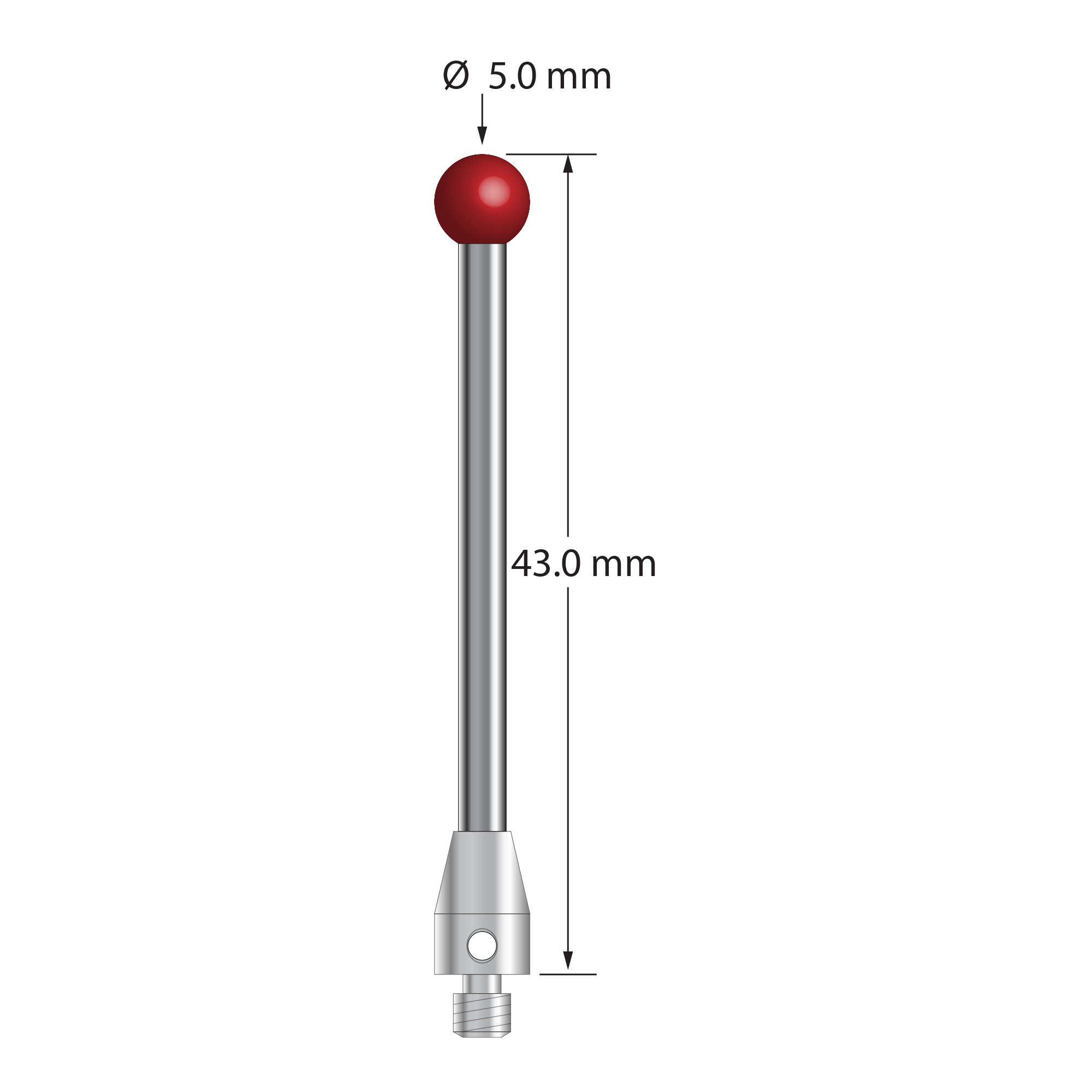

M3 stylus for Metrol probe system with 5.0 mm diameter ruby ball, 2.5 mm diameter carbide stem, and 5.0 mm diameter x 7.5 mm long stainless steel base. Ds = 2.5 mm, L1 = 43.0 mm, L2 = 35.5 mm. Stylus weight is 3.30 grams.

Dimensions

ball diameter: 5.0
base diameter: 5.0
length 1: 43.0
length 2: 35.5
stem diameter: 2.5

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
