MTL-4042.5

Name: MTL-4042.5
Brand: Q-Mark Manufacturing Inc.
Price: 80.0 USD
Availability: InStock

$80.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

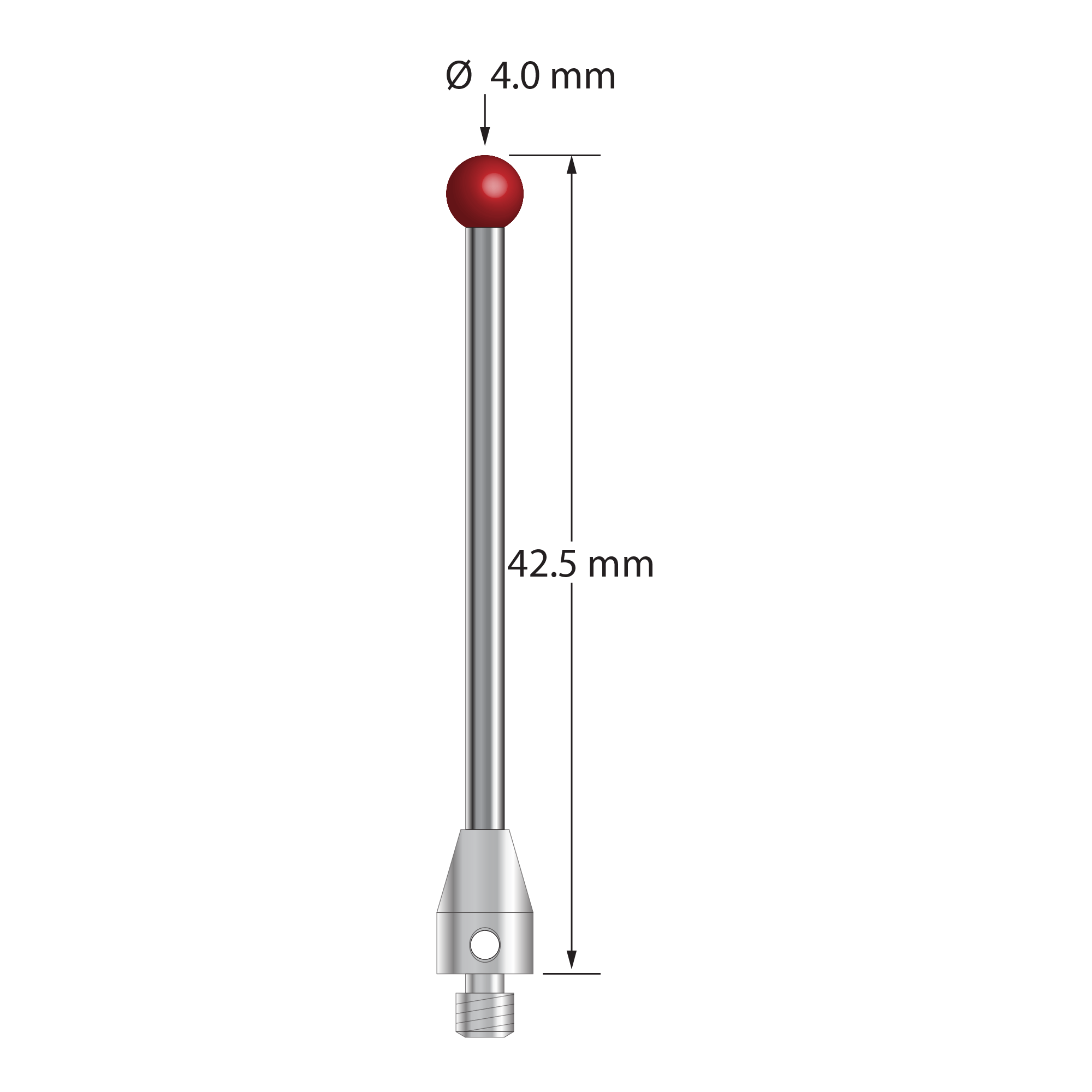

M3 stylus for Metrol probe system with 4.0 mm diameter ruby ball, 2.0 mm diameter carbide stem, and 5.0 mm diameter x 7.5 mm long stainless steel base. Overall stylus length is 42.5 mm. Stylus weight is 2.47 grams. Compare to Metrol F-R40T-405.

Dimensions

ball diameter: 4.0

base diameter: 5.0

length 1: 42.5

length 2: 35.0

stem diameter: 2.0

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
