MTL-2021.5

Name: MTL-2021.5
Brand: Q-Mark Manufacturing Inc.
Price: 80.0 USD
Availability: InStock

$80.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

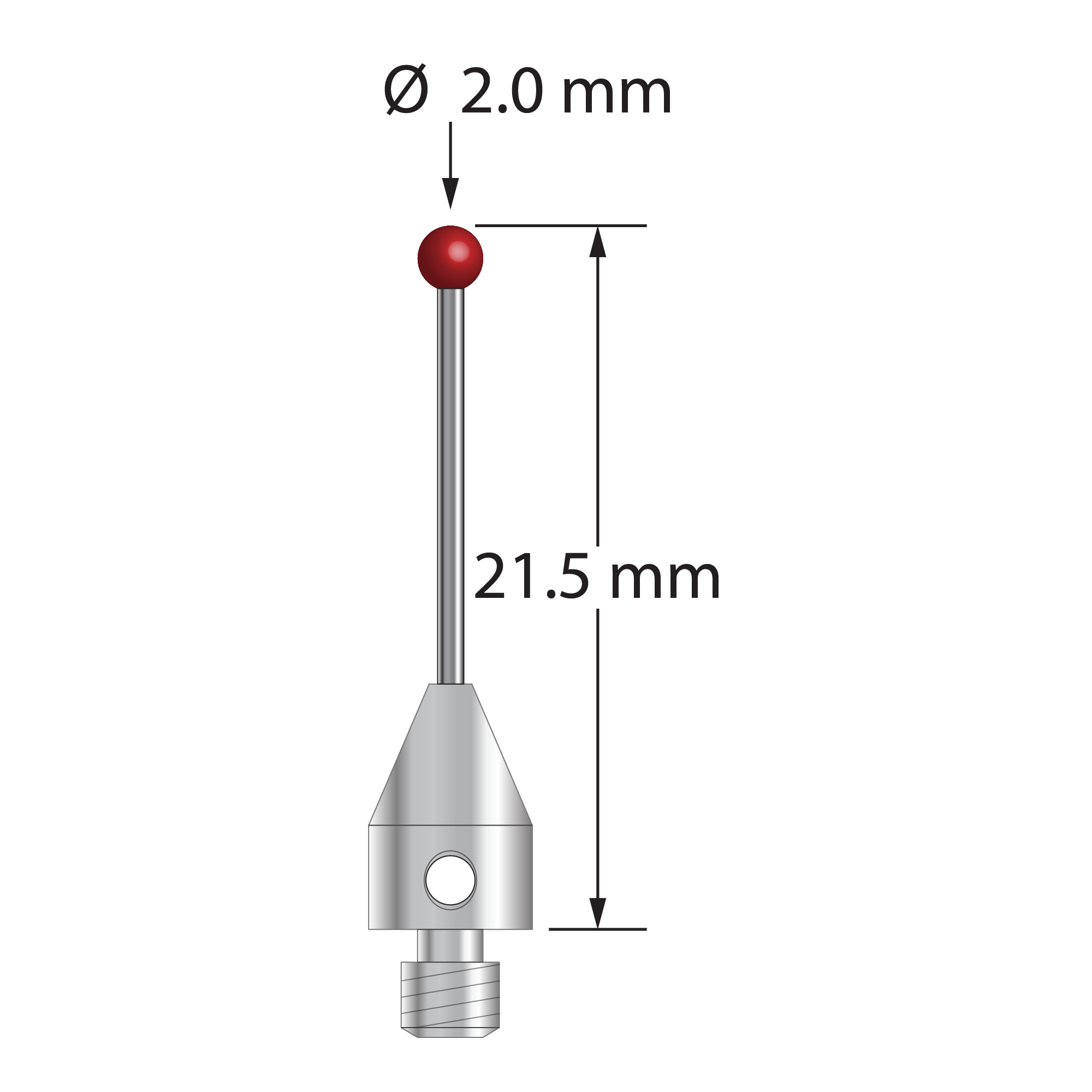

M3 stylus for Metrol probe system with 2.0 mm diameter ruby ball, 0.8 mm diameter carbide stem, and 5.0 mm diameter x 7.5 mm long stainless steel base. Overall stylus length is 21.5 mm. Stylus weight is 1.12 grams. Compare to Metrol F-R20T-205.

Dimensions

ball diameter: 2.0

base diameter: 5.0

length 1: 21.5

length 2: 14.0

stem diameter: 0.8

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
