MTL-1016-C

Name: MTL-1016-C
Brand: Q-Mark Manufacturing Inc.
Price: 90.0 USD
Availability: InStock

$90.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

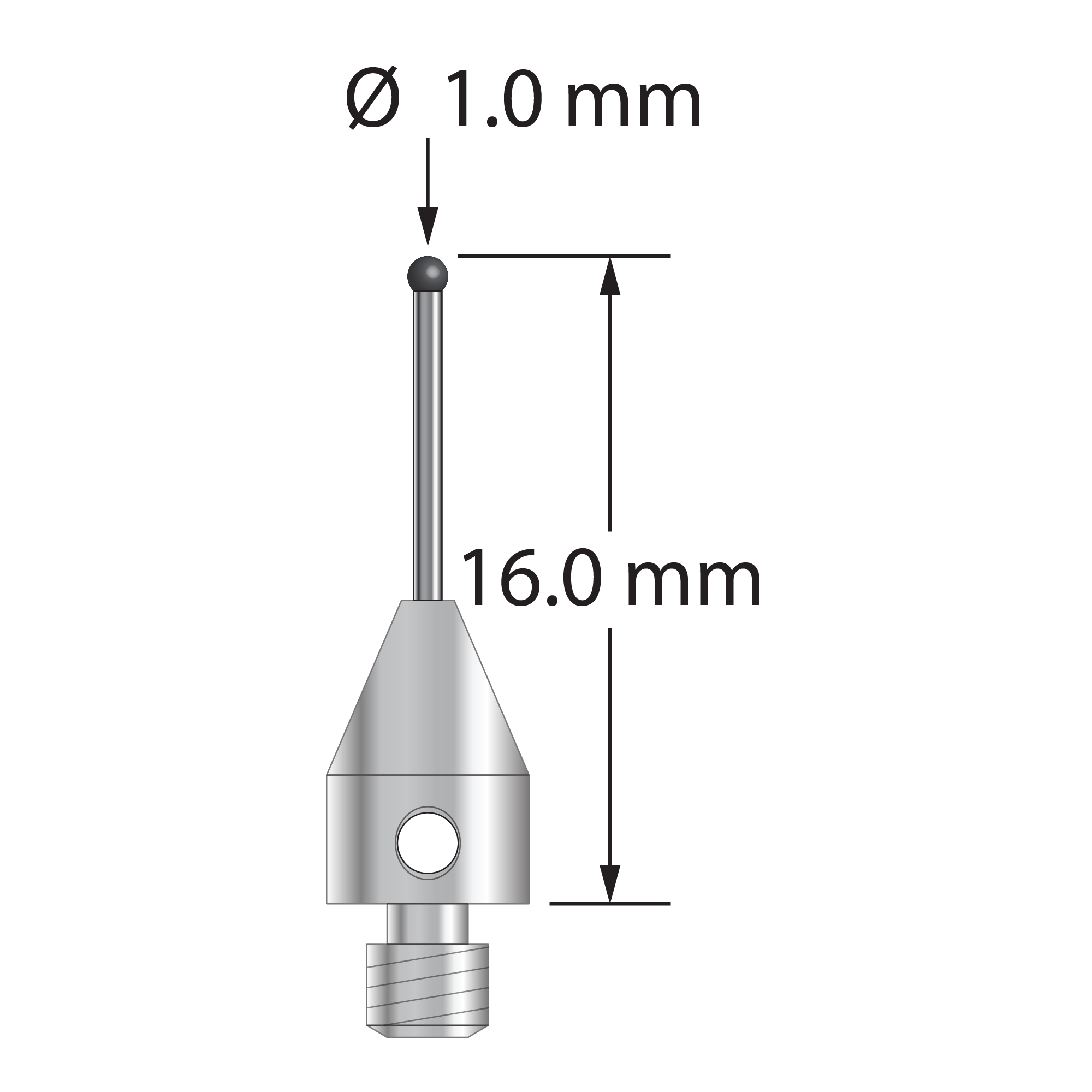

M3 stylus for Metrol probe system with 1.0 mm diameter carbide ball, 0.7 mm diameter carbide stem, and 5.0 mm diameter x 7.5 mm long stainless steel base. Overall stylus length is 16.0 mm. Stylus weight is 0.91 gram. Compare to Metrol F-T10H-155.

Dimensions

ball diameter: 1.0

base diameter: 5.0

length 1: 16.0

length 2: 8.5

stem diameter: 0.7

Materials

ball material: Carbide

base material: Stainless Steel

stem material: Carbide
