MSA-2534

Name: MSA-2534
Brand: Q-Mark Manufacturing Inc.
Price: 70.0 USD
Availability: InStock

$70.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

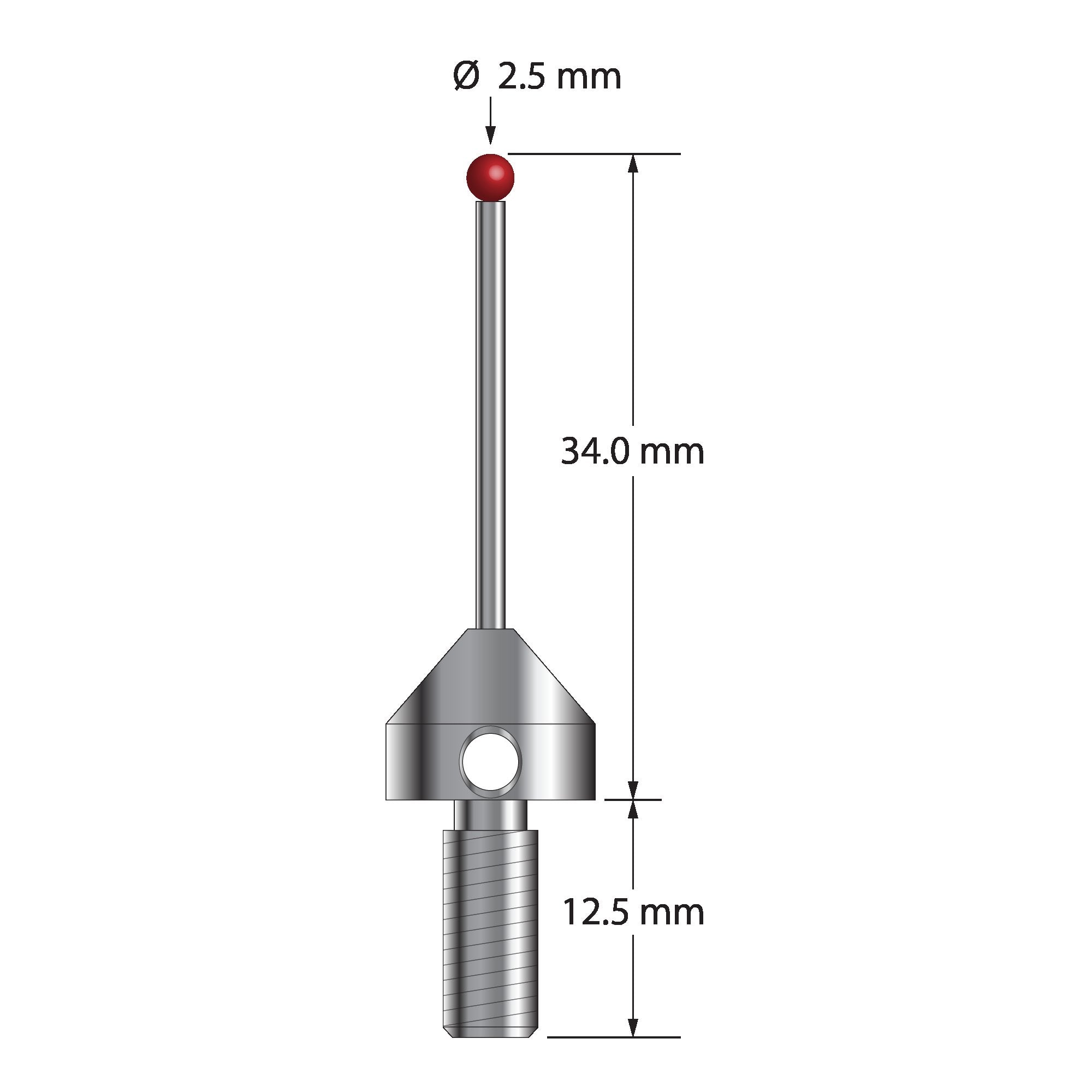

M5 stylus with 2.5 mm diameter ruby ball, 1.5 mm diameter carbide shaft, and 11.0 mm diameter x 9.0 mm long stainless steel base. Designed for use with slotted disks and clamping disks. Can be mounted directly to an M5 extension. Overall stylus length is 34.0 mm. Stylus weight is 6.12 grams. Compare to Zeiss 600342-8203-000.

Dimensions

ball diameter: 2.5

base diameter: 11.0

length 1: 34.0

stem diameter: 1.5

Materials

base material: Stainless Steel

stem material: Carbide
