CT-8088

Name: CT-8088
Brand: Q-Mark Manufacturing Inc.
Price: 160.0 USD
Availability: InStock

$160.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

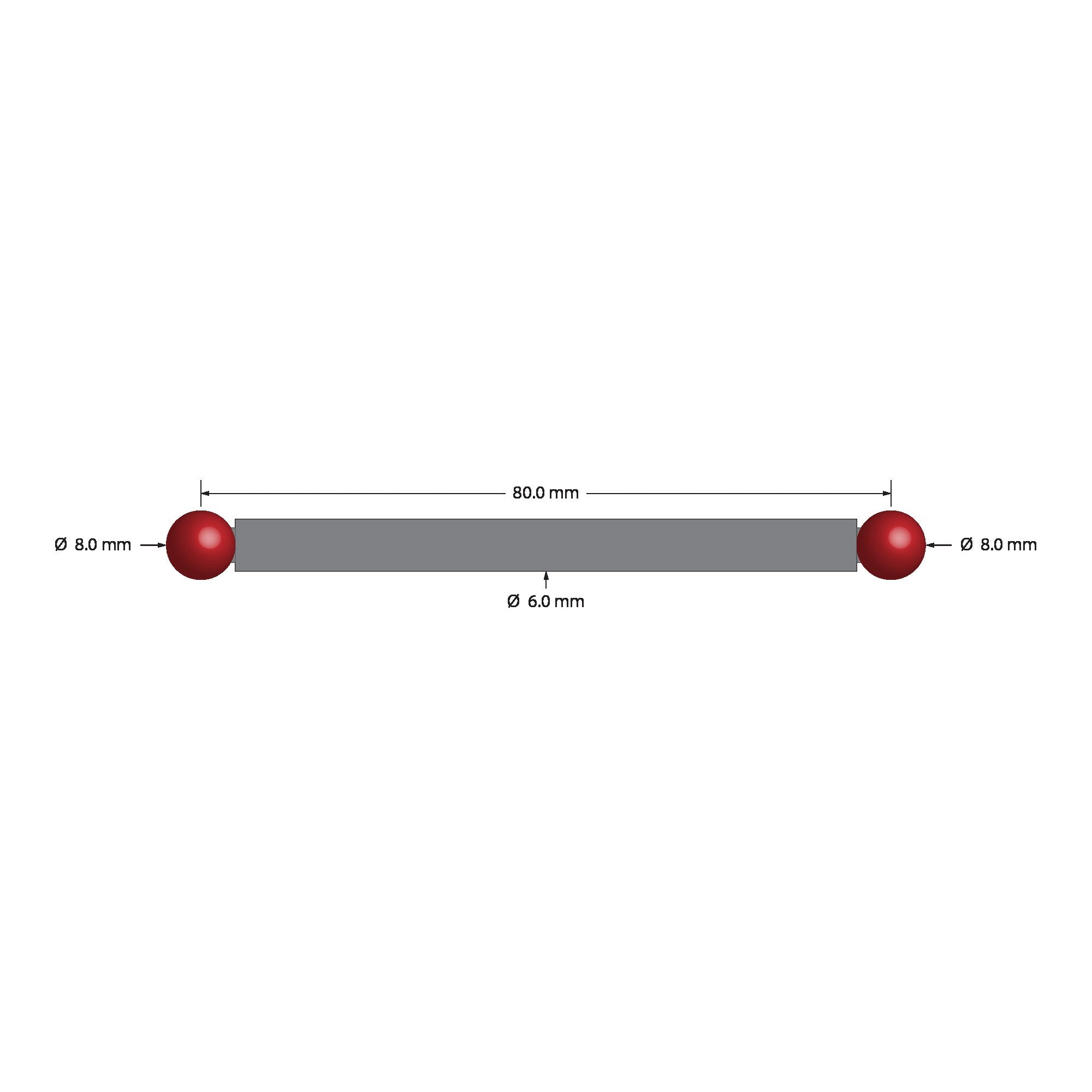

Double ended artifact used for computed tomography (CT) calibration. Two 8.0 mm diameter ruby spheres mounted on a 6.0 mm diameter carbon fiber strut. Center-to-center distance between spheres is 80.0 mm. Weight is 5.37 grams. Laboratory certifications for precise distance between spheres are not included.

Dimensions

ball diameter: 8.0

length 1: 80.0

stem diameter: 6.0

Materials

ball material: Ruby

stem material: Carbon Fiber
