ATG-9064.5-19-SN

Name: ATG-9064.5-19-SN
Brand: Q-Mark Manufacturing Inc.
Price: 135.0 USD
Availability: InStock

$135.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

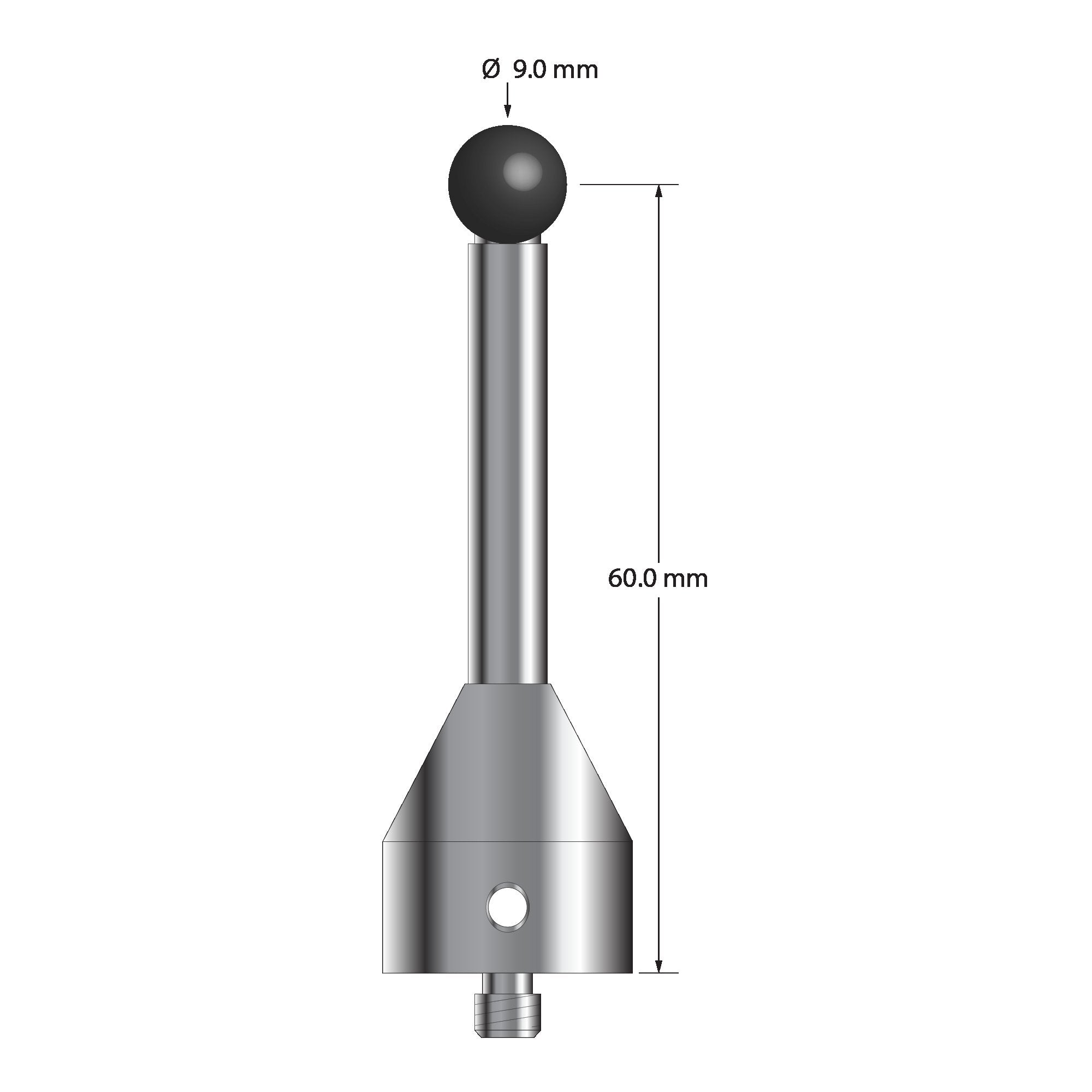

M5 stylus with 9.0 mm diameter silicon nitride ball, 6.0 mm diameter carbide stem, and 19.0 mm diameter x 22.0 mm long stainless steel base. Stylus length to ball center is 60.0 mm. Stylus weight is 38.90 grams.

Dimensions

ball diameter: 9.0

base diameter: 19.0

length 1: 64.5

length 2: 42.5

stem diameter: 6.0

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Carbide
