ATG-8079-G

Name: ATG-8079-G
Brand: Q-Mark Manufacturing Inc.
Price: 110.0 USD
Availability: InStock

$110.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

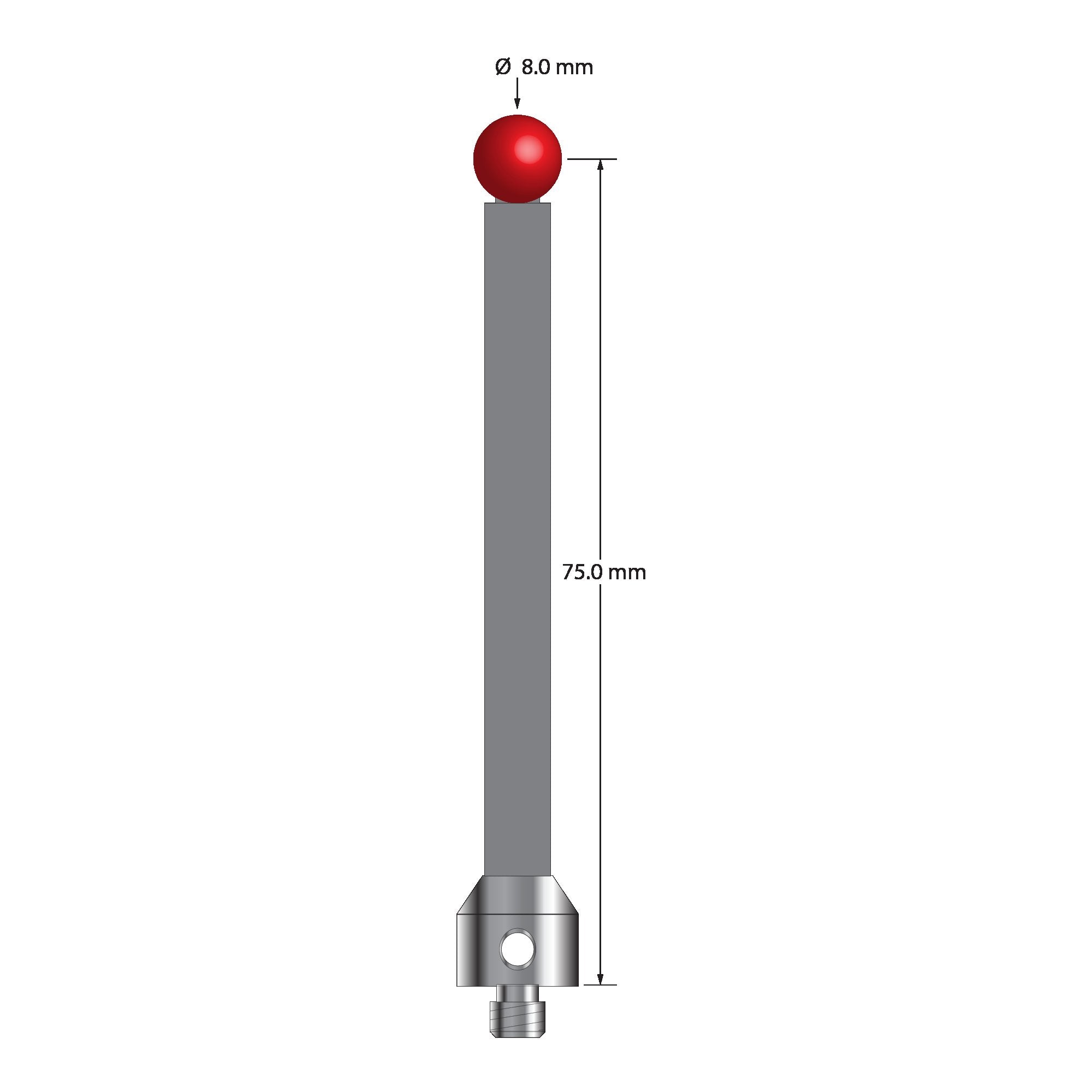

M5 stylus with 8.0 mm diameter ruby ball, 6.0 mm diameter carbon fiber stem, and 11.0 mm diameter x 10.0 mm long stainless steel base. Stylus length to ball center is 75.0 mm. Stylus weight is 8.92 grams. Compare to Renishaw A-5003-5251.

Dimensions

ball diameter: 8.0

base diameter: 11.0

length 1: 79.0

length 2: 69.0

stem diameter: 6.0

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbon Fiber
