ATG-80200-SN

Name: ATG-80200-SN
Brand: Q-Mark Manufacturing Inc.
Price: 220.0 USD
Availability: InStock

$220.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

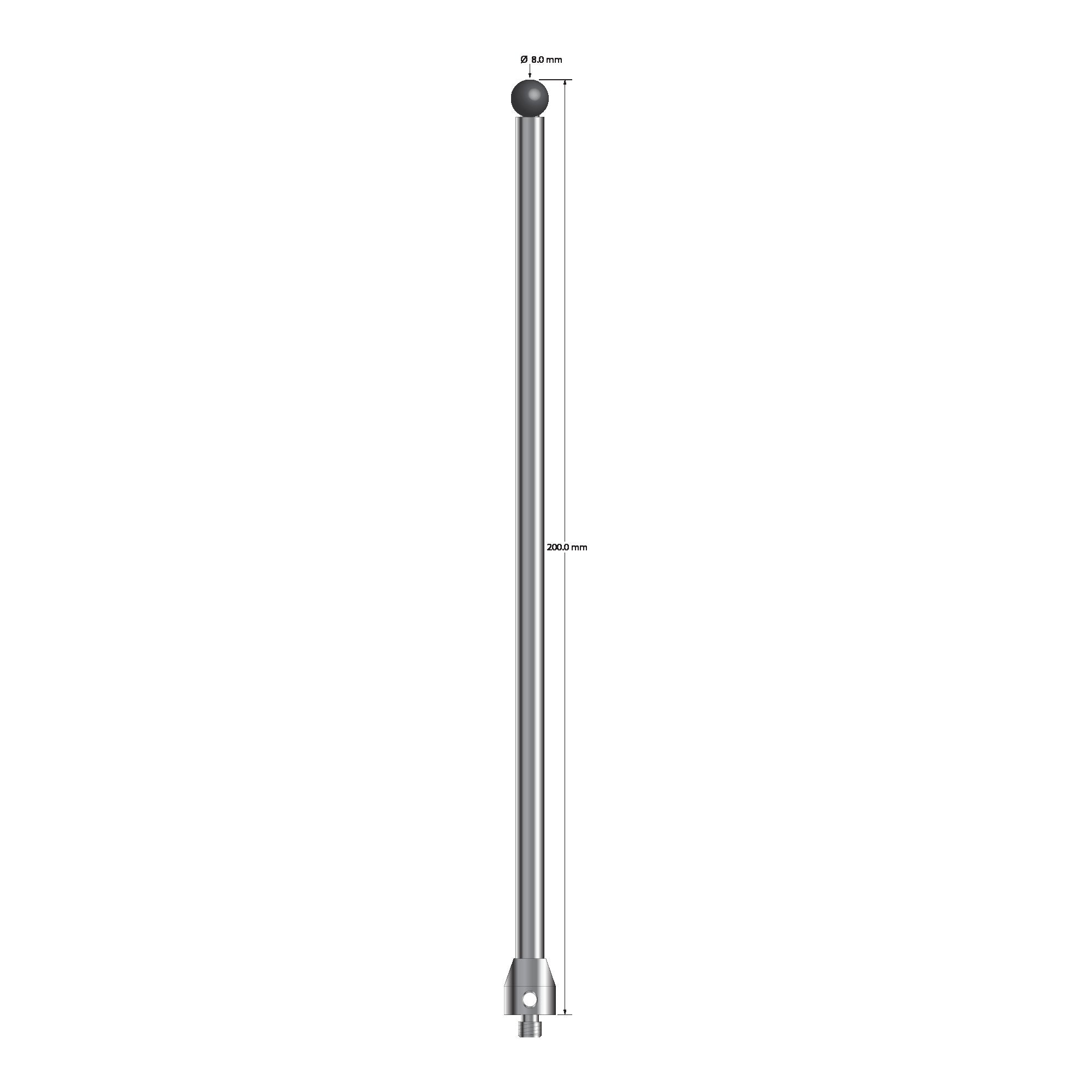

M5 stylus with 8.0 mm diameter silicon nitride ball, 6.0 mm diameter carbide stem, and 11.0 mm diameter x 13.0 mm long stainless steel base. Overall stylus length is 200.0 mm. Stylus weight is 81.89 grams. Compare to Zeiss 626115-0803-200.

Dimensions

ball diameter: 8.0

base diameter: 11.0

length 1: 200.0

length 2: 187.0

stem diameter: 6.0

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Carbide
