ATG-80175-TX

Name: ATG-80175-TX
Brand: Q-Mark Manufacturing Inc
Price: 230.0 USD
Availability: InStock

$230.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

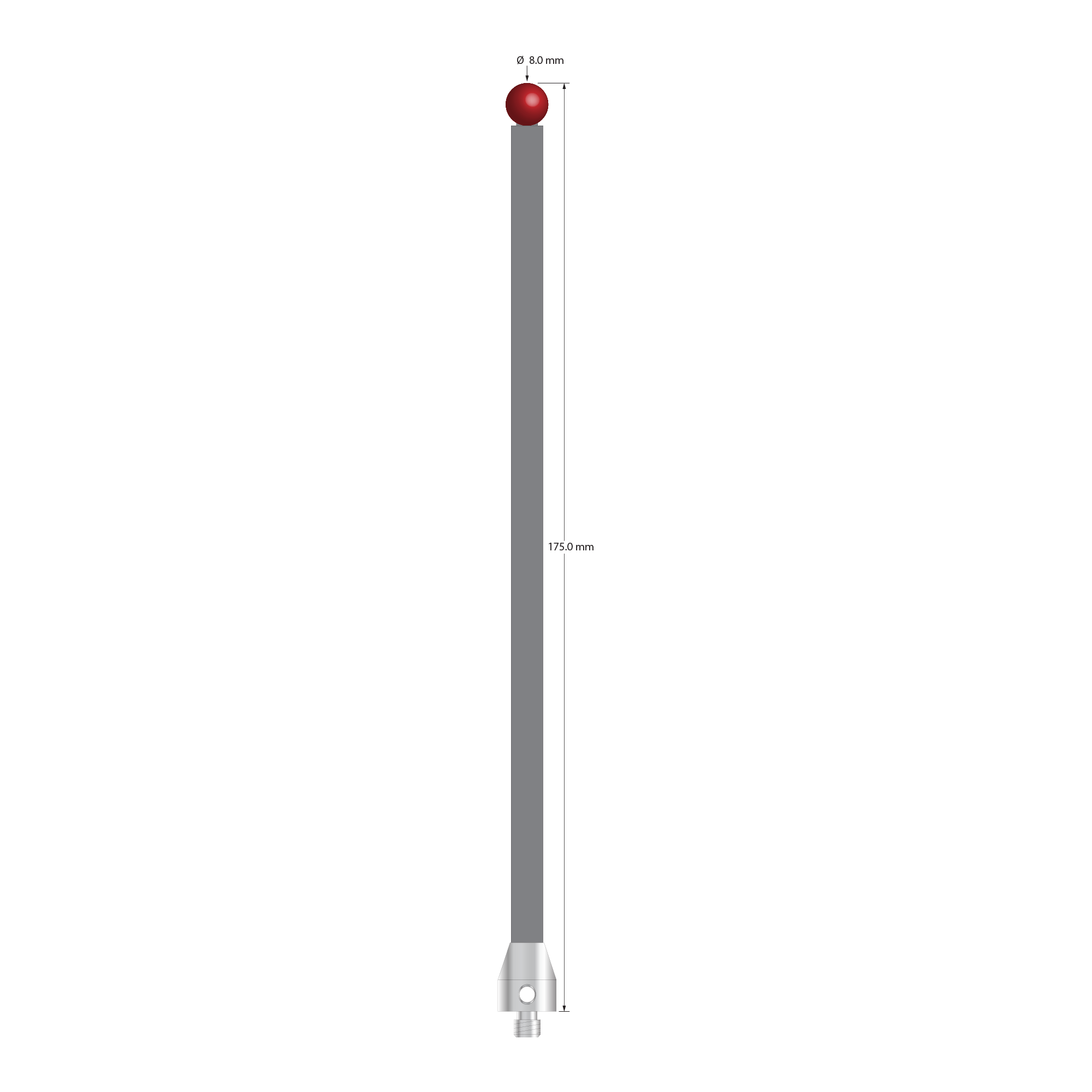

M5 stylus with 8.0 mm diameter ruby ball, 6.0 mm diameter Therm-X carbon fiber stem, and 11.0 mm diameter x 13.0 mm long titanium base. Overall stylus length is 175.0 mm. Stylus weight is 12.87 grams. Compare to Zeiss 626105-0820-175.

Dimensions

ball diameter: 8.0

base diameter: 11.0

length 1: 175.0

length 2: 162.0

stem diameter: 6.0

Materials

ball material: Ruby

base material: Titanium

stem material: Carbon Fiber
