ATG-80114-C-Z

Name: ATG-80114-C-Z
Brand: Q-Mark Manufacturing Inc.
Price: 155.0 USD
Availability: InStock

$155.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

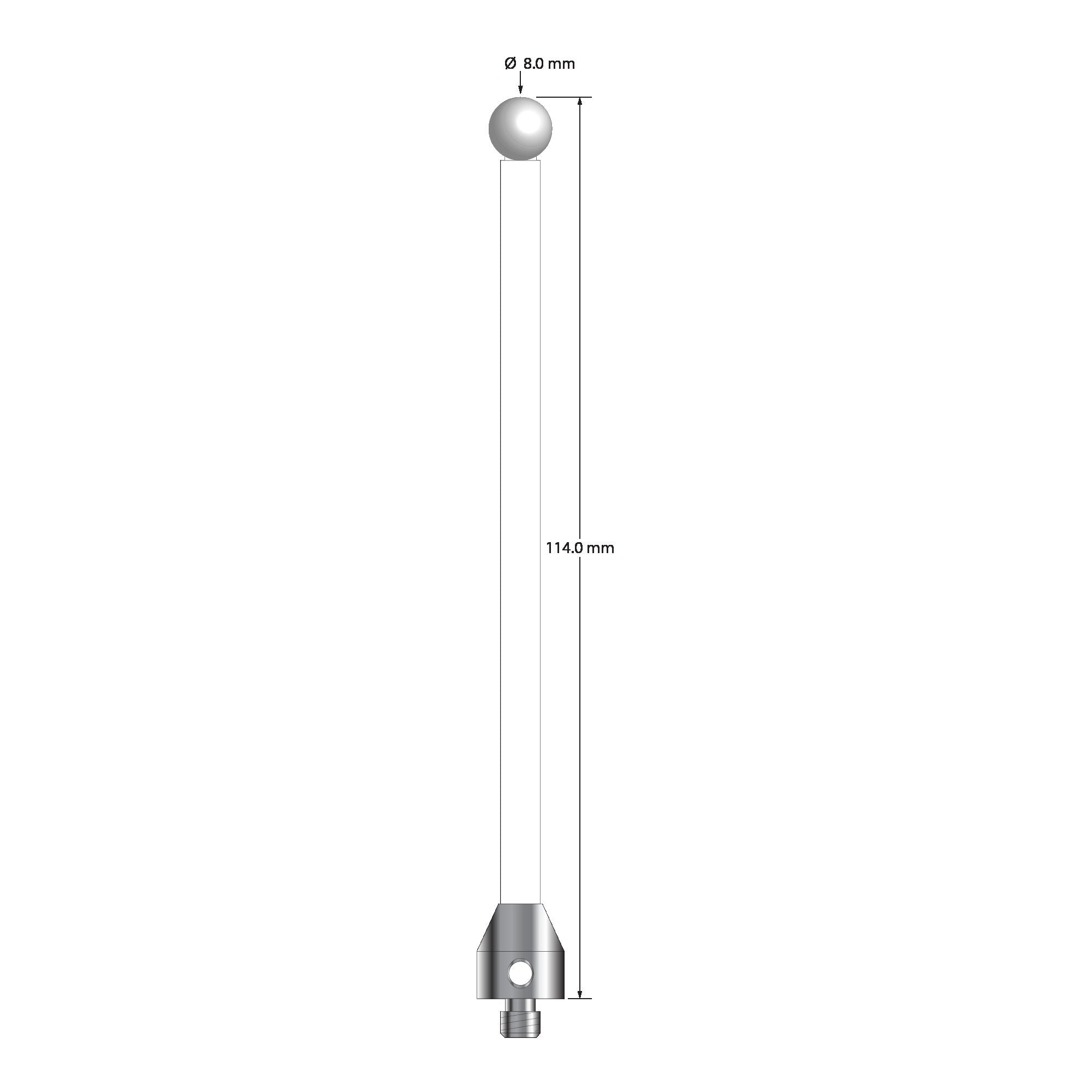

M5 stylus with 8.0 mm diameter zirconia ball, 5.0 mm diameter ceramic stem, and 11.0 mm diameter x 12.0 mm long anodized aluminum base. Overall stylus length is 114.0 mm. Stylus weight is 10.45 grams.

Dimensions

ball diameter: 8.0

base diameter: 11.0

length 1: 114.0

length 2: 102.0

stem diameter: 5.0

Materials

ball material: Zirconia

base material: Aluminum

stem material: Ceramic
