M5 stylus with 8.0 mm diameter ruby ball, 6.0 mm diameter carbide stem, and 11.0 mm diameter x 13.0 mm long stainless steel base. Overall stylus length is 100.0 mm. Stylus weight is 31.20 grams. Compare to Renishaw A-5555-0033 and Zeiss 602030-9017-000.
M5 stylus with 8.0 mm diameter ruby ball, 6.0 mm diameter carbide stem, and 11.0 mm diameter x 13.0 mm long stainless steel base. Overall stylus length is 100.0 mm. Stylus weight is 31.20 grams. Compare to Renishaw A-5555-0033 and Zeiss 602030-9017-000.

ATG-80100-DS6

$85.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

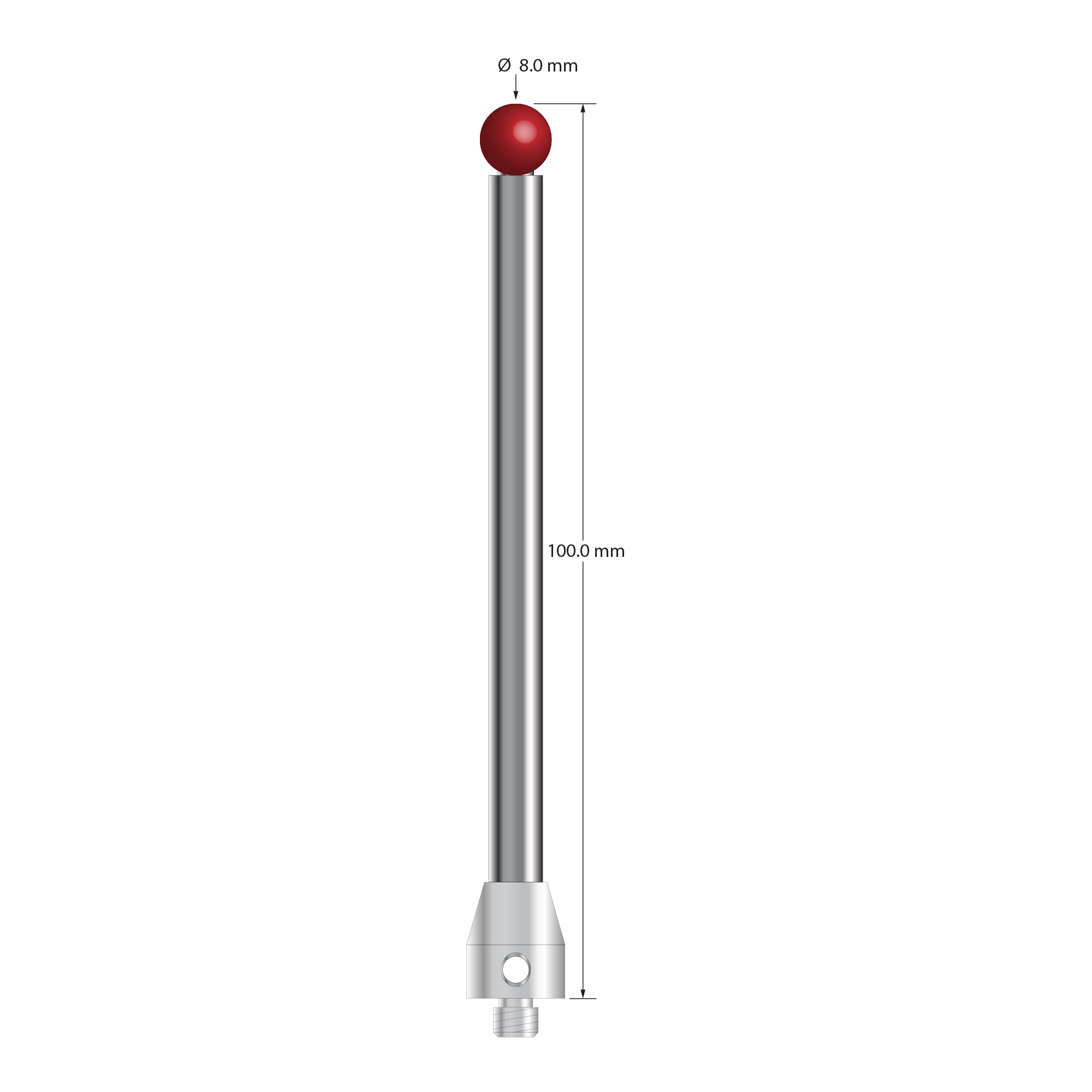

M5 stylus with 8.0 mm diameter ruby ball, 6.0 mm diameter carbide stem, and 11.0 mm diameter x 13.0 mm long stainless steel base. Overall stylus length is 100.0 mm. Stylus weight is 31.20 grams. Compare to Renishaw A-5555-0033 and Zeiss 602030-9017-000.

Dimensions

ball diameter: 8.0
base diameter: 11.0
length 1: 100.0
length 2: 88.0
stem diameter: 6.0

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
