Q-Mark Probe Styli: Orders Placed by Noon PT Ship Out Same-Day* | Ultra-Fast Service | Always Guaranteed | Proudly USA Made

ATG-7055-SN

Name: ATG-7055-SN
Brand: Q-Mark Manufacturing Inc.
Price: 94.0 USD
Availability: InStock

$94.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

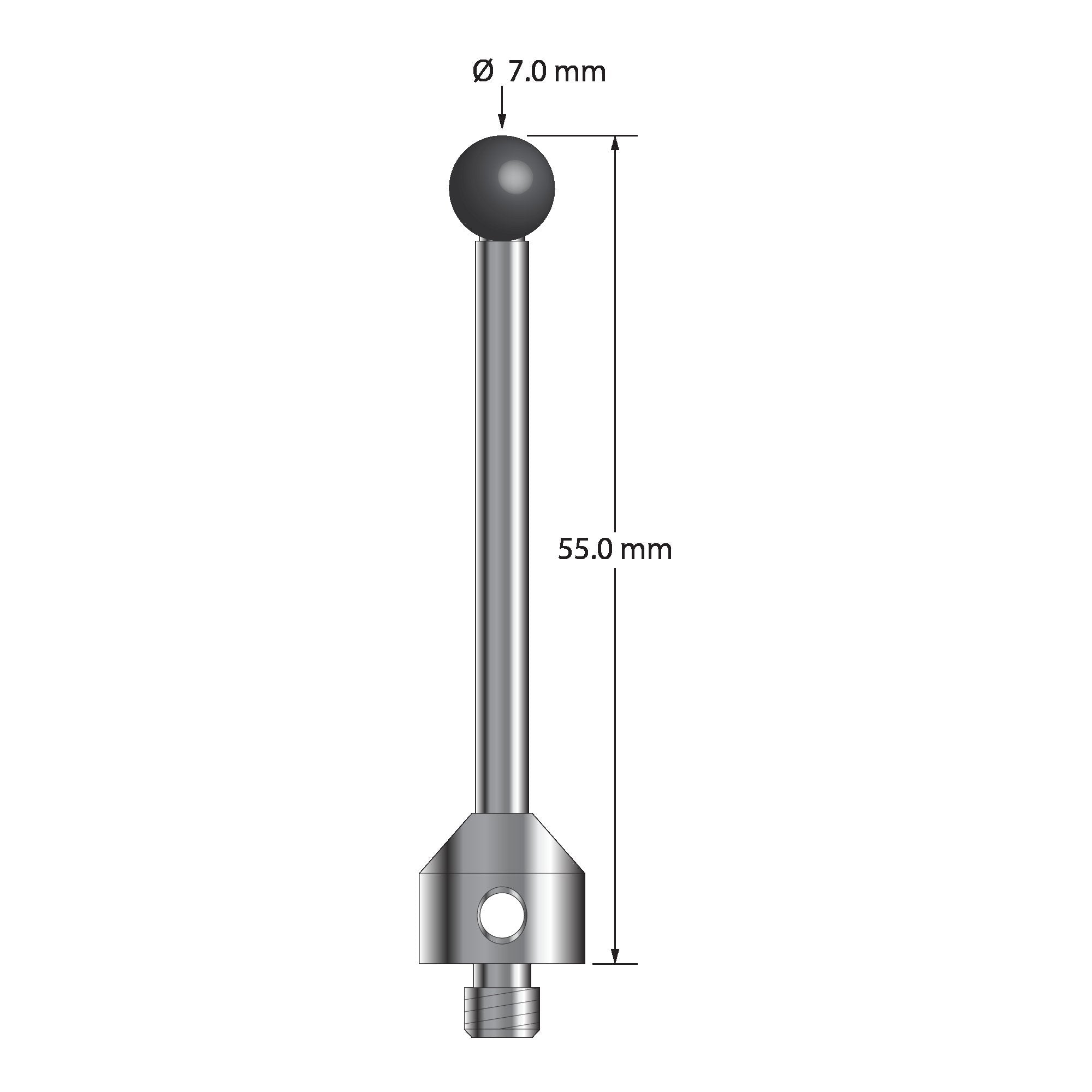

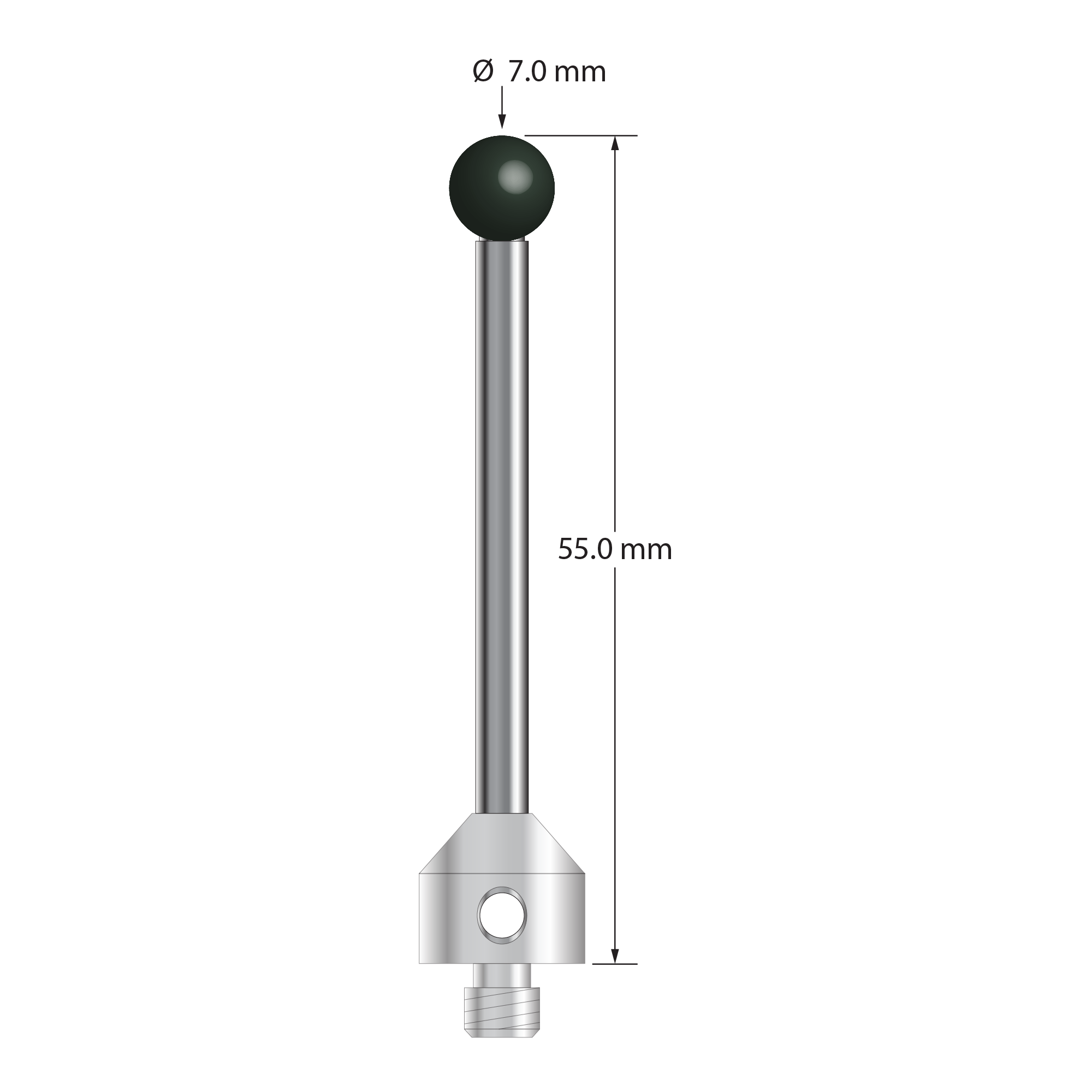

M5 stylus with 7.0 mm diameter silicon nitride ball, 3.5 mm diameter carbide stem, and 11.0 mm diameter x 10.0 mm long stainless steel base. Overall stylus length is 55.0 mm. Stylus weight is 11.97 grams. Compare to Renishaw A-5555-3796 and Zeiss 626115-0702-055.

Dimensions

ball diameter: 7.0

base diameter: 11.0

length 1: 55.0

length 2: 45.0

stem diameter: 3.5

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Carbide
