ATG-6054

Name: ATG-6054
Brand: Q-Mark Manufacturing Inc.
Price: 55.0 USD
Availability: InStock

$55.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

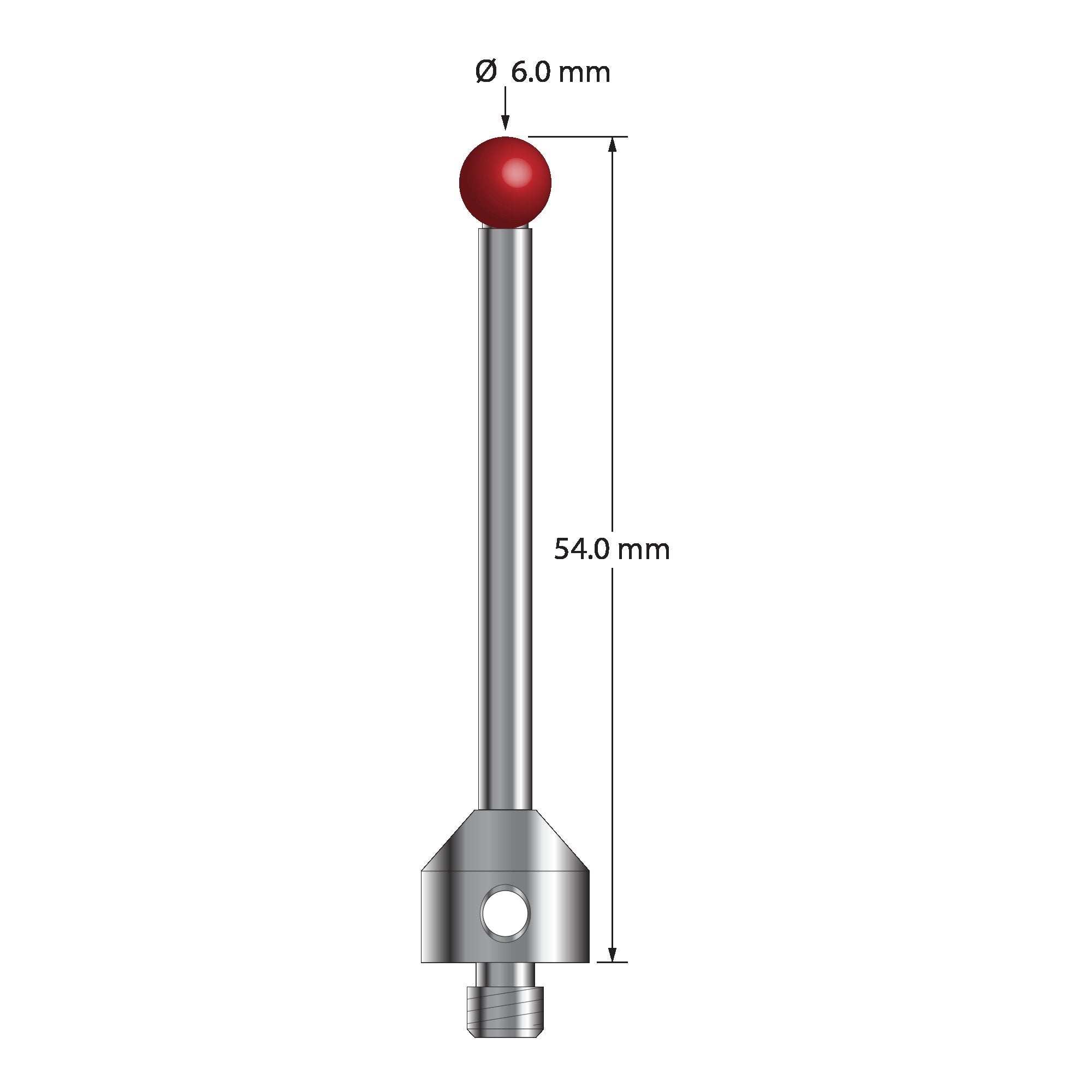

M5 stylus with 6.0 mm diameter ruby ball, 3.5 mm diameter carbide stem, and 11.0 mm x 10.0 mm long stainless steel base. Overall stylus length is 54.0 mm. Stylus weight is 12.61 grams. Compare to Zeiss 600342-8026-000 and Renishaw A-5555-0027.

Dimensions

ball diameter: 6.0

base diameter: 11.0

length 1: 54.0

length 2: 44.0

stem diameter: 3.5

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
