ATG-5077.5-DS3-Z

$130.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

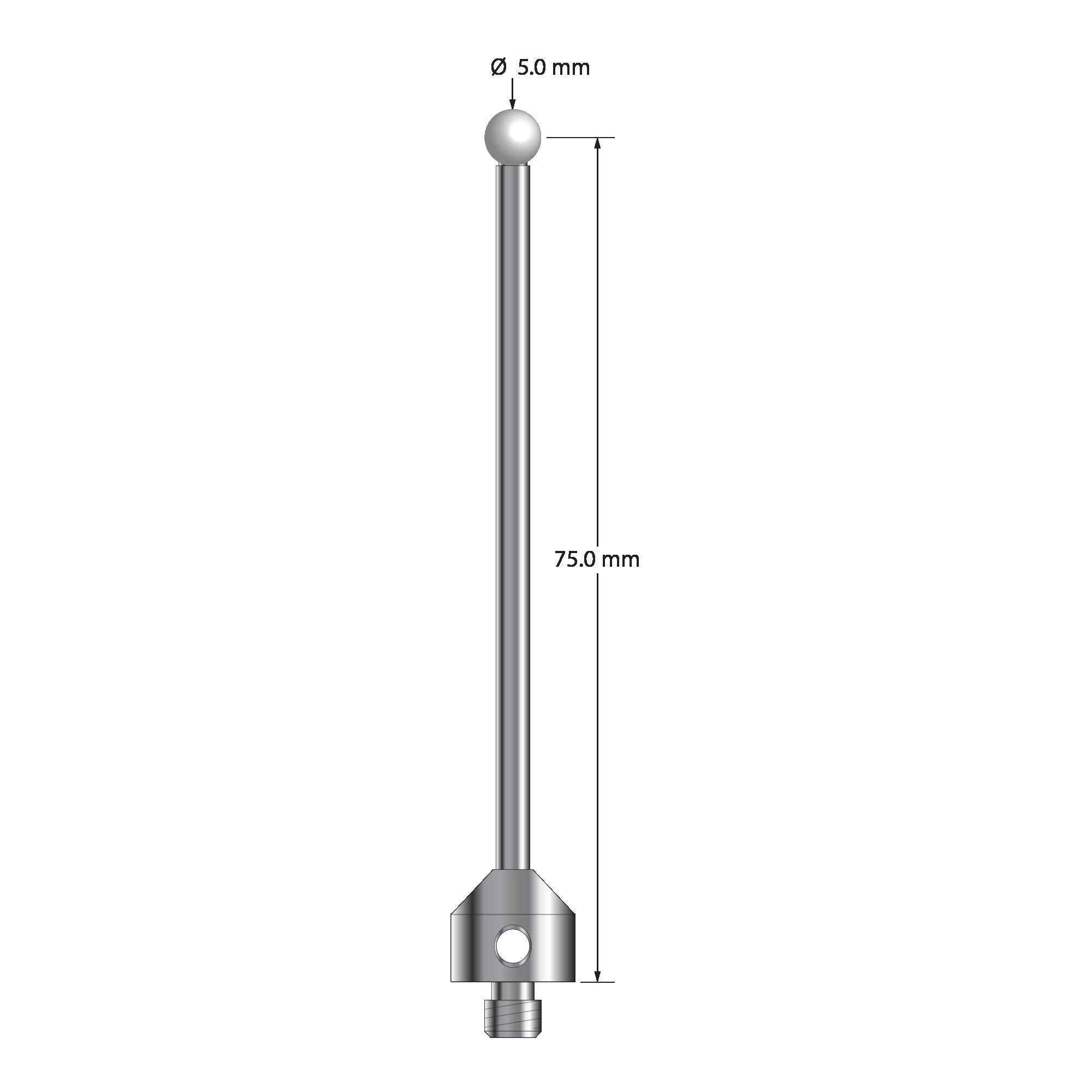

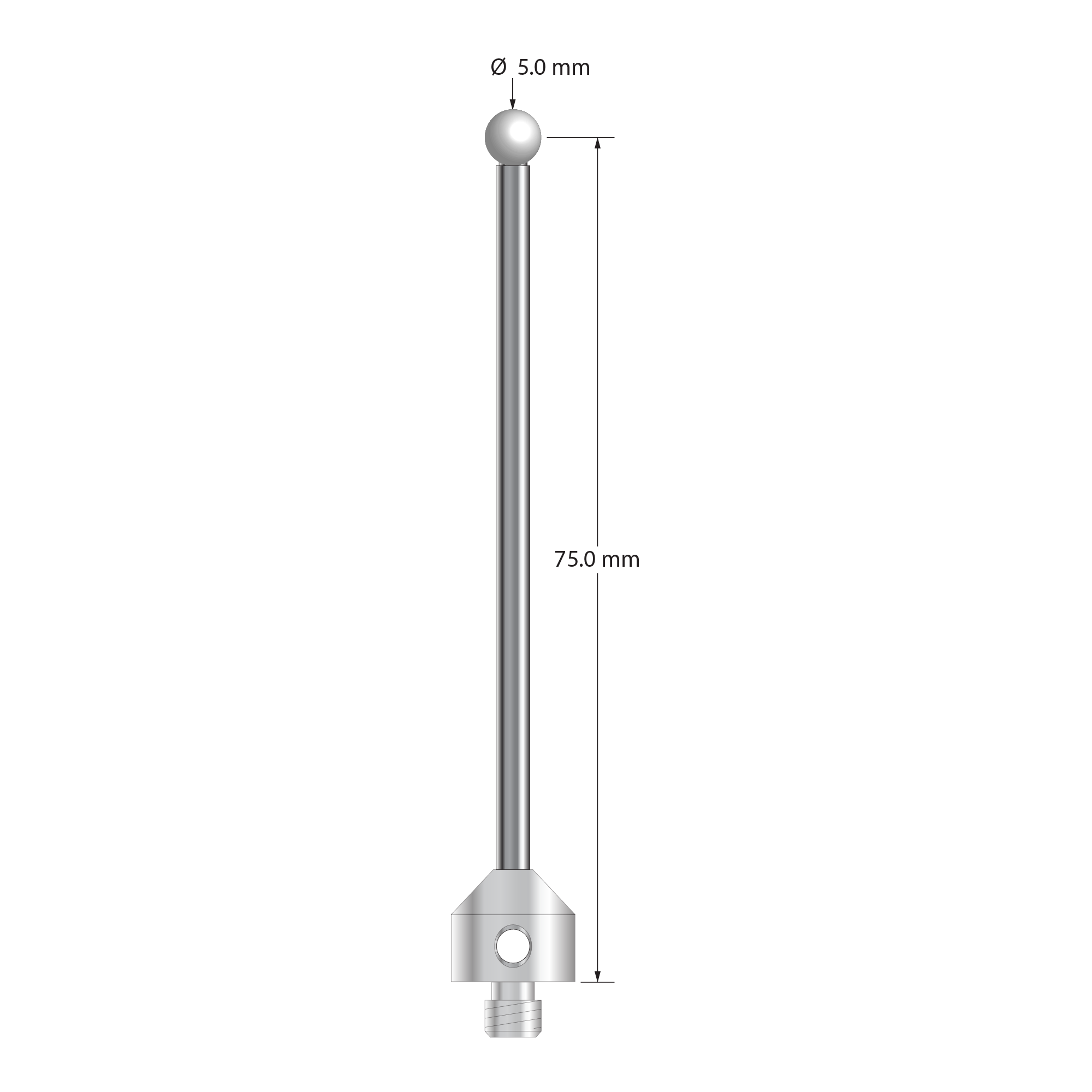

M5 stylus with 5.0 mm diameter zirconia ball, 3.0 mm diameter carbide stem, and 11.0 mm diameter x 10.0 mm long stainless steel base. Stylus length to ball center is 75.0 mm. Stylus weight is 11.63 grams.

Dimensions

ball diameter: 5.0
base diameter: 11.0
length 1: 77.5
length 2: 67.5
stem diameter: 3.0

Materials

ball material: Zirconia
base material: Stainless Steel
stem material: Carbide
