ATG-5053-C-SN

Name: ATG-5053-C-SN
Brand: Q-Mark Manufacturing Inc.
Price: 98.0 USD
Availability: InStock

$98.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

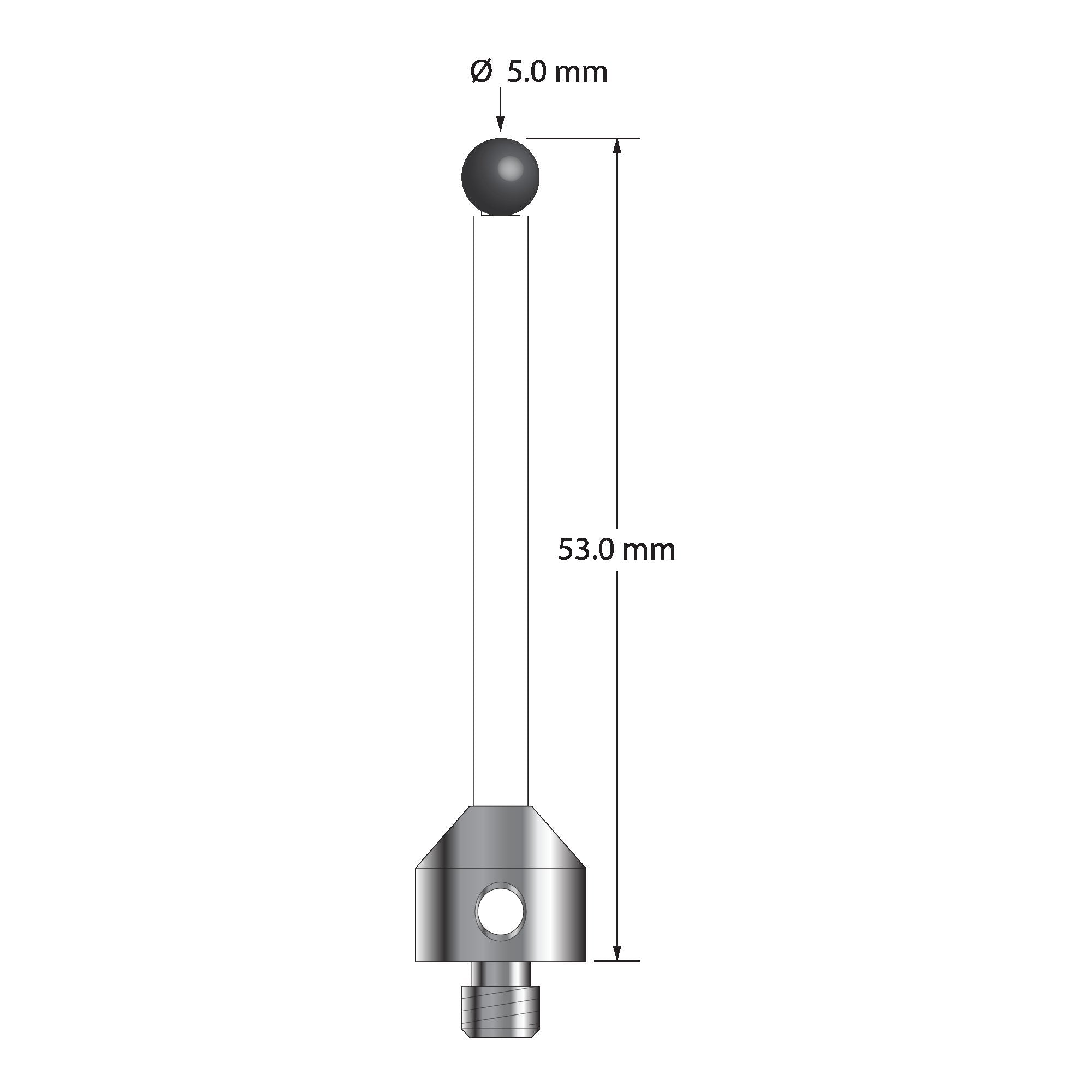

M5 stylus with 5.0 mm diameter silicon nitride ball, 3.5 mm diameter ceramic stem, and 11.0 mm diameter x 10.0 mm long hard anodized aluminum base. Overall stylus length is 53.0 mm. Stylus weight is 3.38 grams.

Dimensions

ball diameter: 5.0

base diameter: 11.0

length 1: 53.0

length 2: 43.0

stem diameter: 3.5

Materials

ball material: Silicon Nitride

base material: Aluminum

stem material: Ceramic
