Q-Mark Probe Styli: Orders Placed by Noon PT Ship Out Same-Day* | Ultra-Fast Service | Always Guaranteed | Proudly USA Made

ATG-5030

Name: ATG-5030
Brand: Q-Mark Manufacturing Inc.
Price: 85.0 USD
Availability: InStock

$85.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

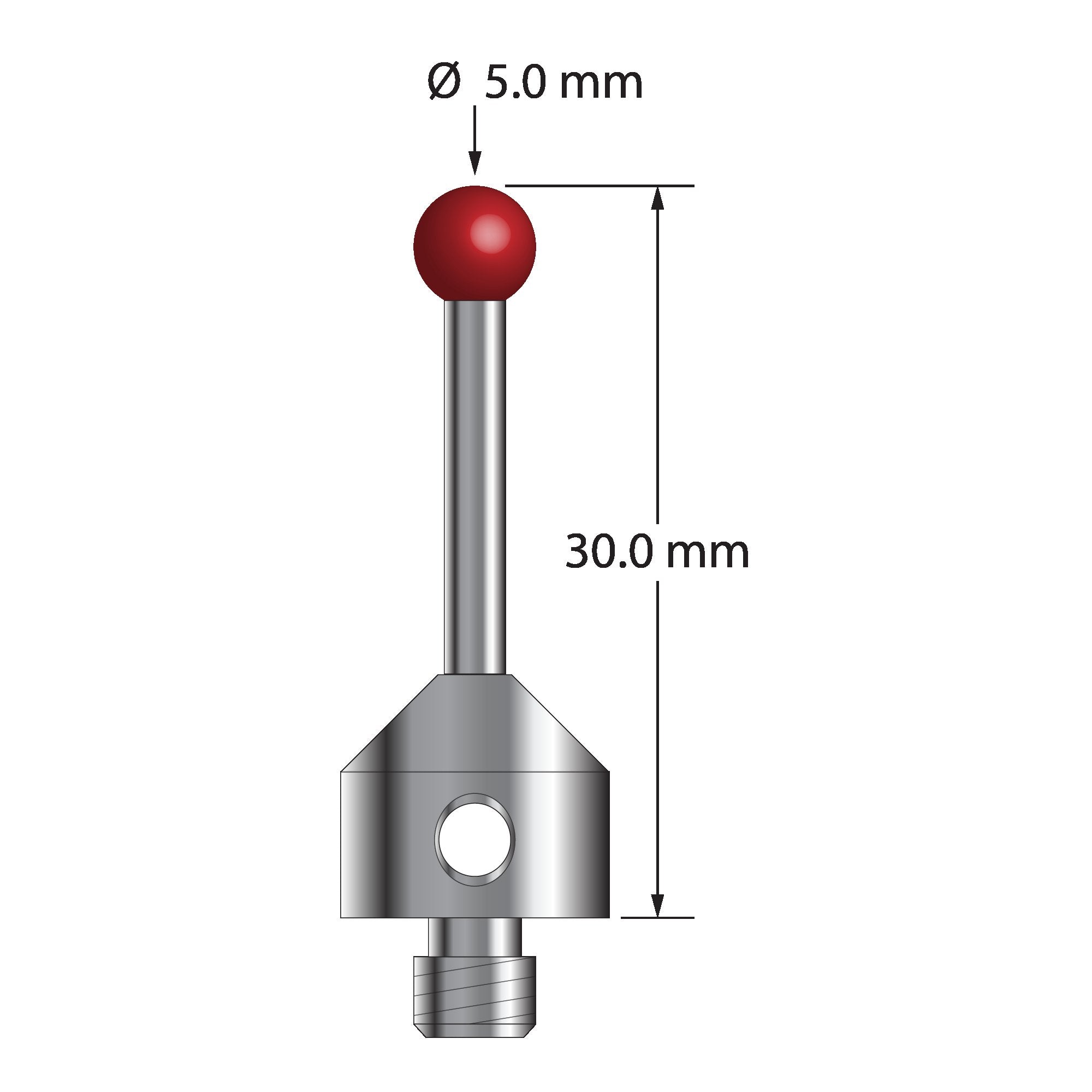

M5 stylus with 5.0 mm diameter ruby ball, 2.5 mm diameter carbide stem, and 11.0 mm diameter x 10.0 mm long stainless steel base. Overall stylus length is 30.0 mm. Stylus weight is 7.37 grams.

Dimensions

ball diameter: 5.0

base diameter: 11.0

length 1: 30.0

length 2: 20.0

stem diameter: 2.5

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide

{% for machine in Machines.userdata.machines %} {% if machine.parts contains title %}

Also compatible with {{machine.make}} {{machine.model}} {{machine.probe_head}}

{% for part in machine.parts %} {% assign the_handle = part | handle %} {% if the_handle != handle %}

{% endif %} {% endfor %}

{% endif %}

{% endfor %}

ATG-5030

Dimensions

Materials

Also compatible with {{machine.make}} {{machine.model}} {{machine.probe_head}}

Added to your cart:

Request for Quote

ATG-5030 Favorite {% assign in_list = false %} {% for item in items %} {% if item.handle == "atg-5030" %} {% assign in_list = true %} {% break %} {% endif %} {% endfor %} {% if in_list %} {% else %} {% endif %}

Dimensions

Materials

Also compatible with {{machine.make}} {{machine.model}} {{machine.probe_head}}

Request for Quote

ATG-5030
