ATG-4077-DS3-Z

Name: ATG-4077-DS3-Z
Brand: Q-Mark Manufacturing Inc.
Price: 130.0 USD
Availability: InStock

$130.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

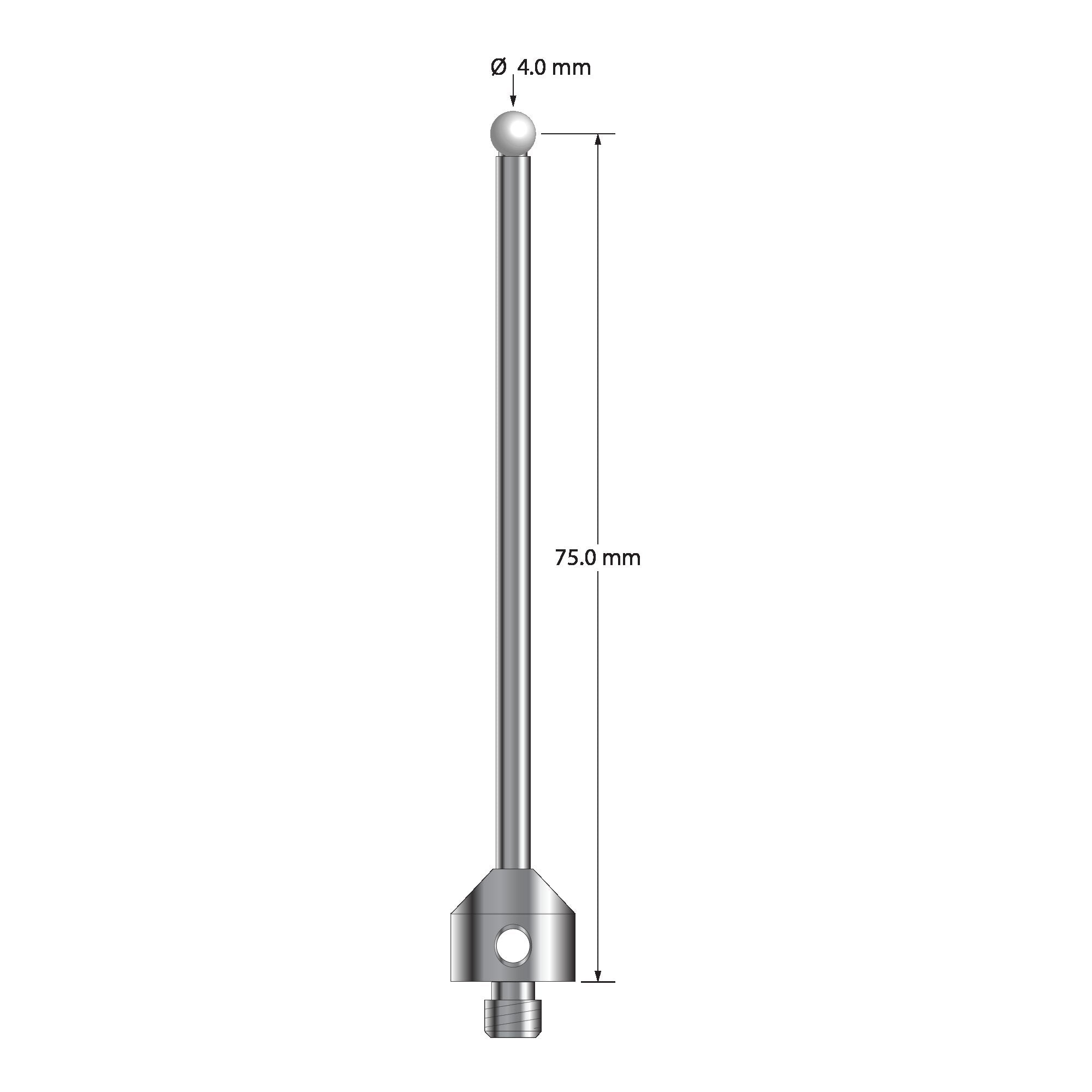

M5 stylus with 4.0 mm diameter zirconia ball, 3.0 mm diameter carbide stem, and 11.0 mm diameter x 10.0 mm long stainless steel base. Stylus length to ball center is 75.0 mm. Stylus weight is 11.44 grams.

Dimensions

ball diameter: 4.0

base diameter: 11.0

length 1: 77.0

length 2: 67.0

stem diameter: 3.0

Materials

ball material: Zirconia

base material: Stainless Steel

stem material: Carbide
