ATG-4033.5-SN

$83.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

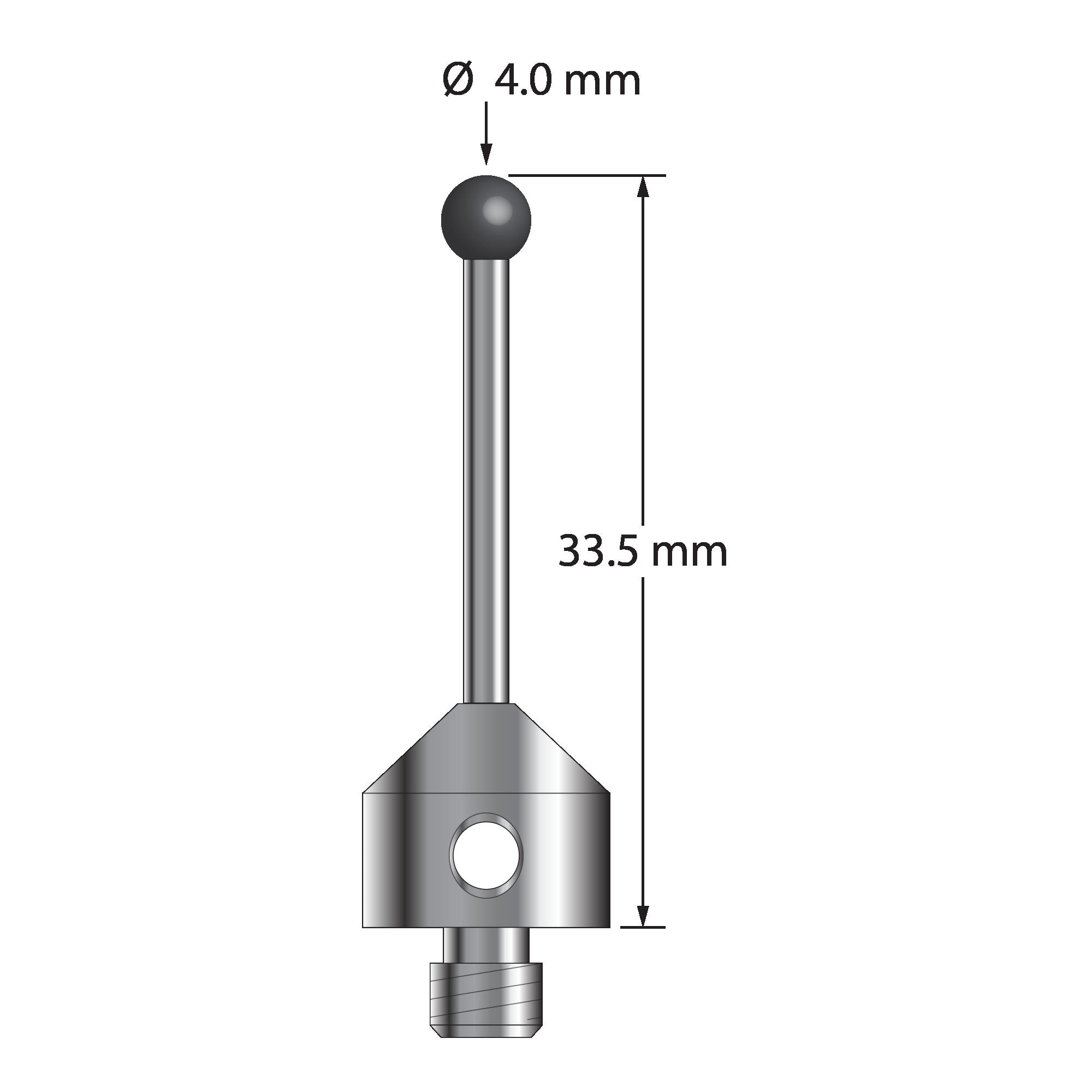

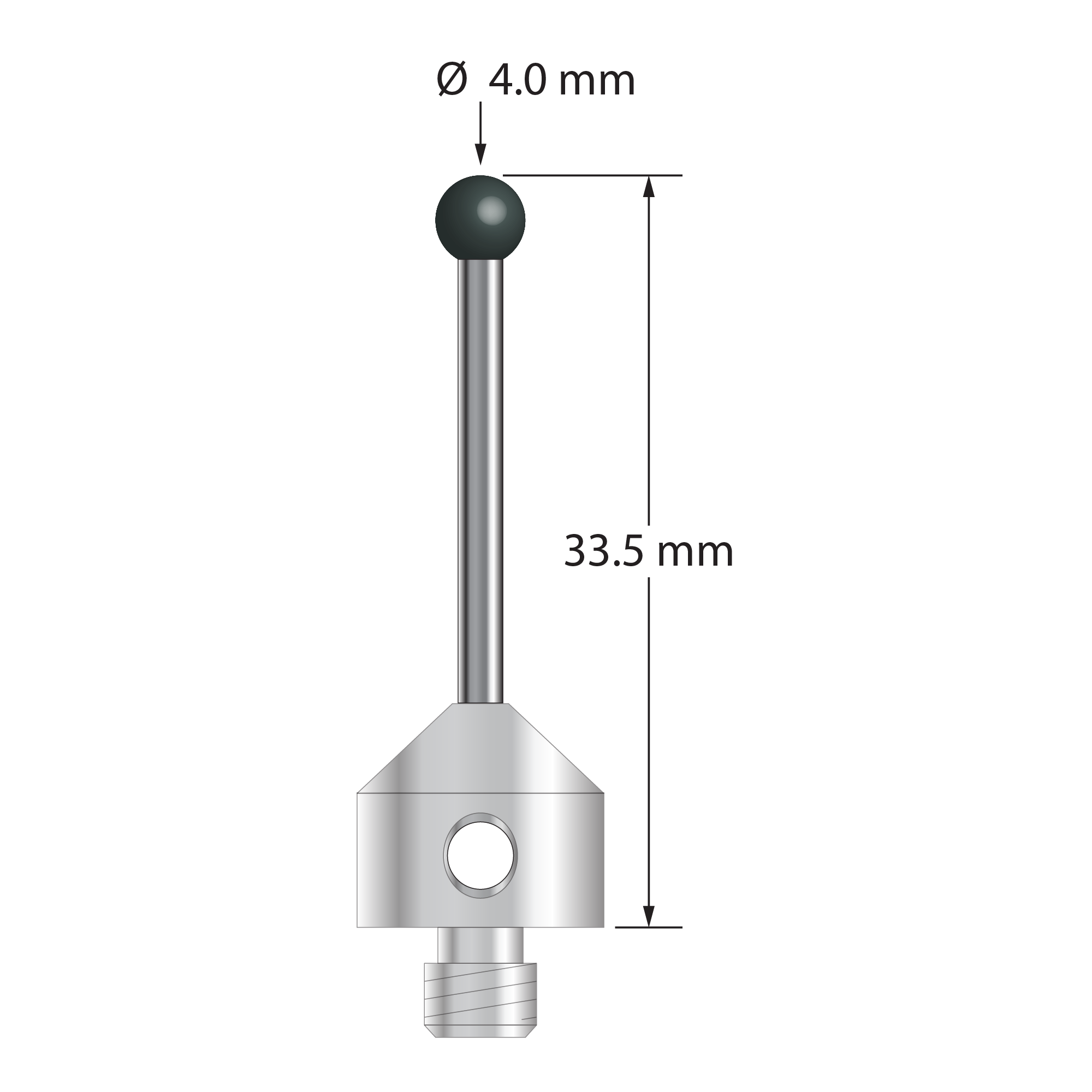

M5 stylus with 4.0 mm diameter silicon nitride ball, 2.0 mm diameter carbide stem, and 11.0 mm diameter x 10.0 mm long stainless steel base.  Overall stylus length is 33.5 mm.  Stylus weight is 6.80 grams.  Compare to Zeiss 626115-0400-034 and Renishaw A-5555-3788.

Dimensions

ball diameter: 4.0
base diameter: 11.0
length 1: 33.5
length 2: 23.5
stem diameter: 2.0

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
